Pinpoint Test E: The Power Seat Does Not Move Horizontally/Vertically

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

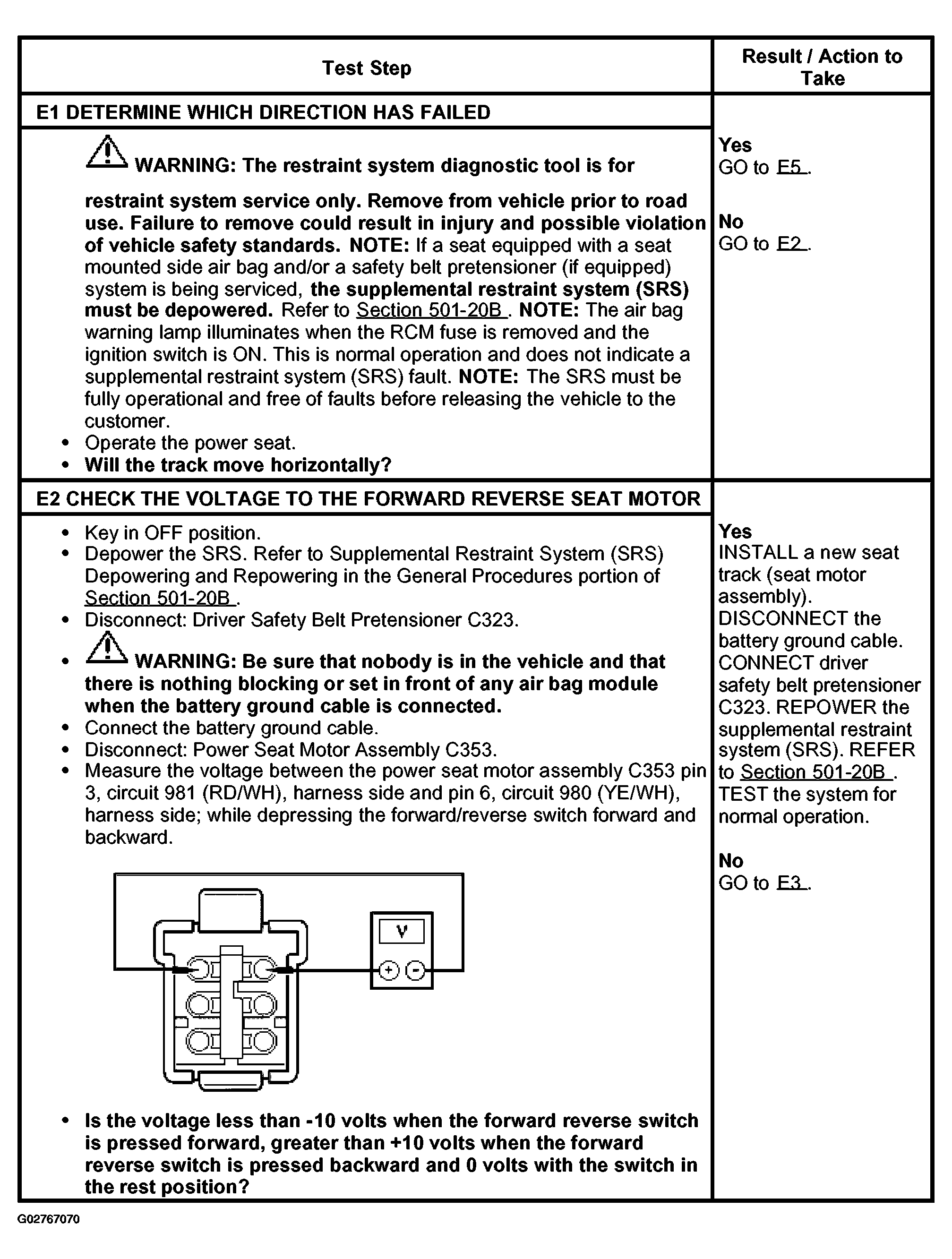

Fig 1: Pinpoint Test E: Power Seat Does Not Move Horizontally (Step E1)

Courtesy of FORD MOTOR CO.

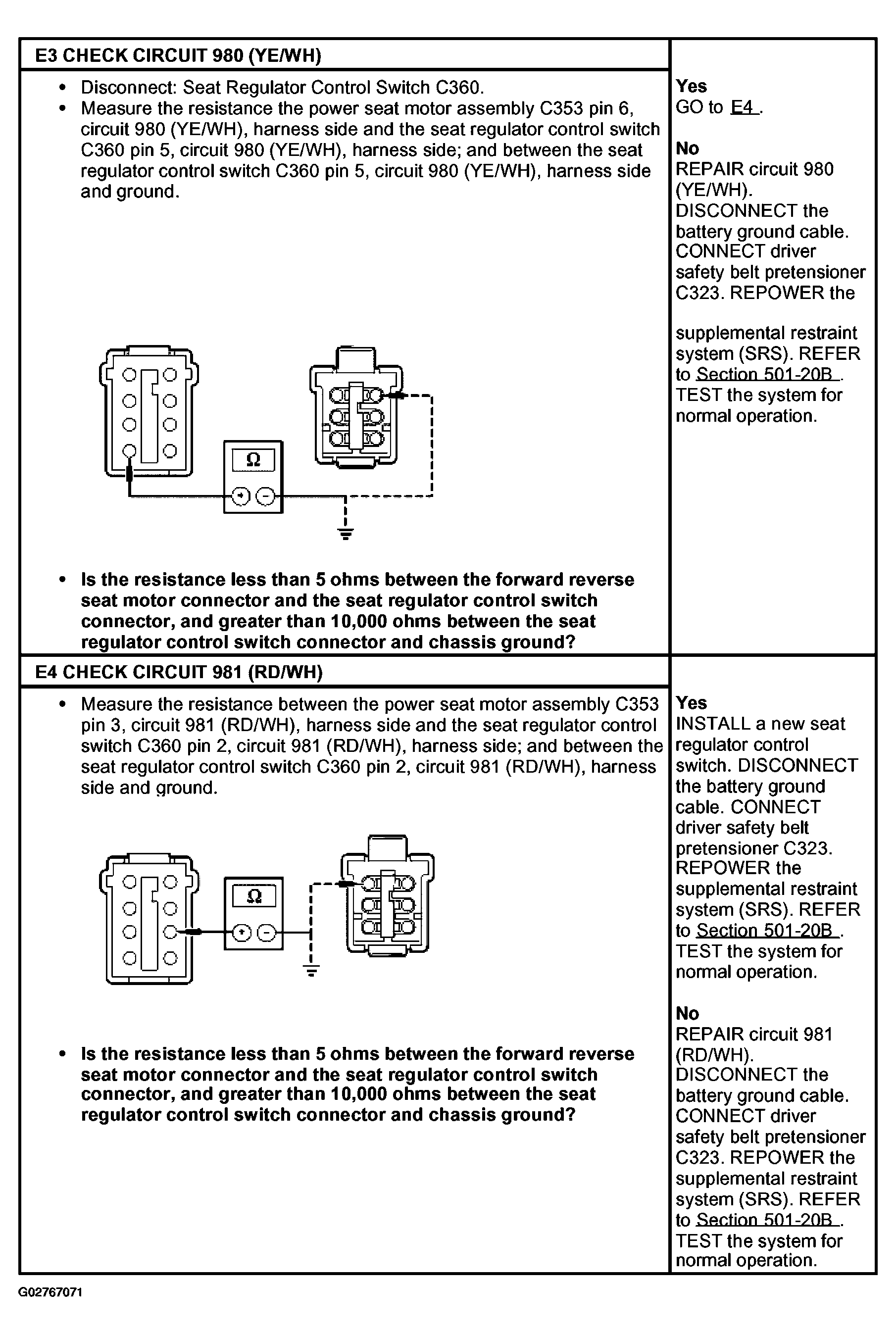

Fig 2: Pinpoint Test E: Power Seat Does Not Move Horizontally (Steps E2-E3)

Courtesy of FORD MOTOR CO.

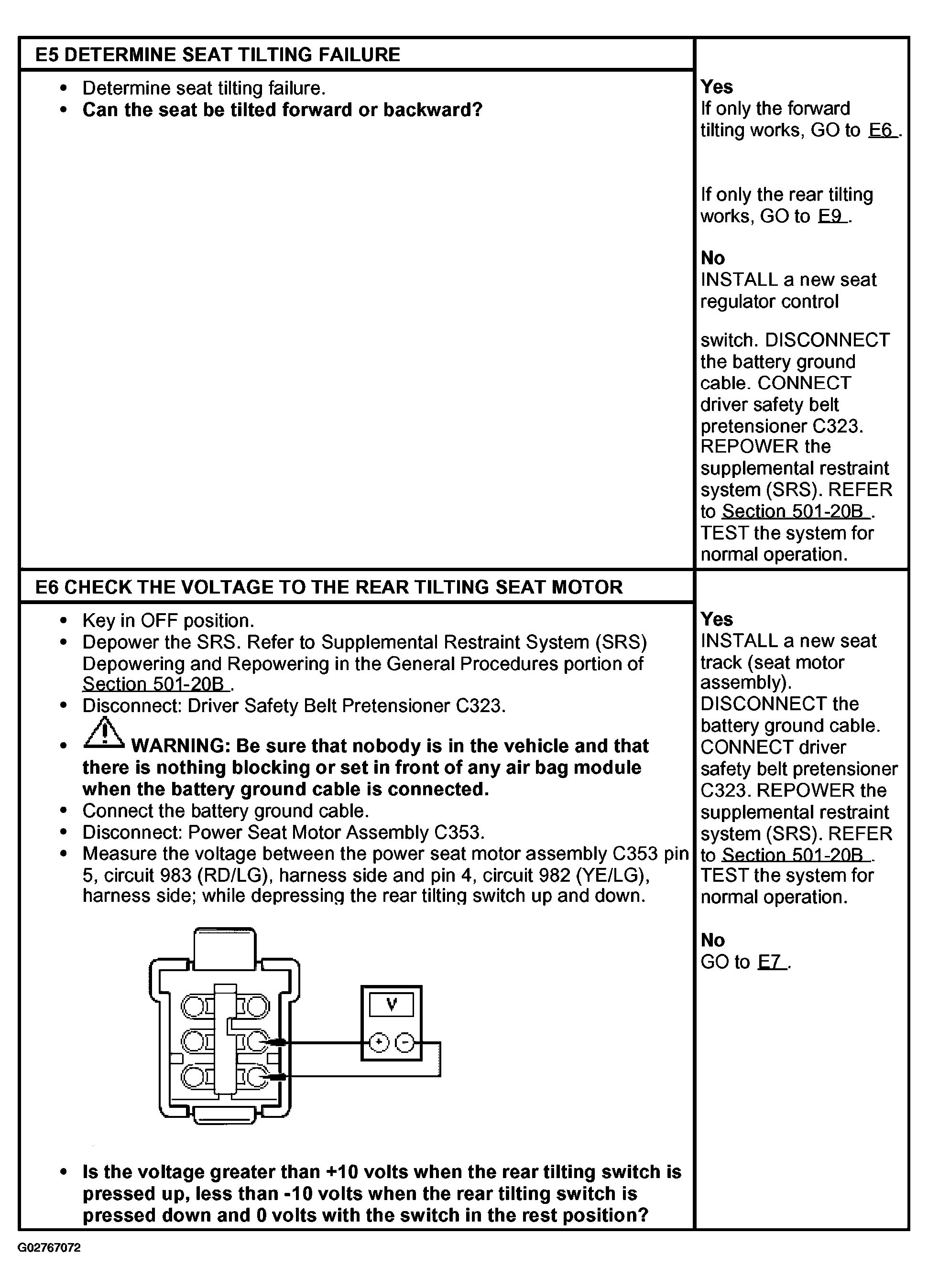

Fig 3: Pinpoint Test E: Power Seat Does Not Move Horizontally (Steps E4-E5)

Courtesy of FORD MOTOR CO.

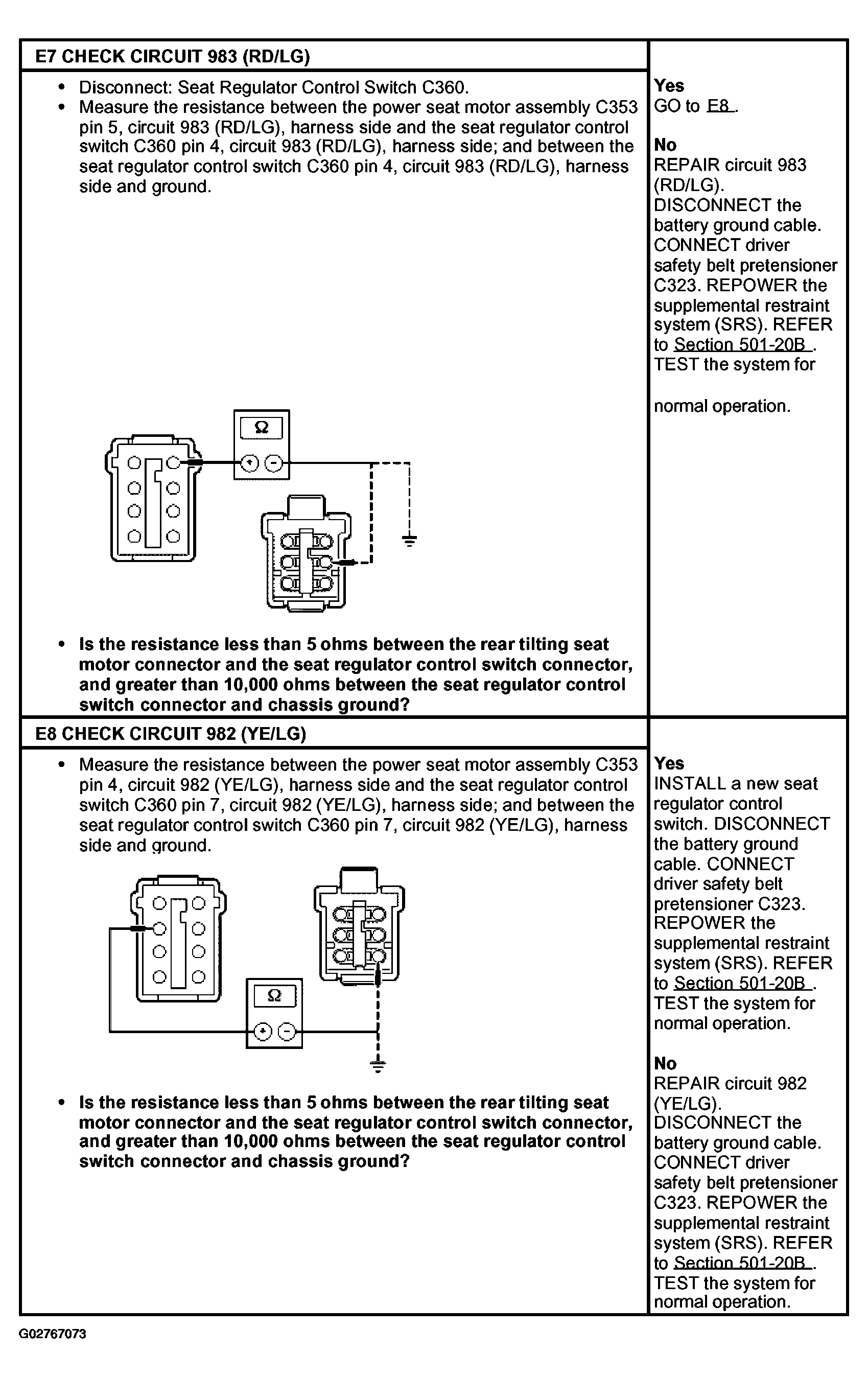

Fig 4: Pinpoint Test E: Power Seat Does Not Move Horizontally (Steps E6-E7)

Courtesy of FORD MOTOR CO.

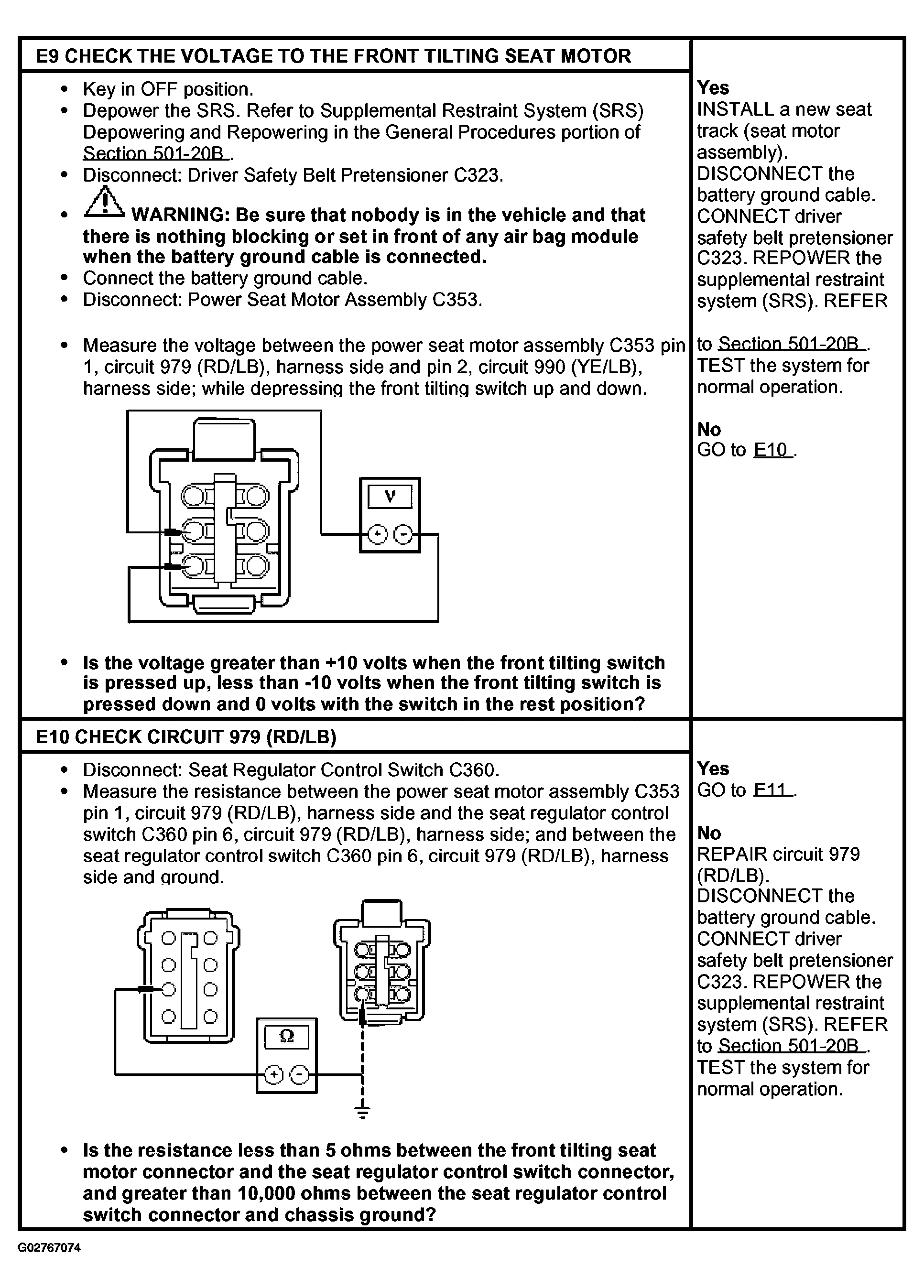

Fig 5: Pinpoint Test E: Power Seat Does Not Move Horizontally (Steps E8-E9)

Courtesy of FORD MOTOR CO.

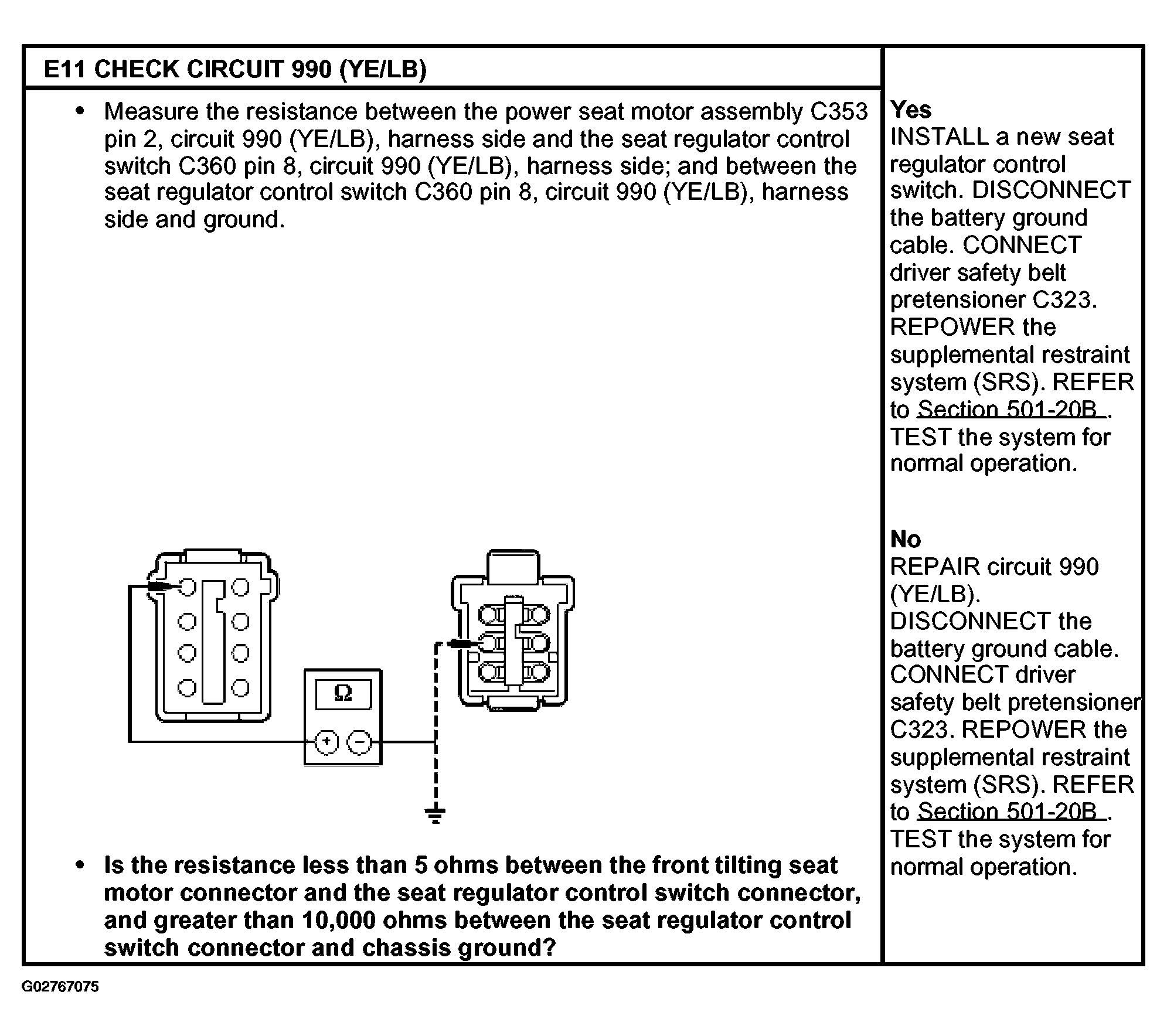

Fig 6: Pinpoint Test E: Power Seat Does Not Move Horizontally (Steps E10-E11)

Courtesy of FORD MOTOR CO.
