Inspection and Verification

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer concern by operating the power seat.
  2. Visually inspect for mechanical or electrical concerns or damage.

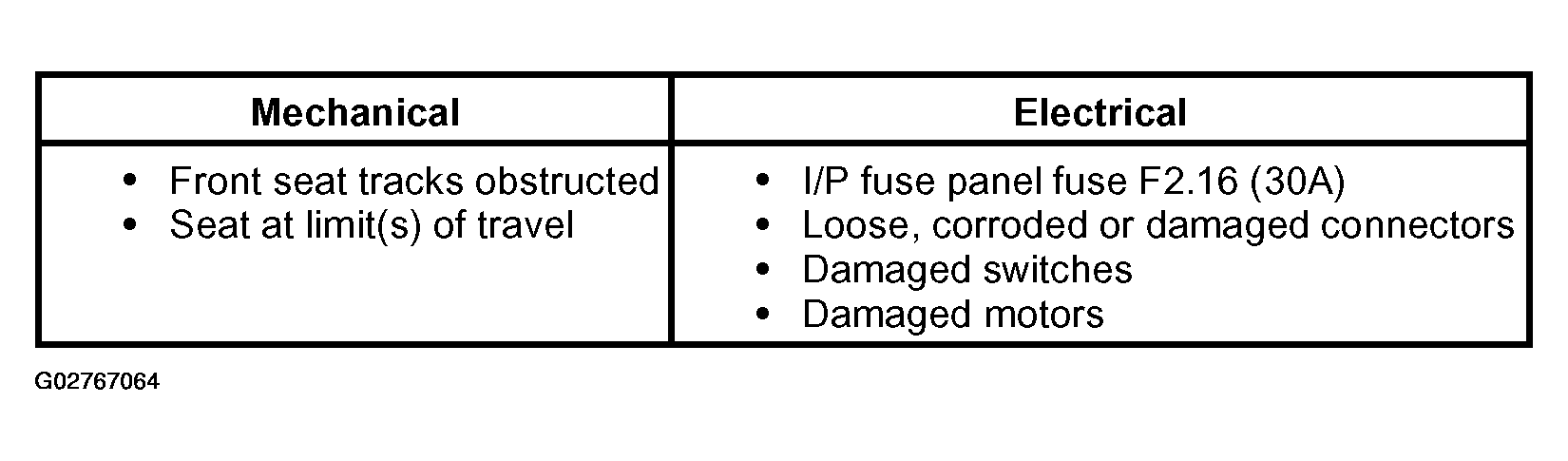

    VISUAL INSPECTION CHART

    Fig 1: Visual Inspection Chart
    G02767064Courtesy of FORD MOTOR CO.
  3. If an obvious cause for an observed or reported concern is found, correct the cause before proceeding to the next step.
  4. If the concern is not visually evident, verify the symptom. GO to SYMPTOM CHART .
