Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Remove the instrument panel steering column cover (04459).

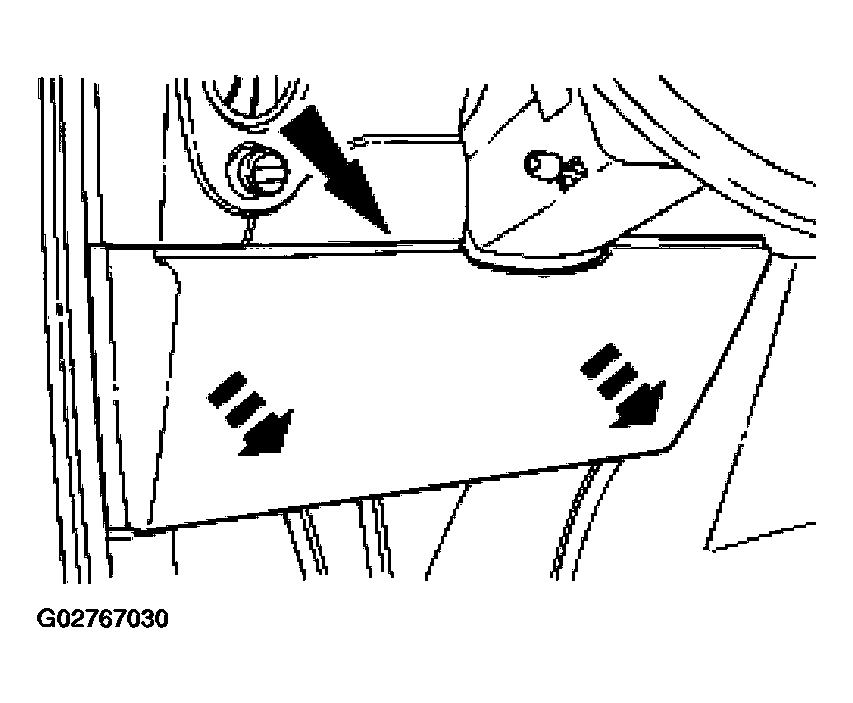

    Fig 1: Removing Instrument Panel Steering Column Cover
    G02767030Courtesy of FORD MOTOR CO.
  3. Remove the engine cover.
    • Unfasten the engine cover latches.
    • Lift the engine cover upward from the floor, and remove from the vehicle.

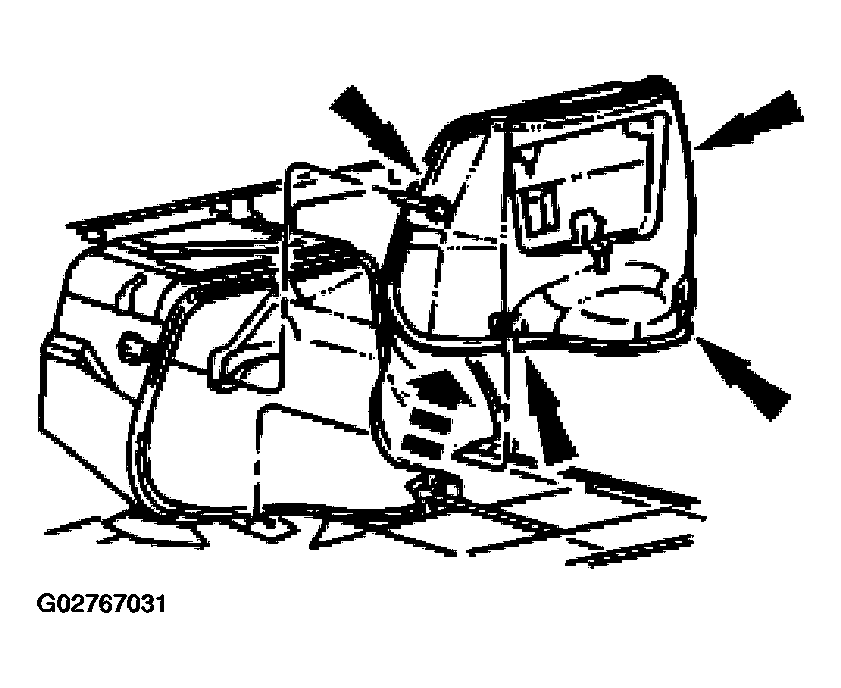

    Fig 2: Removing Engine Cover Latches And Engine Cover
    G02767031Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
