Air Deflector - Upper: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood (16612).
  2. Remove the air cleaner assembly; for additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. Remove the A/C condenser air deflector (19E672).
    • Remove the pushpins attaching the radiator air deflector.

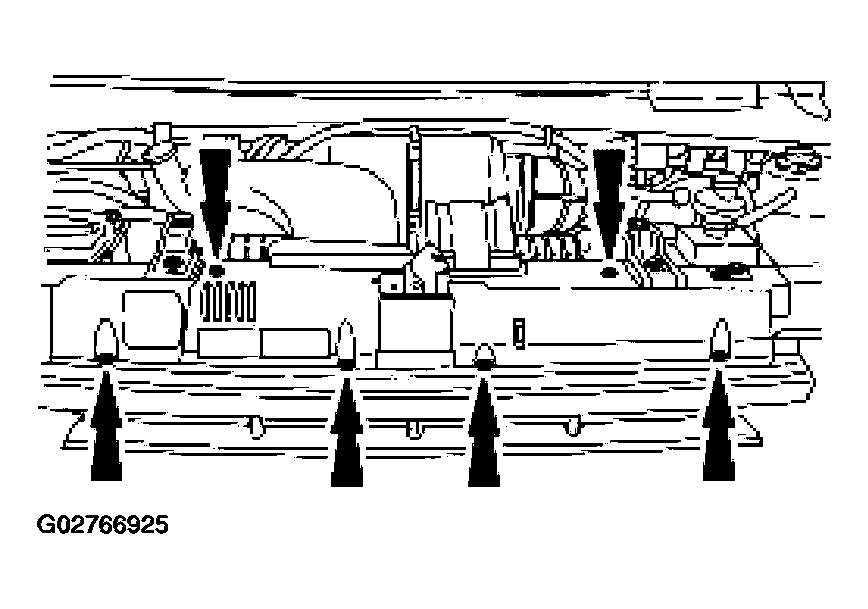

    Fig 1: Removing Pushpins Attaching Radiator Air Deflector
    G02766925Courtesy of FORD MOTOR CO.
