Lamp Assembly - Dome/Reading: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Rotate both dome/reading lamp to the stop position, then continue until both dome/reading lamps are in the vertical position.

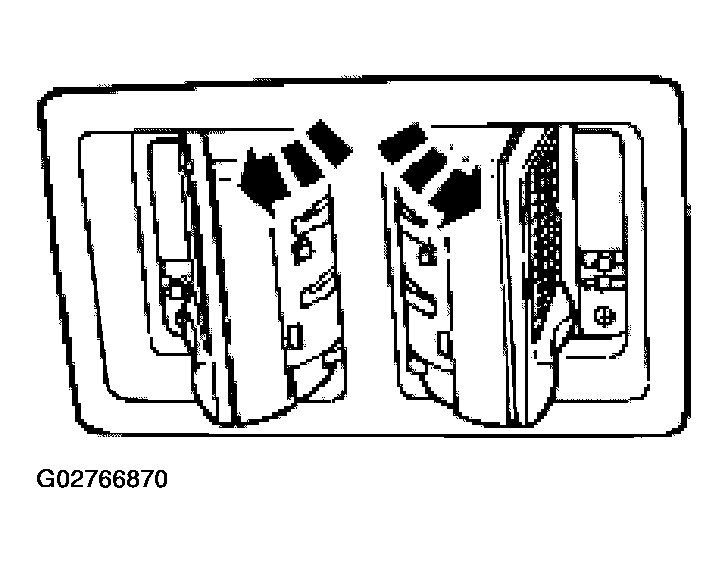

Fig 1: Rotating Both Dome/Reading Lamp To Stop Position
Courtesy of FORD MOTOR CO.
Remove the dome/reading lamp screws.

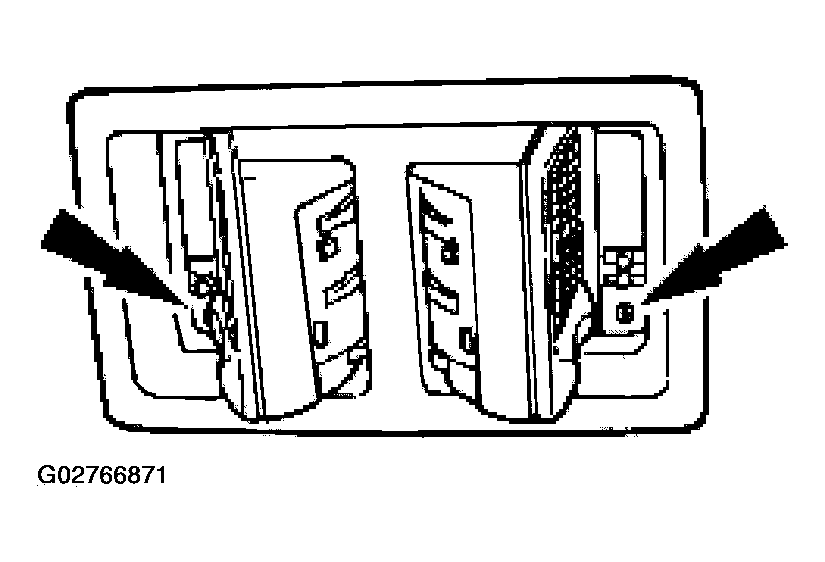

Fig 2: Removing Dome/Reading Lamp Screws
Courtesy of FORD MOTOR CO.
Disconnect the dome/reading lamp electrical connector.

Fig 3: Disconnecting Dome/Reading Lamp Electrical Connector
Courtesy of FORD MOTOR CO.
