Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear hi-mount lamp screws.
    Fig 1: Removing The Rear Hi-Mount Lamp Screws
    G02766840Courtesy of FORD MOTOR CO.
  2. Remove the screws retaining the lens to the interior lamp door (cargo lamp).
    Fig 2: Removing Screws Retaining Lens To The Interior Lamp Door
    G02766841Courtesy of FORD MOTOR CO.
  3. Remove the interior lamp door (cargo lamp) screws.
    Fig 3: Removing Interior Lamp Door Screws
    G02766842Courtesy of FORD MOTOR CO.

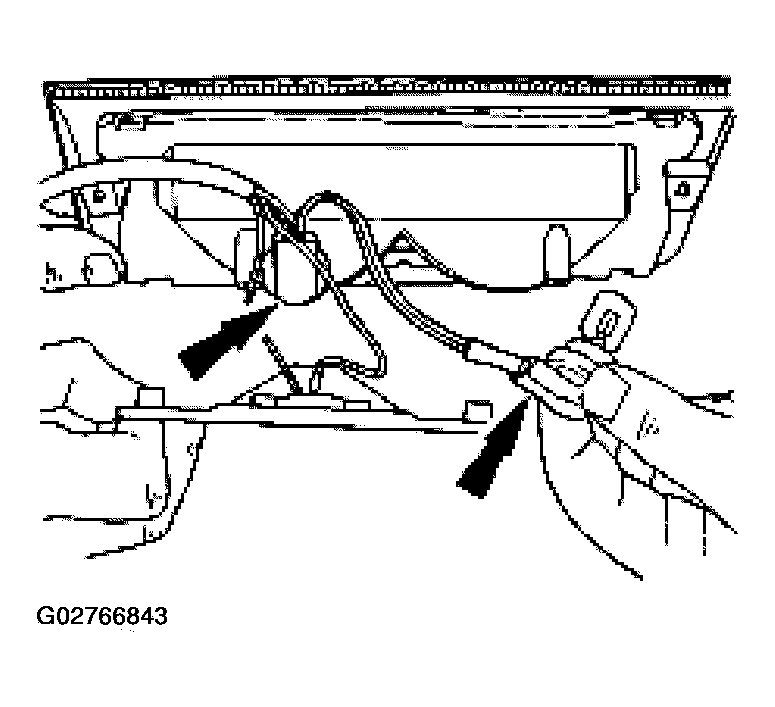

  4. Remove the two bulb sockets and remove the rear hi-mount lamp assembly.
    Fig 4: Removing Bulb Sockets
    G02766843Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
