Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear hi-mount lamp screws.
    Fig 1: Removing Rear Hi-Mount Lamp Screws
    G02766844Courtesy of FORD MOTOR CO.
  2. Remove the rear hi-mount lamp.

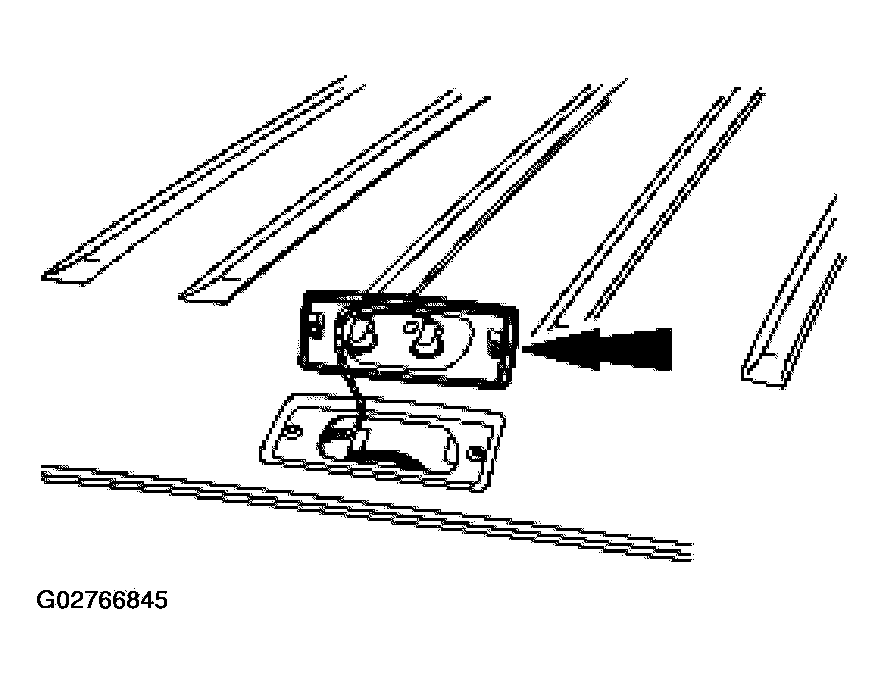

    Fig 2: Removing Rear Hi-Mount Lamp
    G02766845Courtesy of FORD MOTOR CO.
  3. Disconnect the electrical connectors.
  4. To install, reverse the removal procedure.
