Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown; LH similar.

Remove the parking lamp screws.

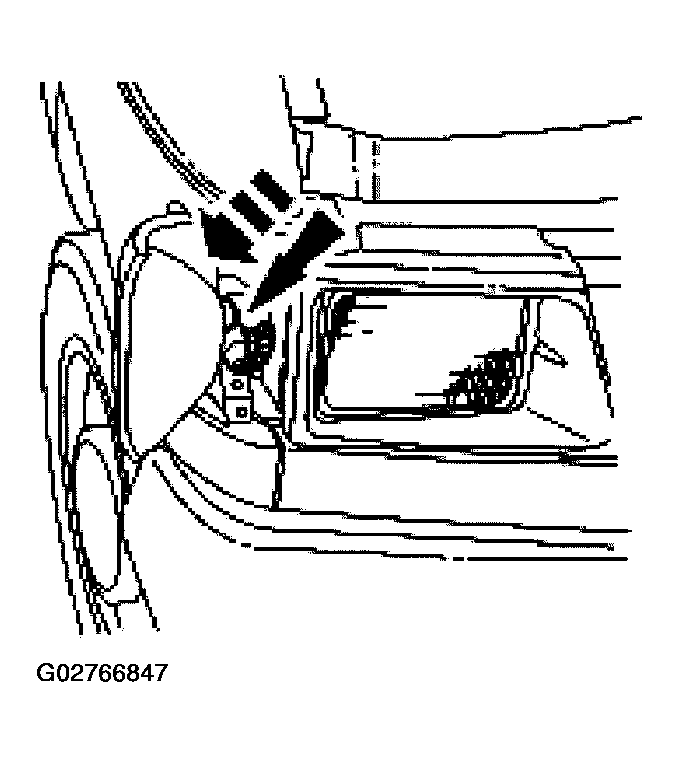

Fig 1: Removing Parking Lamp Screws
Courtesy of FORD MOTOR CO.
Pull the parking lamp forward and disconnect the electrical connector.

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
