Bulb - Headlamp, Aerodynamic: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Bulbs No. 9004 and No. 9007 look similar, but are not interchangeable.
  1. Install the headlamp bulb.
    1. Install the headlamp bulb.
    2. Rotate the headlamp bulb retainer clockwise one-eighth turn.

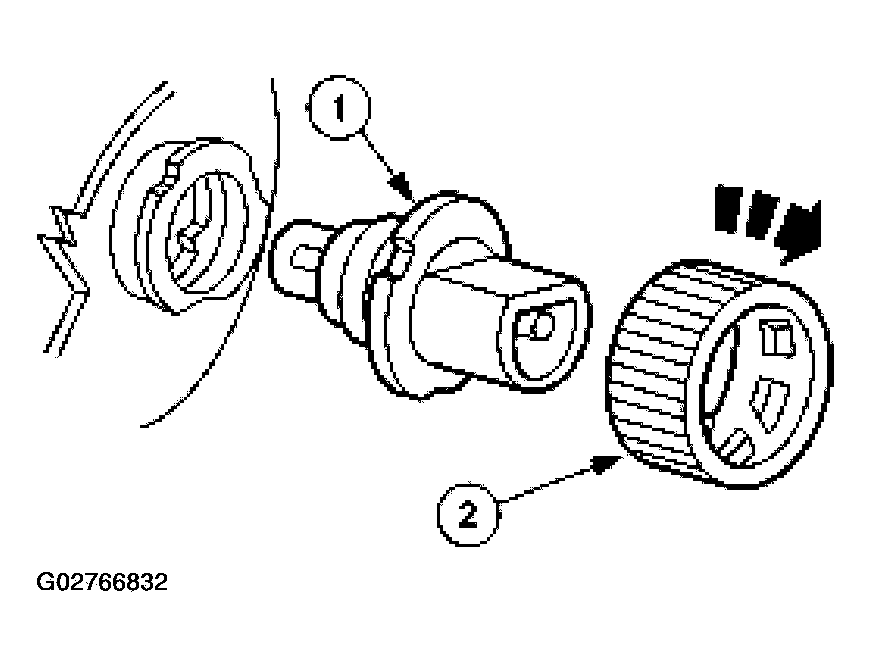

    Fig 1: Rotating The Headlamp Bulb Retainer Clockwise One-Eighth Turn
    G02766832Courtesy of FORD MOTOR CO.
  2. Install the headlamp. For additional information, refer to LAMP ASSEMBLY - HEADLAMP, AERODYNAMIC .
