Pinpoint Test H: The Turn Signal Lamps Are Inoperative

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

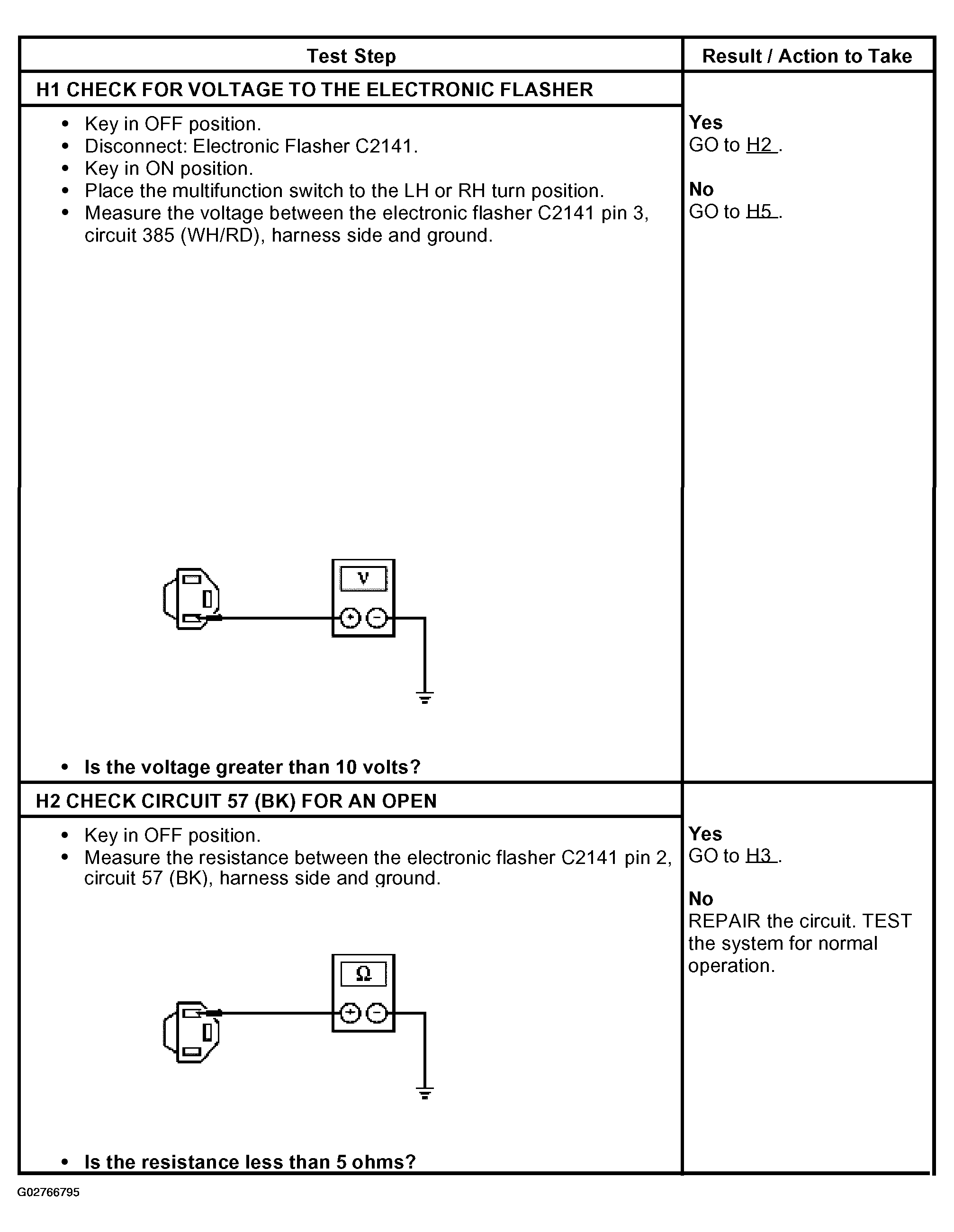

Fig 1: Pinpoint Test H: The Turn Signal Lamps Are Inoperative (Steps H1-H2)
G02766795Courtesy of FORD MOTOR CO.

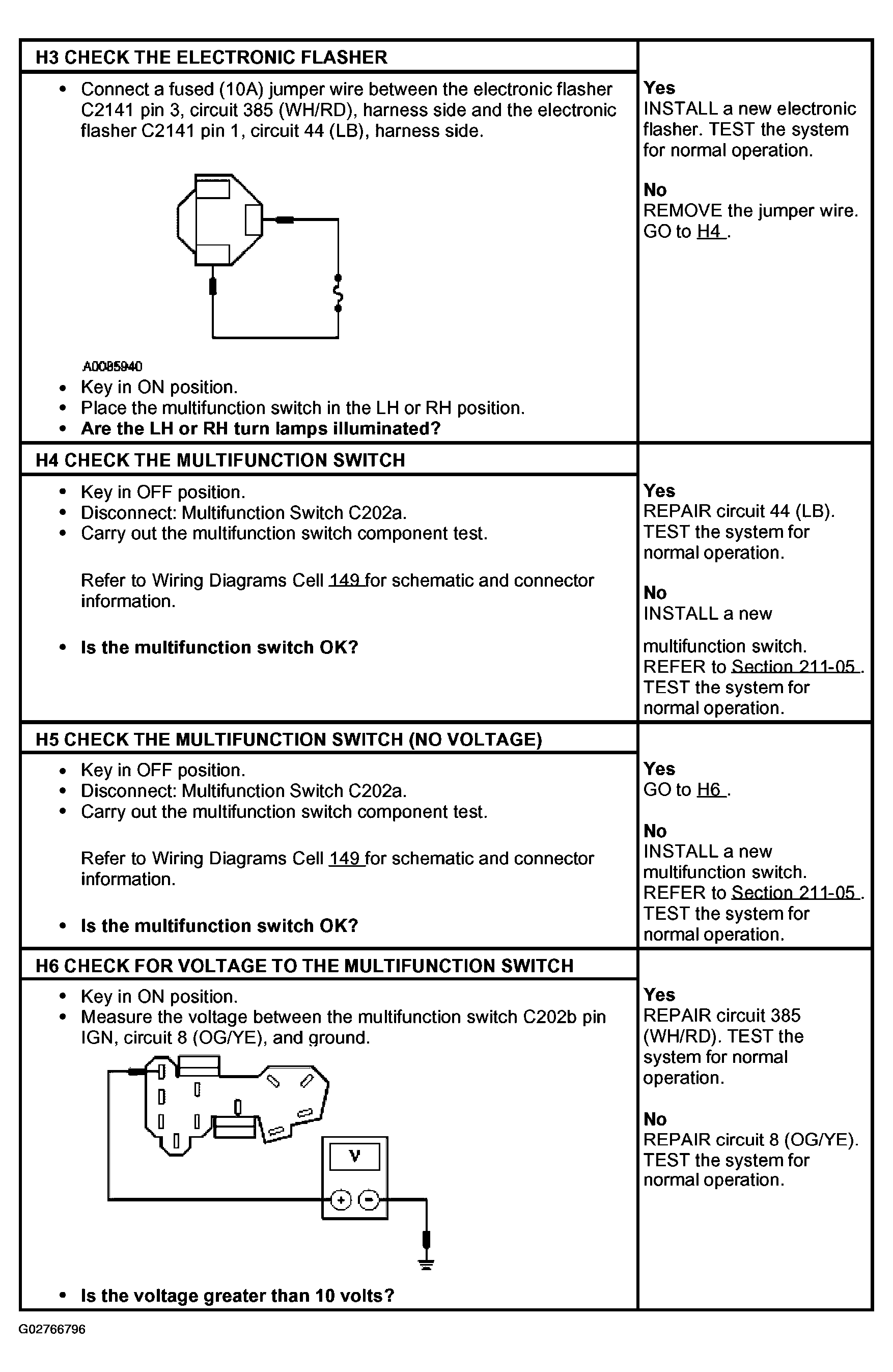

Fig 2: Pinpoint Test H: The Turn Signal Lamps Are Inoperative (Steps H3-H6)
G02766796Courtesy of FORD MOTOR CO.
