Pinpoint Test G: The STOPLAMPS Are On Continuously

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

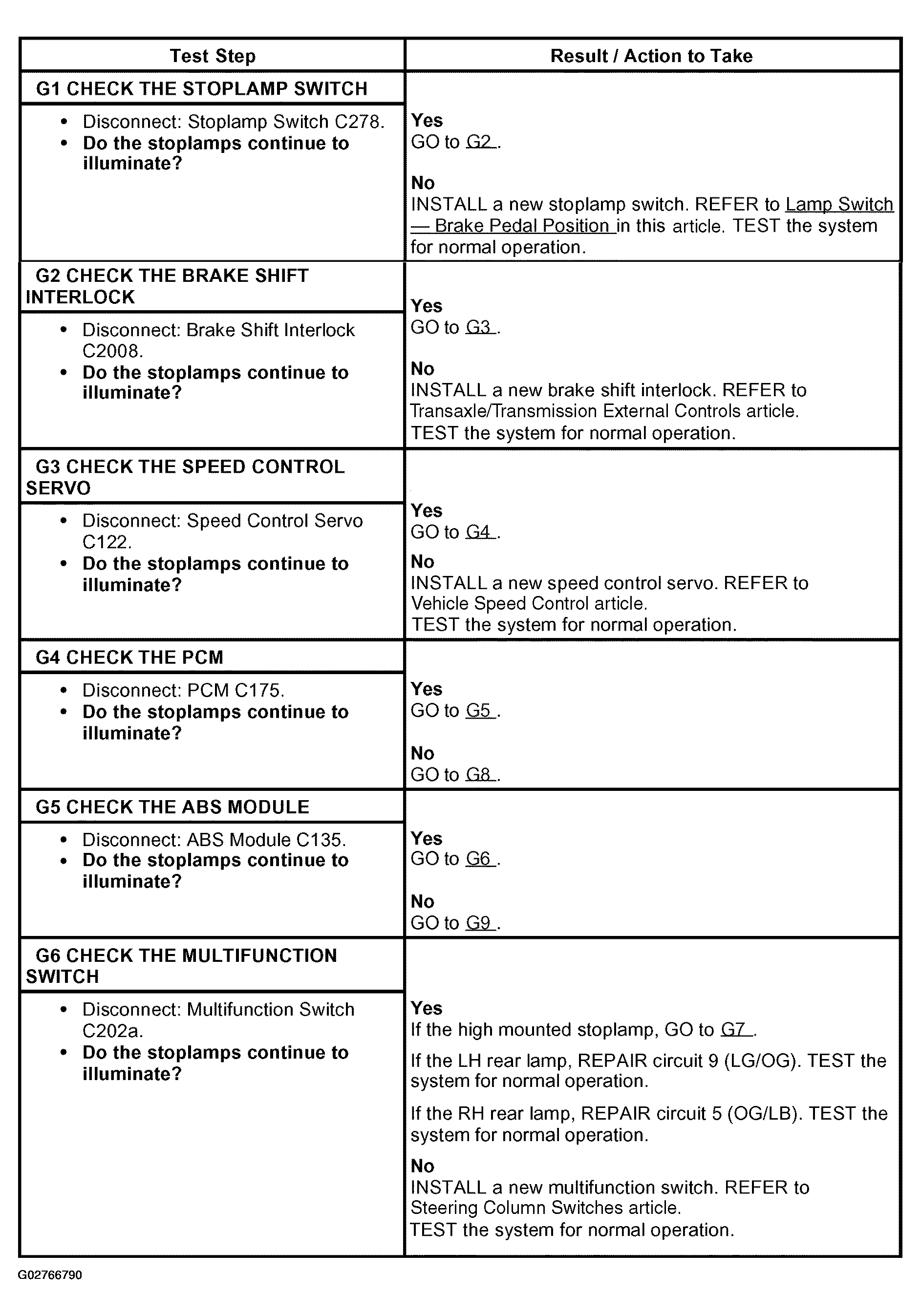

Fig 1: Pinpoint Test G: The Stoplamps Are On Continuously (Steps G1-G6)
G02766790Courtesy of FORD MOTOR CO.

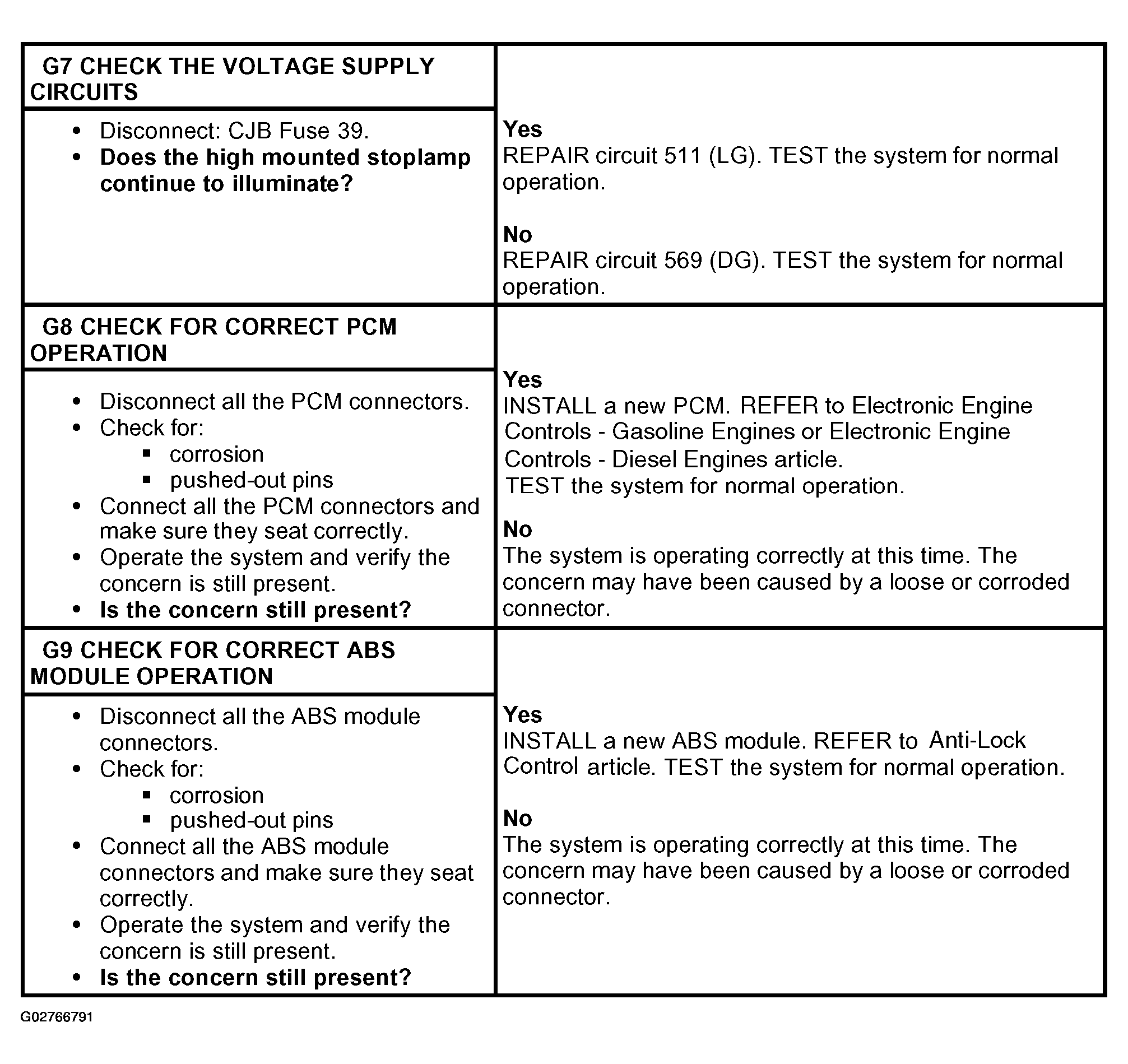

Fig 2: Pinpoint Test G: The Stoplamps Are On Continuously (Steps G7-G9)
G02766791Courtesy of FORD MOTOR CO.
