Pinpoint Test J: One Or More Parking, Rear Or License Plate Lamp Is Inoperative

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

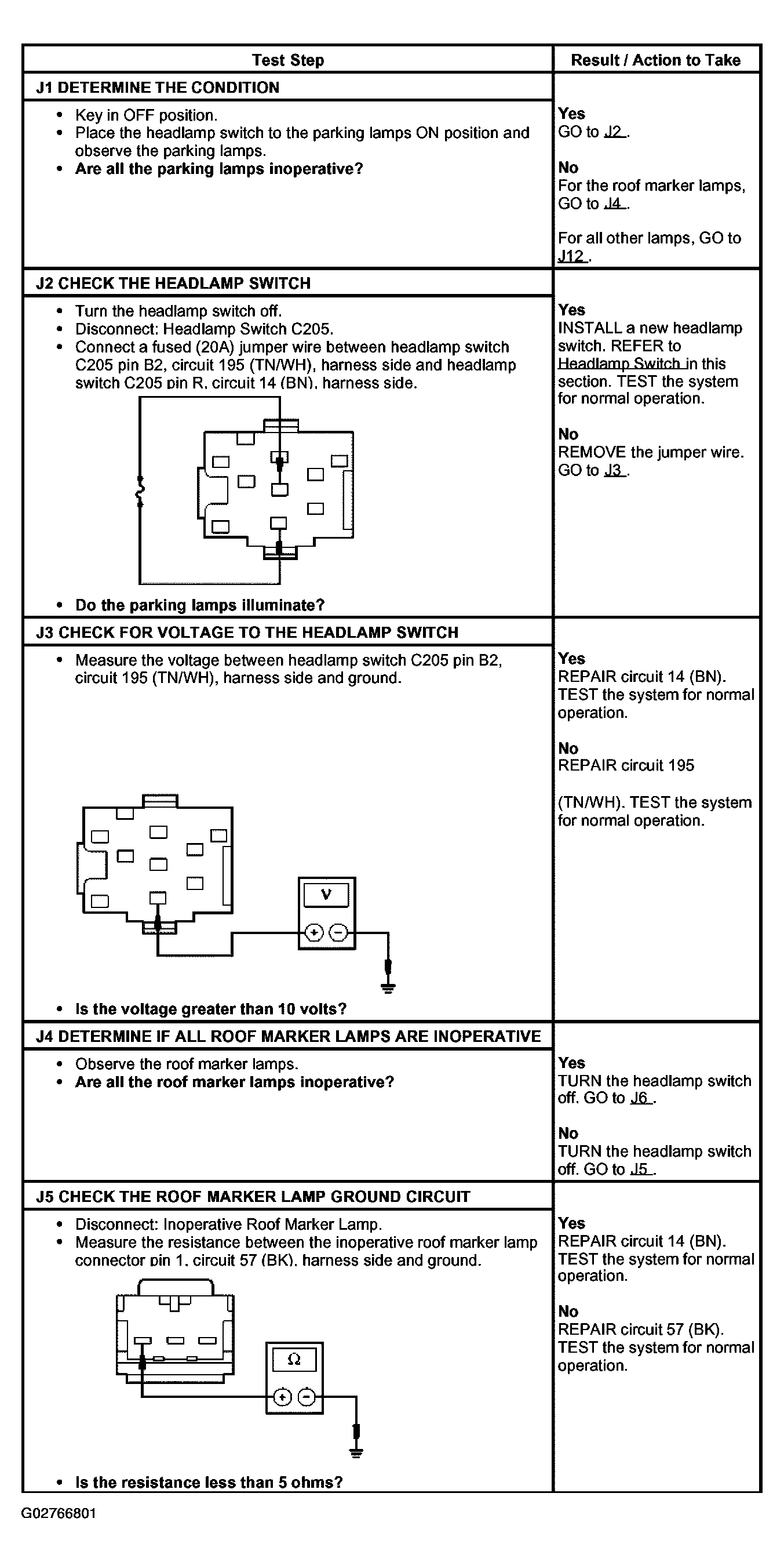

Fig 1: Pinpoint Test J: One Or More Parking, Rear Or License Plate Lamp Is Inoperative (Steps J1-J5)

Courtesy of FORD MOTOR CO.

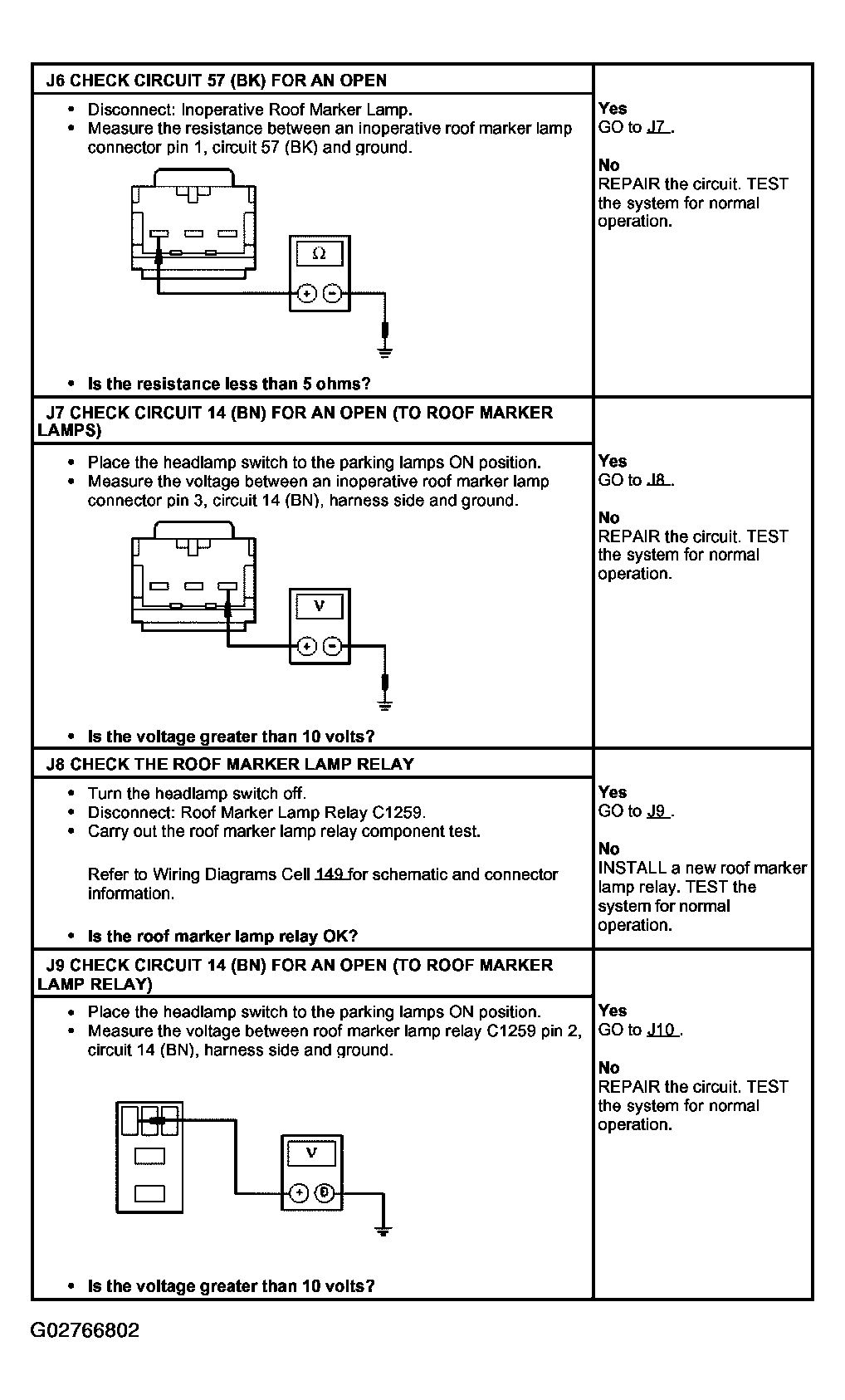

Fig 2: Pinpoint Test J: One Or More Parking, Rear Or License Plate Lamp Is Inoperative (Steps J6-J9)

Courtesy of FORD MOTOR CO.

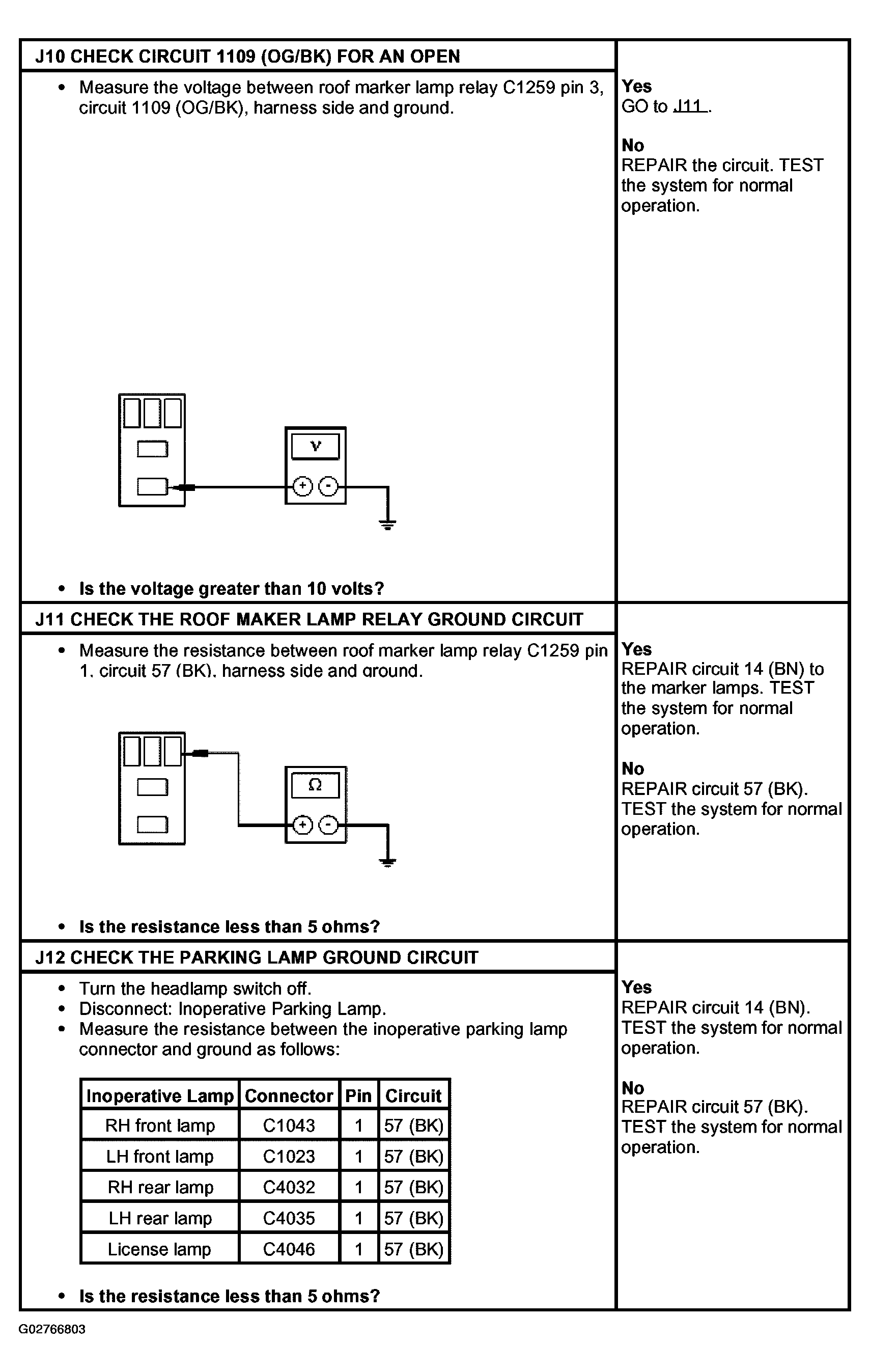

Fig 3: Pinpoint Test J: One Or More Parking, Rear Or License Plate Lamp Is Inoperative (Steps J10-J12)

Courtesy of FORD MOTOR CO.
