Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tool, pull the audio unit out.
Remove the audio unit.
- Disconnect the antenna lead-in cable and the electrical connectors.

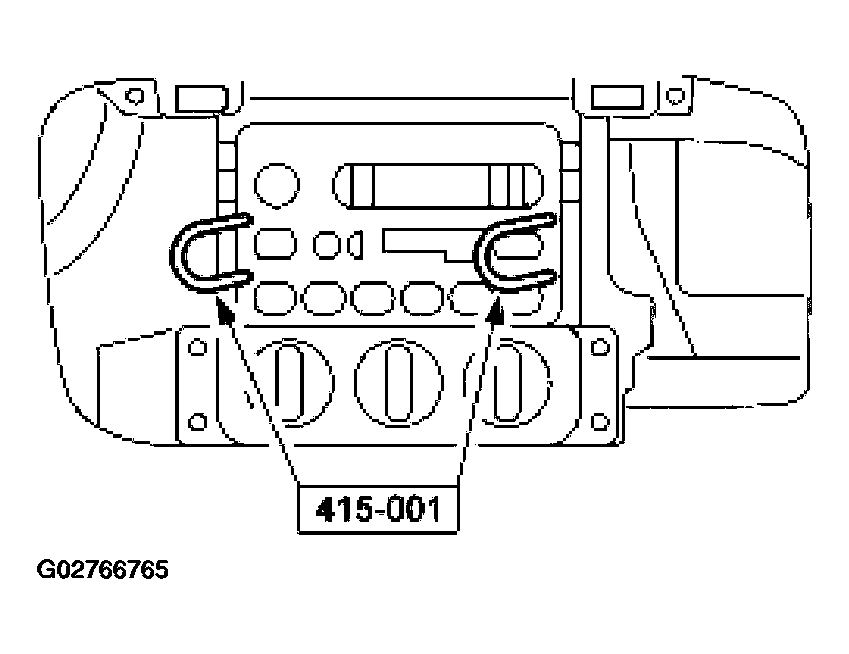

Fig 1: Using The Special Tool, Pull The Audio Unit Out
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
