Pinpoint Test C: Continuous Seek/Scan In Am/Fm

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

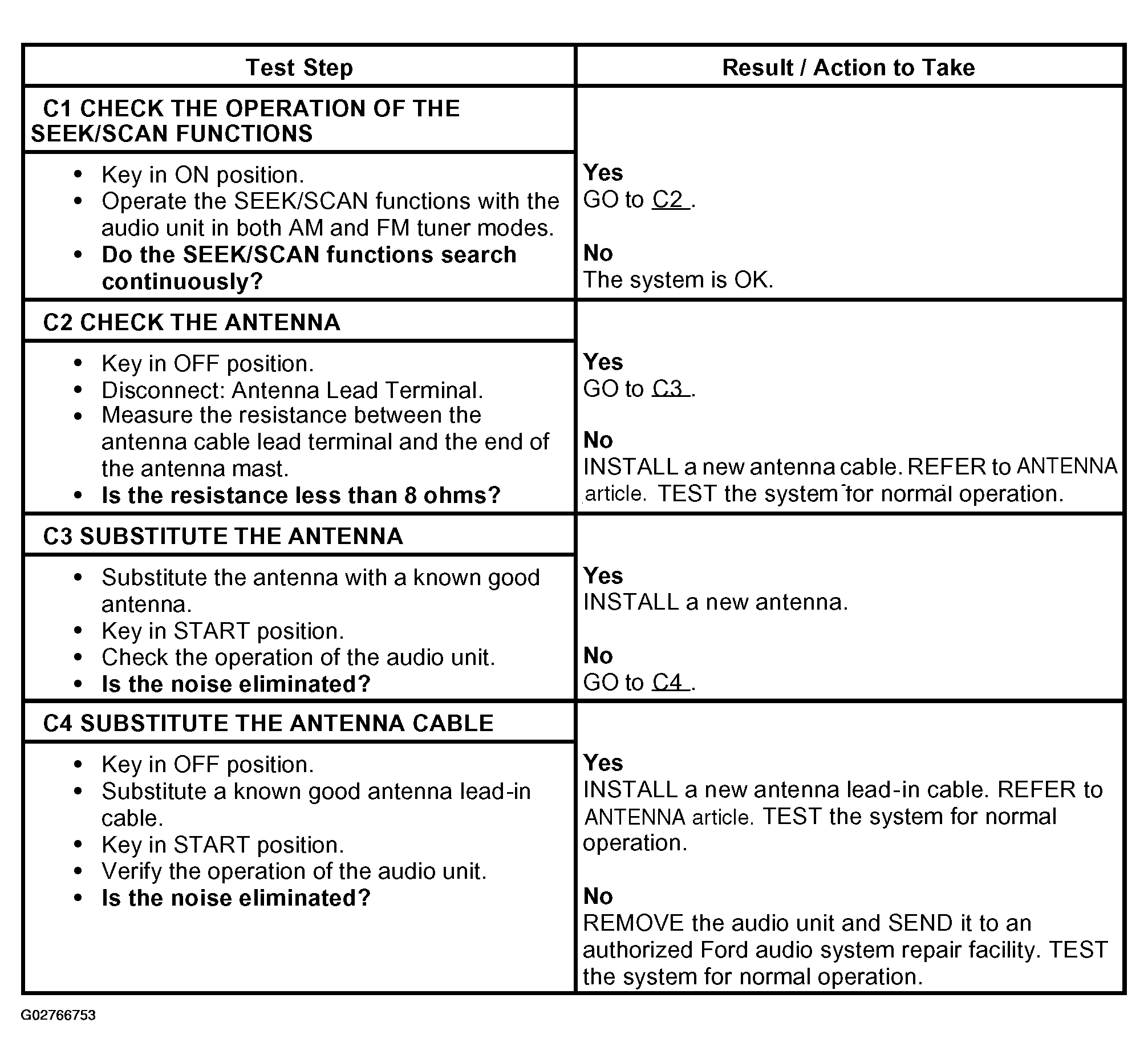

Fig 1: Pinpoint Test C: Continuous Seek/Scan In Am/FM (Steps C1-C4)
G02766753Courtesy of FORD MOTOR CO.
