Pinpoint Test B: Poor Reception

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

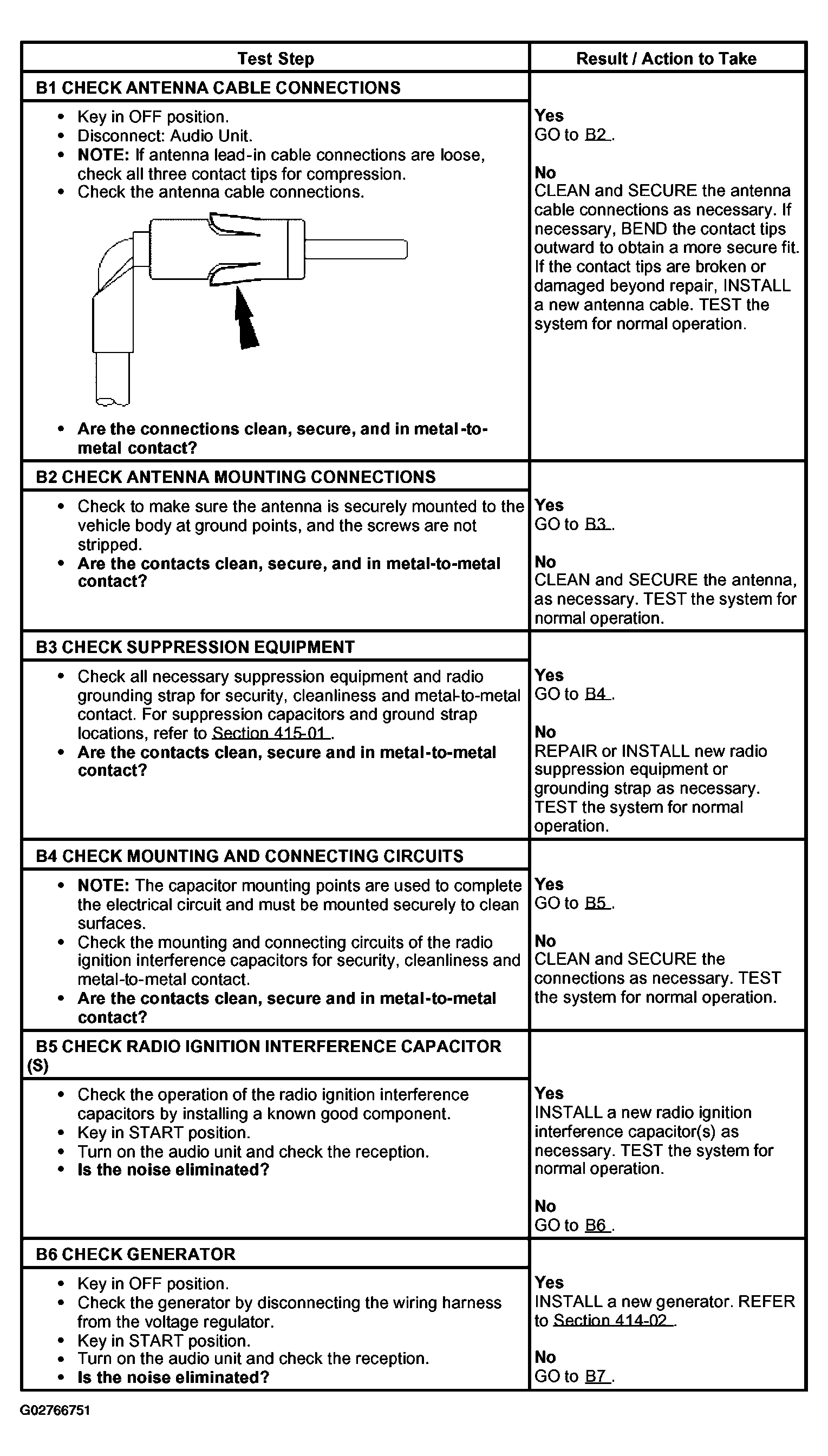

Fig 1: Pinpoint Test B: Poor Reception (Steps B1-B3)
G02766751Courtesy of FORD MOTOR CO.

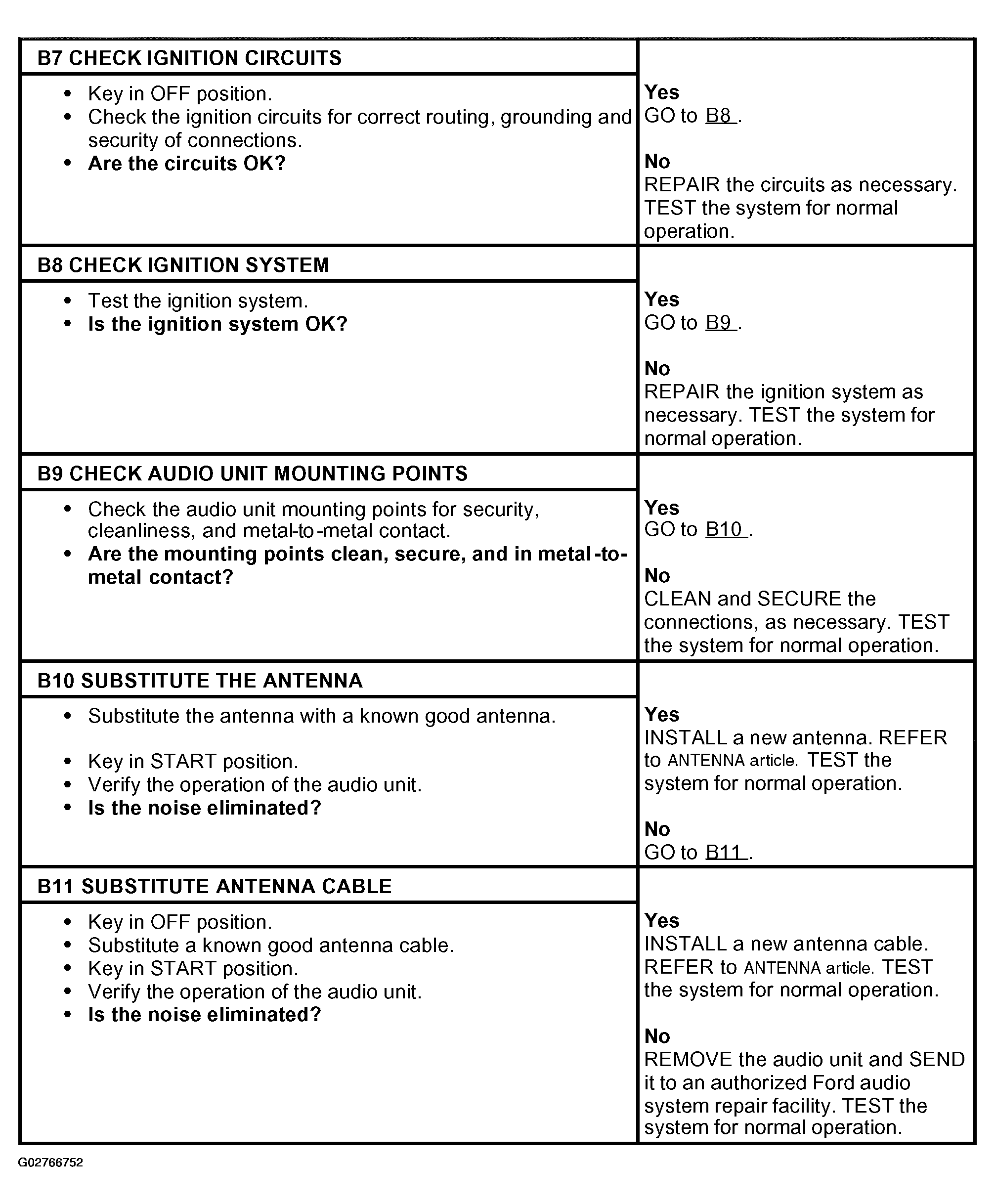

Fig 2: Pinpoint Test B: Poor Reception (Steps B4-B11)
G02766752Courtesy of FORD MOTOR CO.
