Simplified Battery Configuration - 6.0L

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

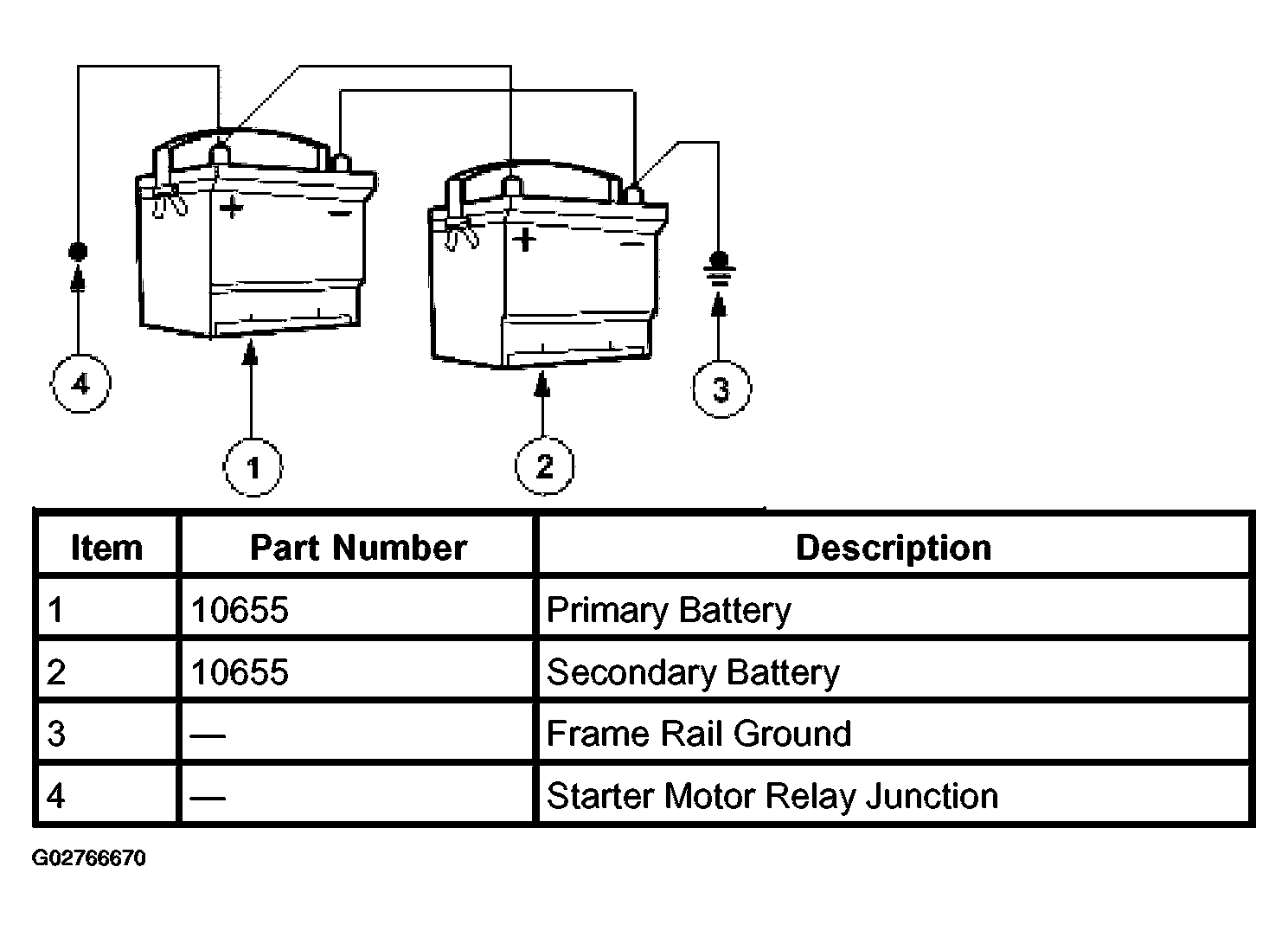

Fig 1: Identifying Simplified Battery Configuration
G02766670Courtesy of FORD MOTOR CO.
    CAUTION: Make sure to cover the ground cable terminal end with electrical tape or with a suitable insulating device.

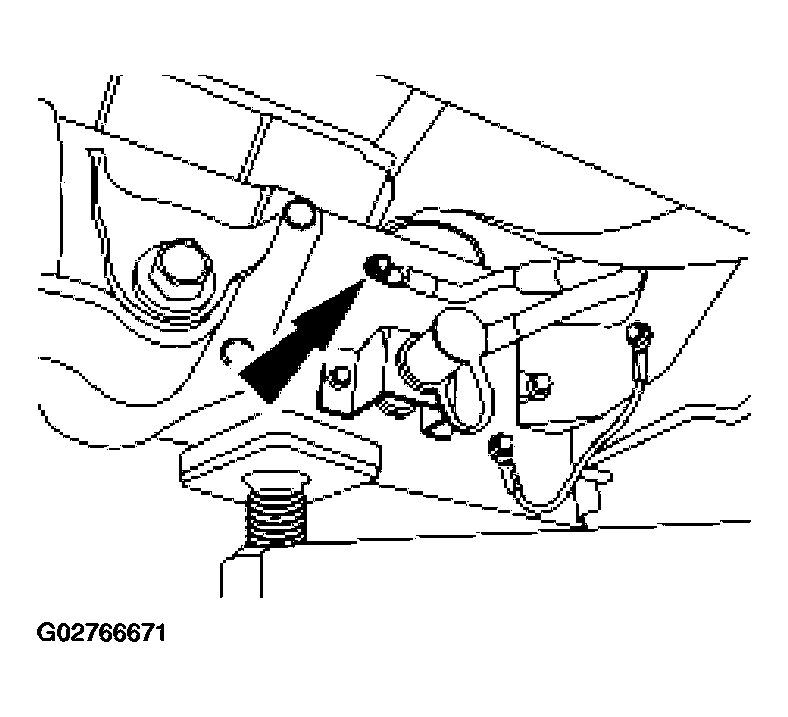

    Fig 2: Disconnecting Secondary Battery Ground Cable
    G02766671Courtesy of FORD MOTOR CO.
  1. Disconnect the secondary battery ground cable.
