Pinpoint Test F: The Charging System Warning Indicator Flickers Or Is Intermittent

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: 6.0L diesel generator is shown, all others are similar.

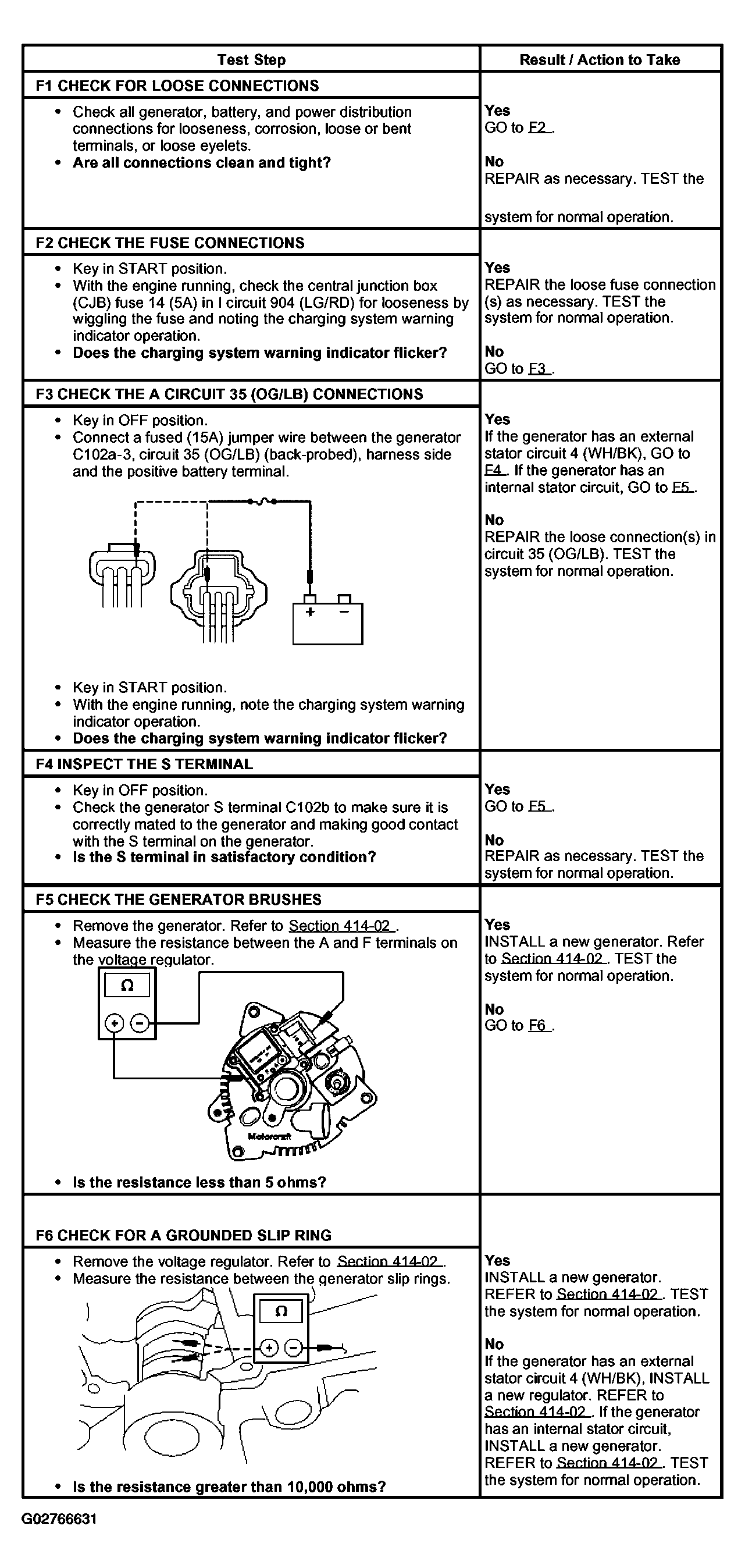

Fig 1: Pinpoint Test F: The Charging System Warning Indicator Flickers Or Is Intermittent (Steps F1-F6)
G02766631Courtesy of FORD MOTOR CO.
