Pinpoint Test E: The Charging System Warning Indicator Is Off With The Ignition Switch In The Run Position And The Engine Off

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

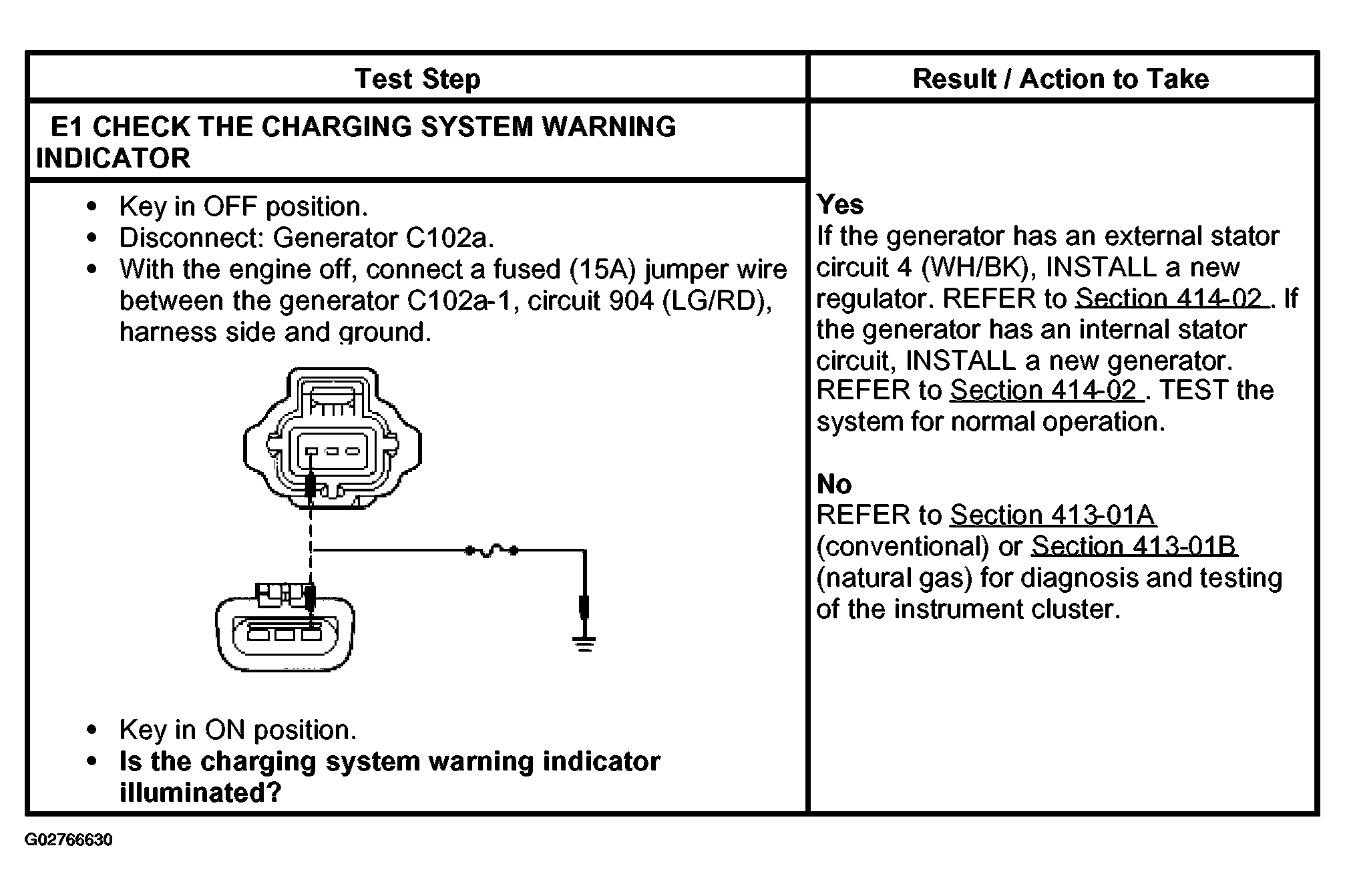

Fig 1: Pinpoint Test E: The Charging System Warning Indicator Is Off With The Ignition Switch In The Run Position And The Engine Off (Step E1)
G02766630Courtesy of FORD MOTOR CO.
