Pinpoint Test B: A Chime Is Inoperative-Key In Ignition (With Door Ajar)

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

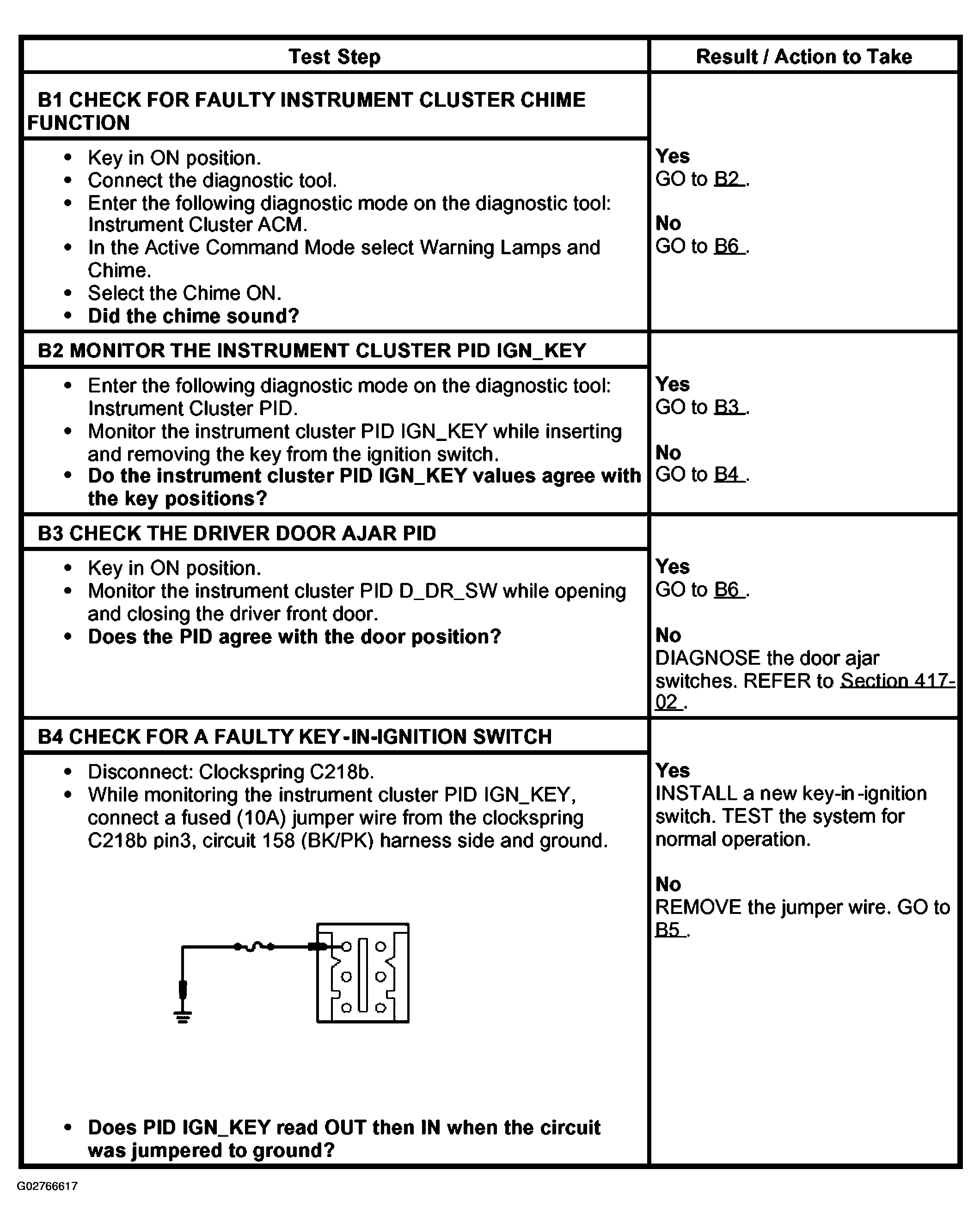

Fig 1: Pinpoint Test B: A Chime Is Inoperative - Key In Ignition (With Door Ajar) (Step B1-B4)
G02766617Courtesy of FORD MOTOR CO.

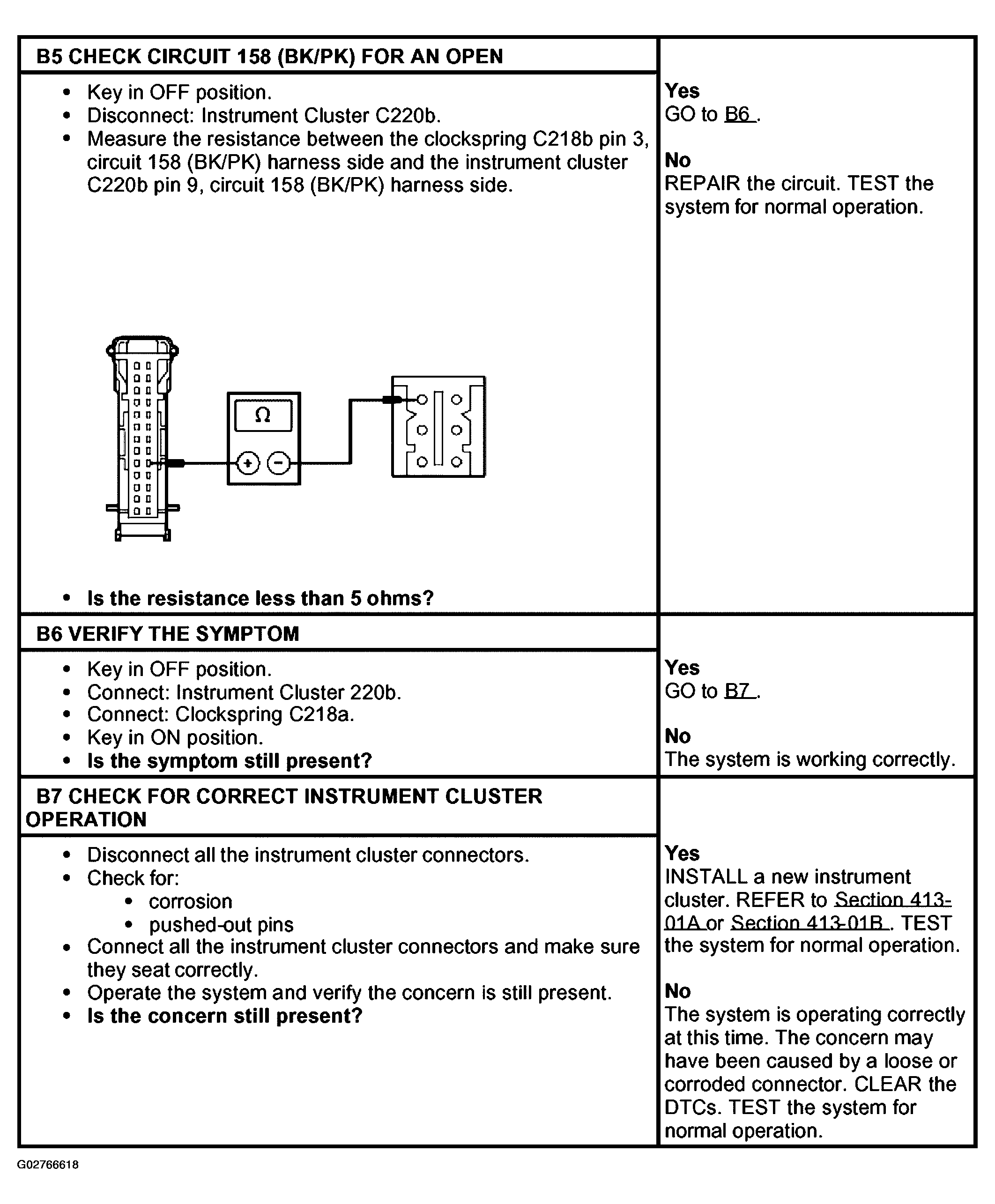

Fig 2: Pinpoint Test B: A Chime Is Inoperative - Key In Ignition (With Door Ajar) (Step B5-B7)
G02766618Courtesy of FORD MOTOR CO.
