Pinpoint Test E: DTC P0606 - Electronic Control Module (ECM) Internal Failure

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

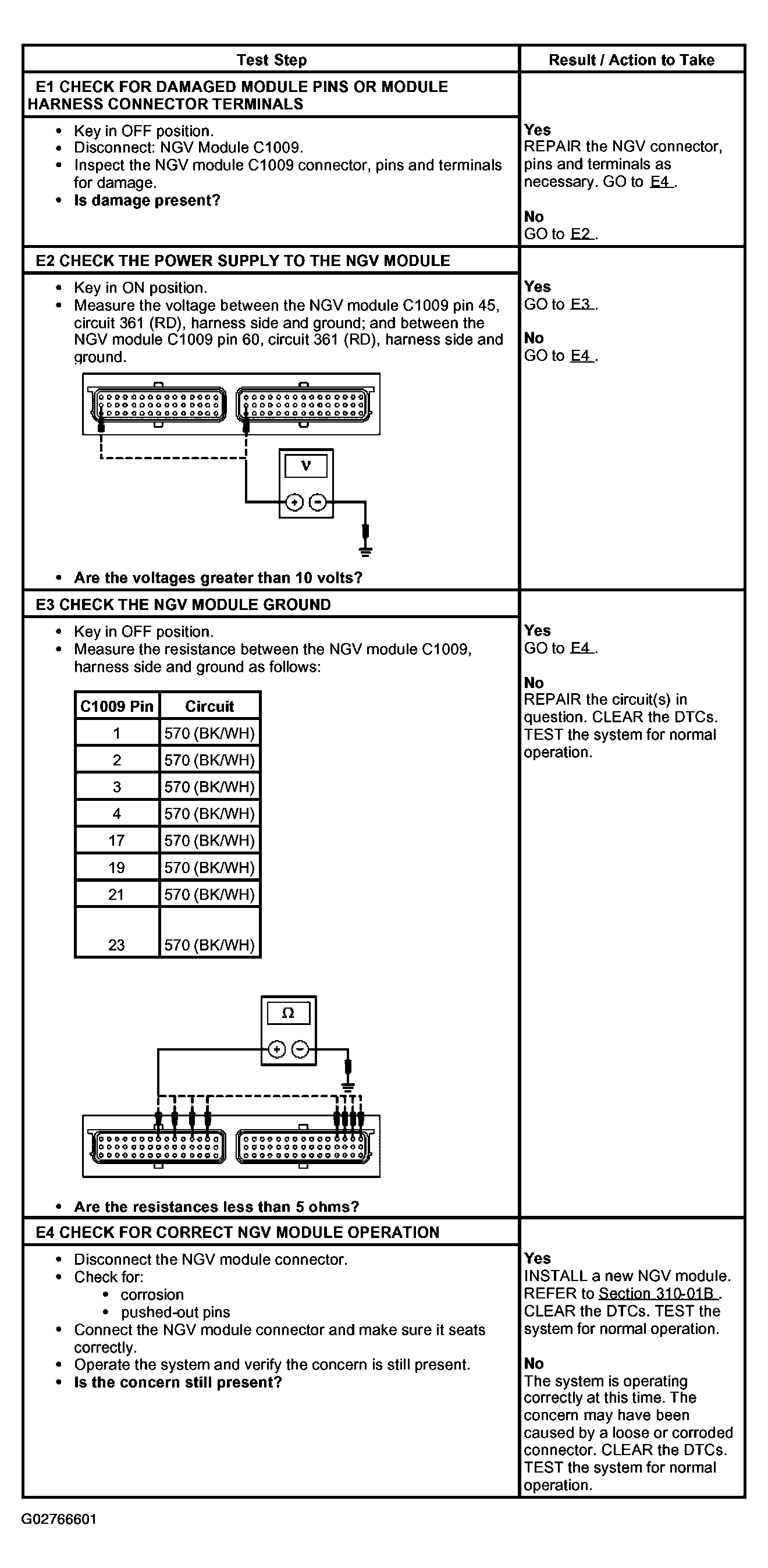

Fig 1: Pinpoint Test E: DTC P0606 - Electronic Control Module (ECM) Internal Failure (Steps E1-E4)
G02766601Courtesy of FORD MOTOR CO.
