Pinpoint Test C: DTC B1222 - Fuel Tank Temperature Sensor Circuit Short To Ground (Low Input)

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

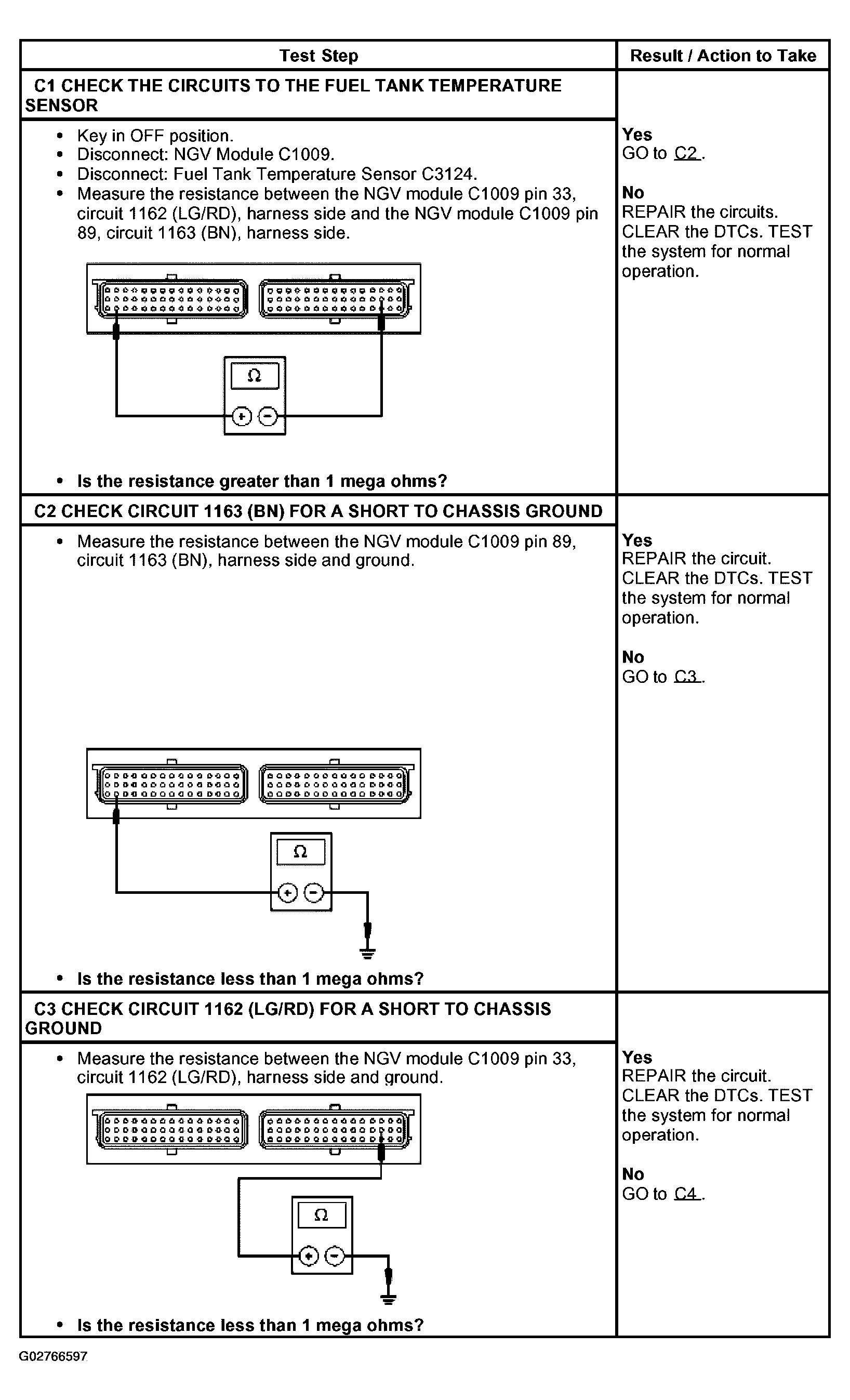

Fig 1: Pinpoint Test C: DTC B1222 - Fuel Tank Temperature Sensor Circuit Short To Ground (Low Input) (Steps C1-C3)
G02766597Courtesy of FORD MOTOR CO.

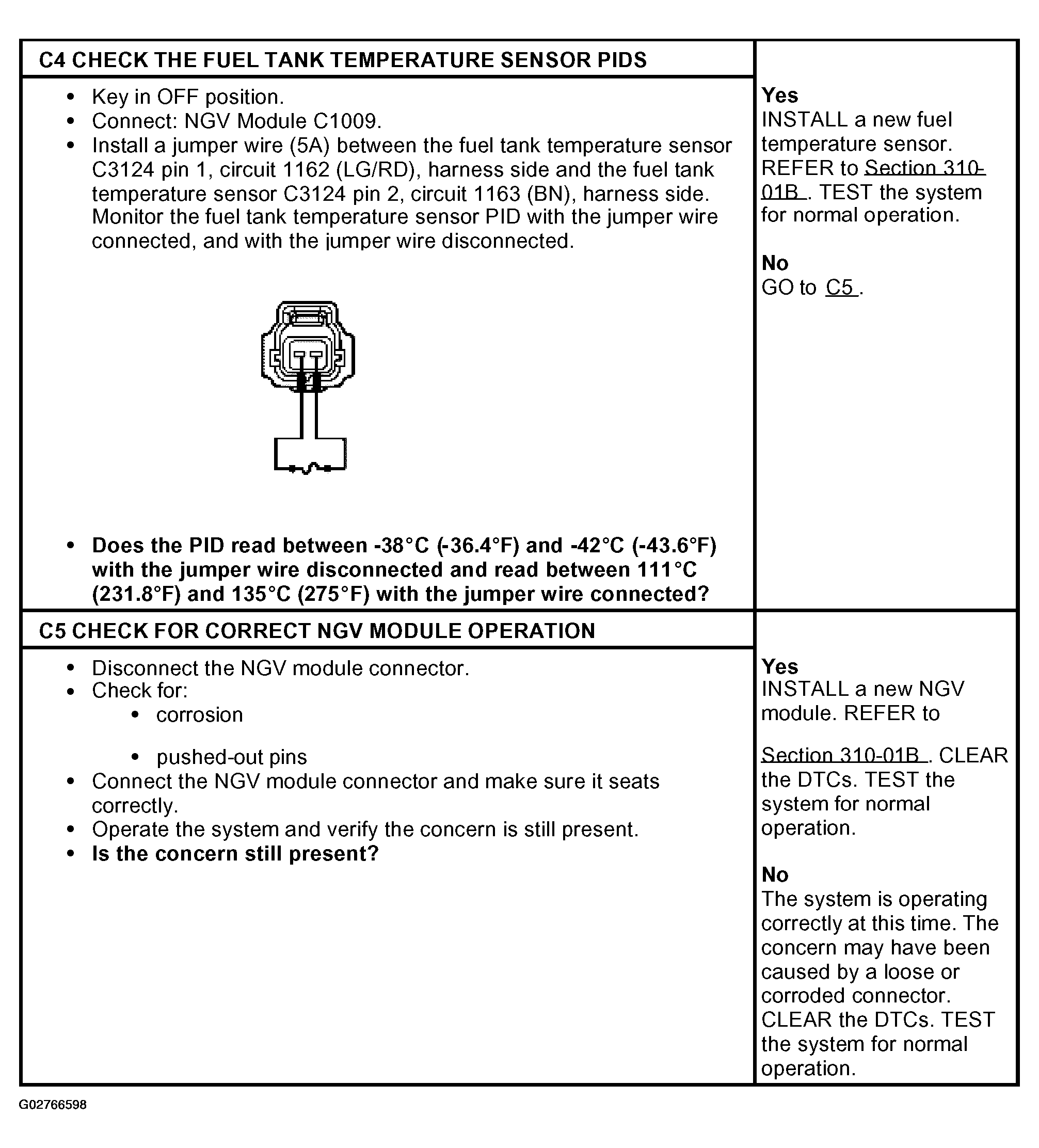

Fig 2: Pinpoint Test C: DTC B1222 - Fuel Tank Temperature Sensor Circuit Short To Ground (Low Input) (Steps C4-C5)
G02766598Courtesy of FORD MOTOR CO.
