Pinpoint Test B: DTC B1223 - Fuel Tank Temperature Sensor Circuit Open (Greater Than 4.585 Volts)

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pinpoint Test B: DTC B1223 - Fuel Tank Temperature Sensor Circuit Open (Greater Than 4.585 Volts) (Steps B1-B3)
G02766595Courtesy of FORD MOTOR CO.

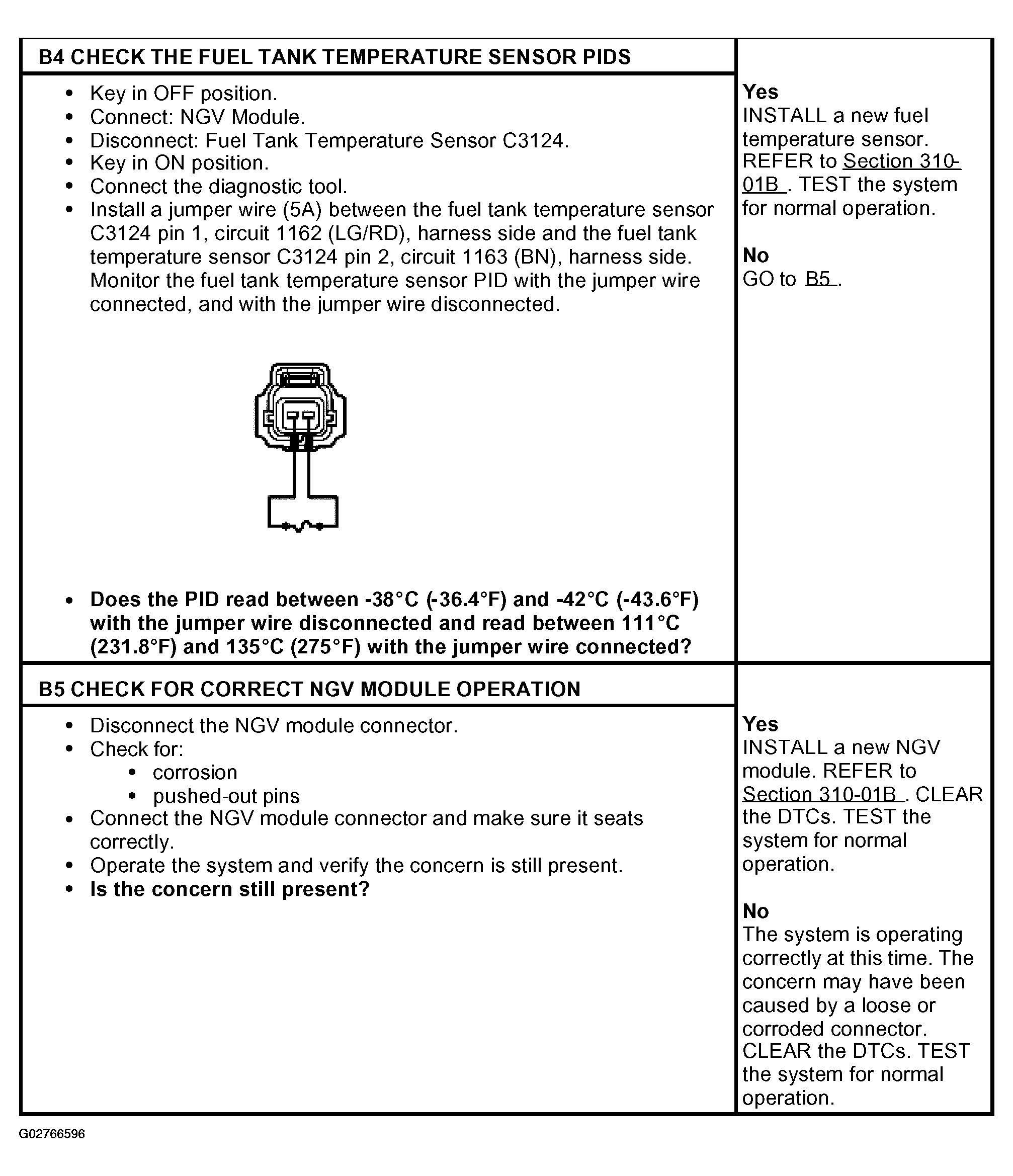

Fig 2: Pinpoint Test B: DTC B1223 - Fuel Tank Temperature Sensor Circuit Open (Greater Than 4.585 Volts) (Steps B4-B5)
G02766596Courtesy of FORD MOTOR CO.
