Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER .
    2. NOTE: Remove the desired miniature bulb by turning it a quarter turn counterclockwise.

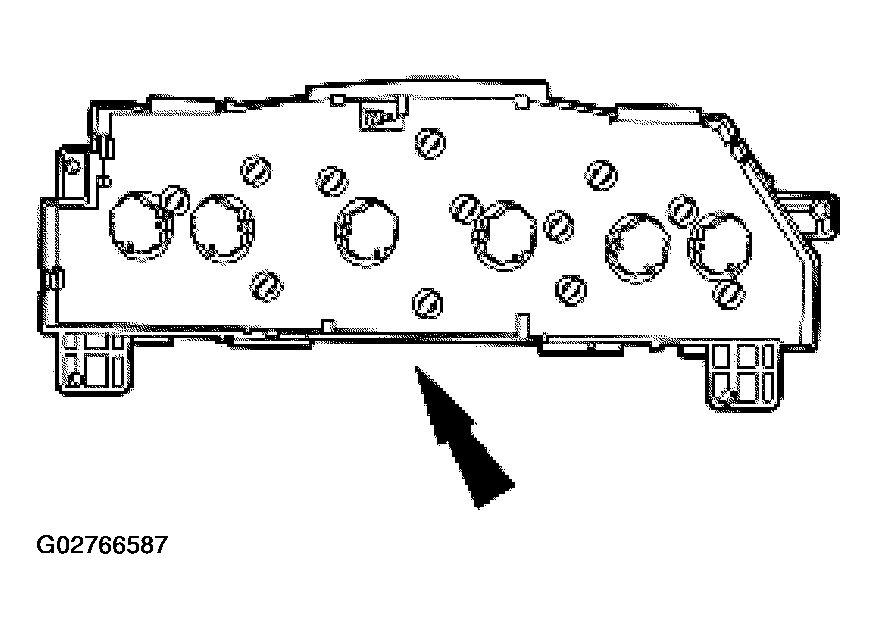

    Fig 1: Installing Instrument Cluster Bulbs
    G02766587Courtesy of FORD MOTOR CO.
  2. Remove the instrument cluster bulbs.
    1. Remove the warning indicator bulbs.
    2. Remove the illumination bulbs.
  3. To install, reverse the removal procedure.
