Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER .
  2. Disengage the 4 locking tabs and remove the instrument cluster lens.

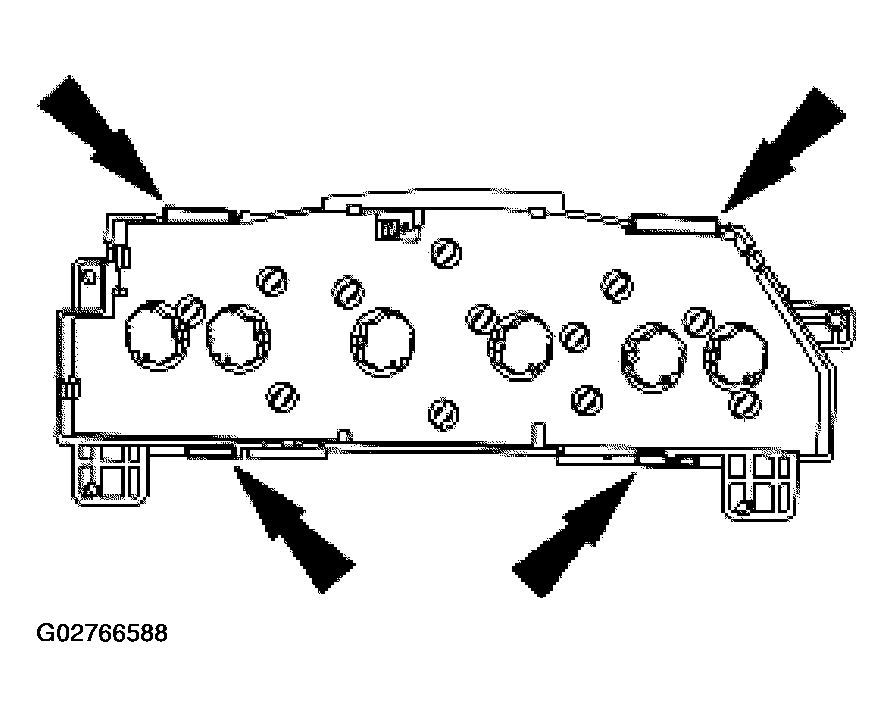

    Fig 1: Installing Instrument Cluster Locking Tabs
    G02766588Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
