Pinpoint Test K: The Charging System Warning Indicator Is Inoperative

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For single generator systems, only carry out Test Step K1. For dual generator systems, only carry out Test Step K2.

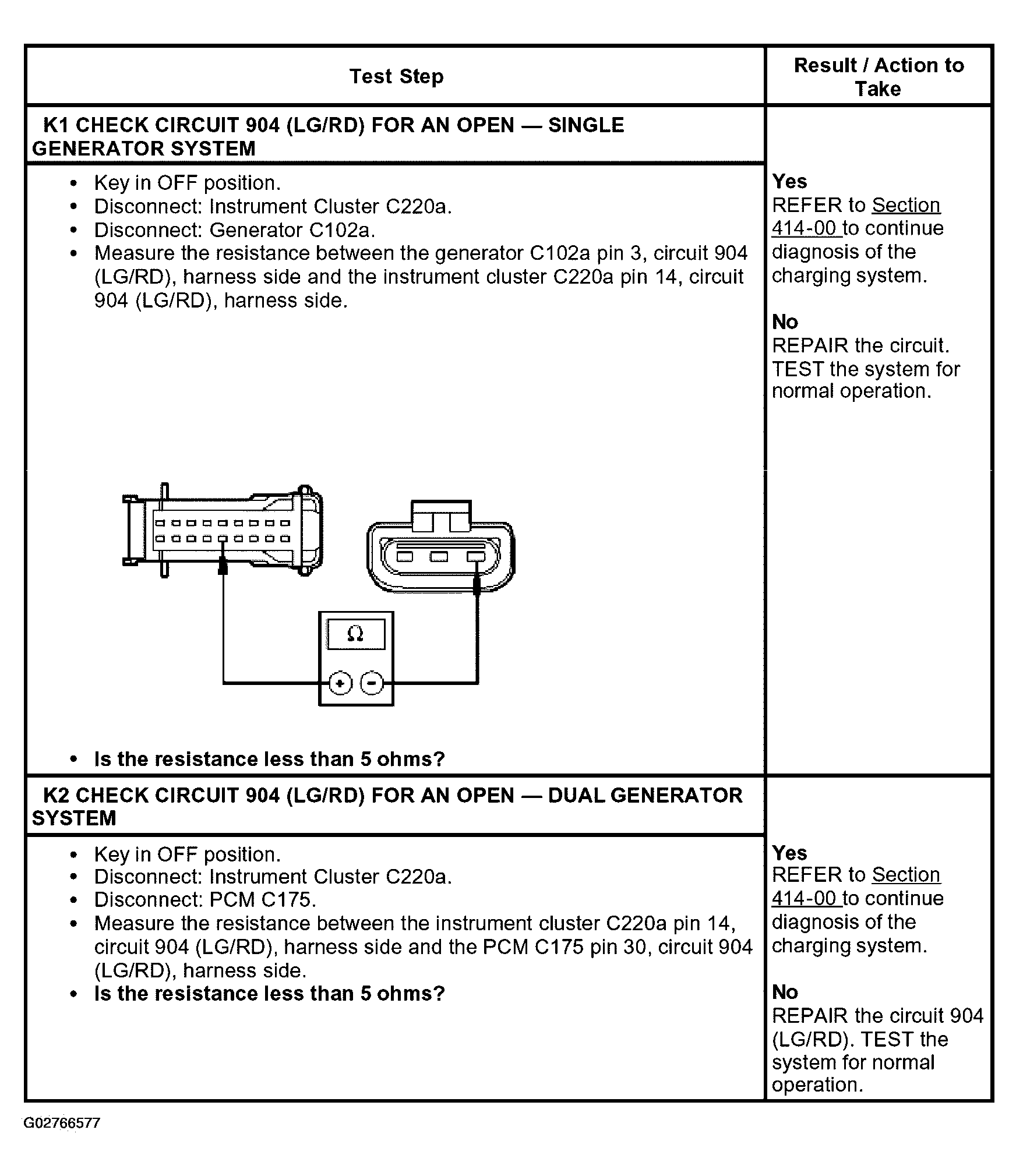

Fig 1: Pinpoint Test K: The Charging System Warning Indicator Is Inoperative (K1-K2)
G02766577Courtesy of FORD MOTOR CO.
