Pinpoint Test J: The Brake Warning Indicator Is Never On

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

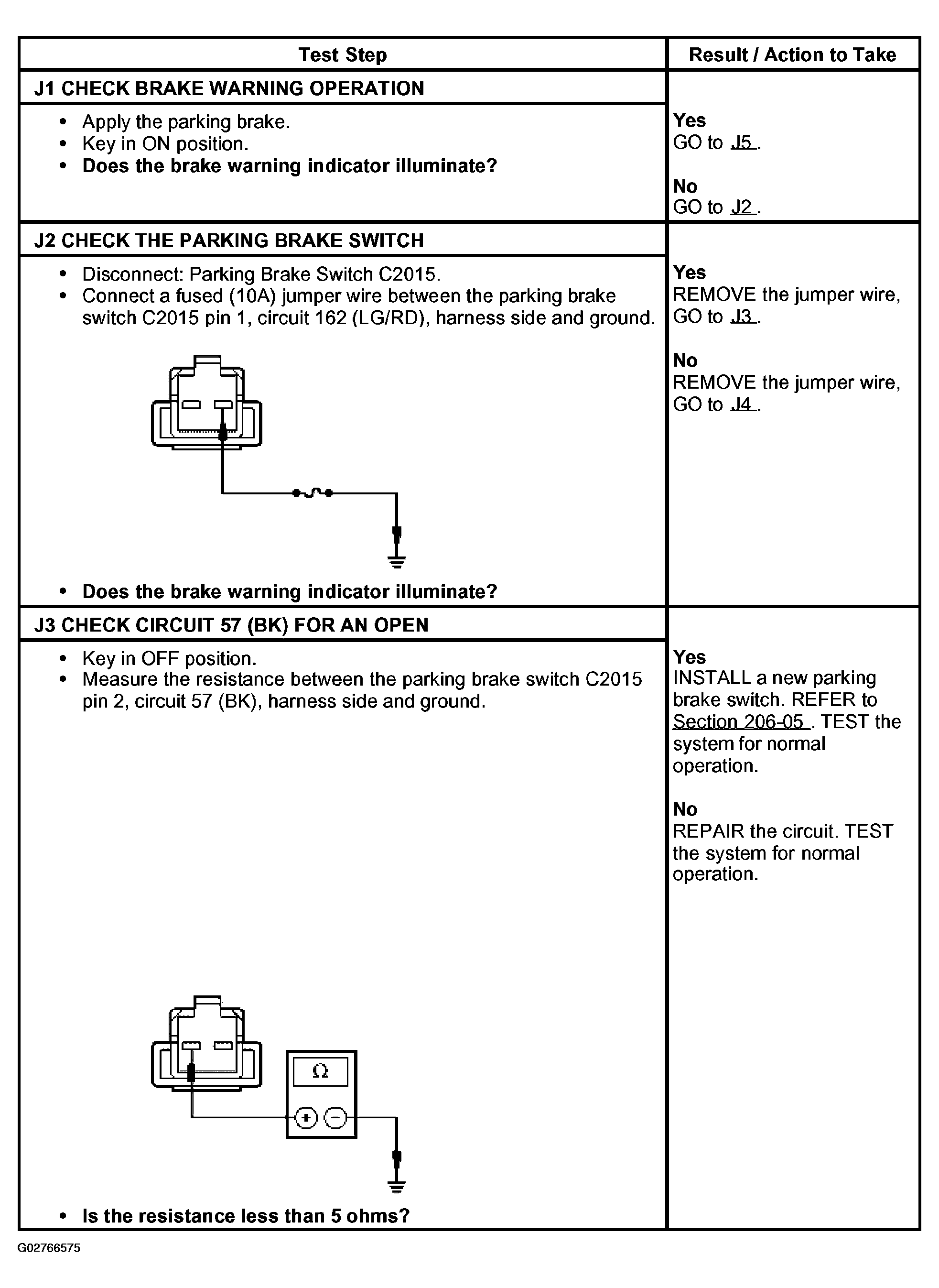

Fig 1: Pinpoint Test J: The Brake Warning Indicator Is Never On (Steps J1-J3)
G02766575Courtesy of FORD MOTOR CO.

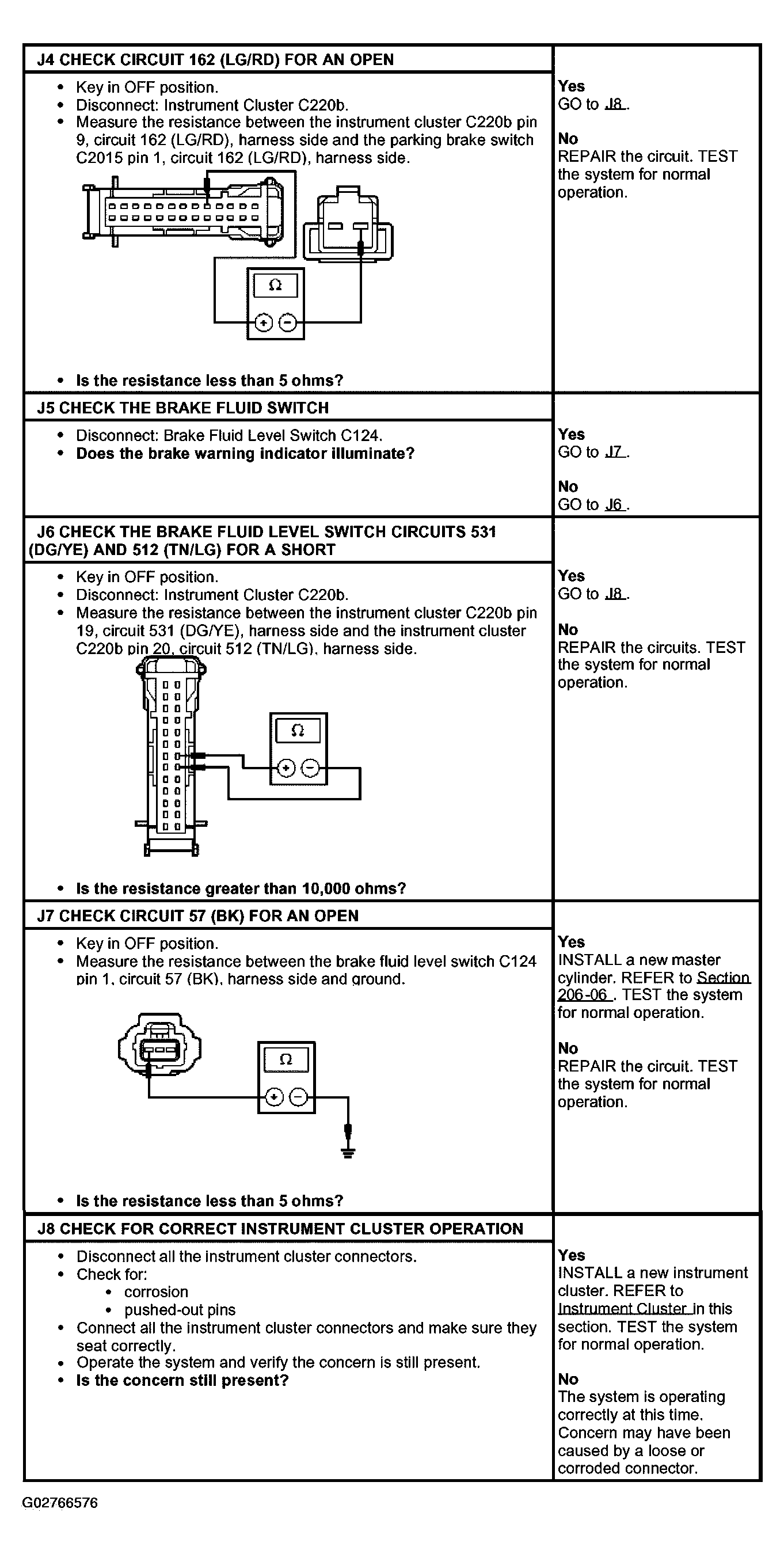

Fig 2: Pinpoint Test J: The Brake Warning Indicator Is Never On (Steps J4-J8)
G02766576Courtesy of FORD MOTOR CO.
