Pinpoint Test B: Incorrect Fuel Gauge Indication

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

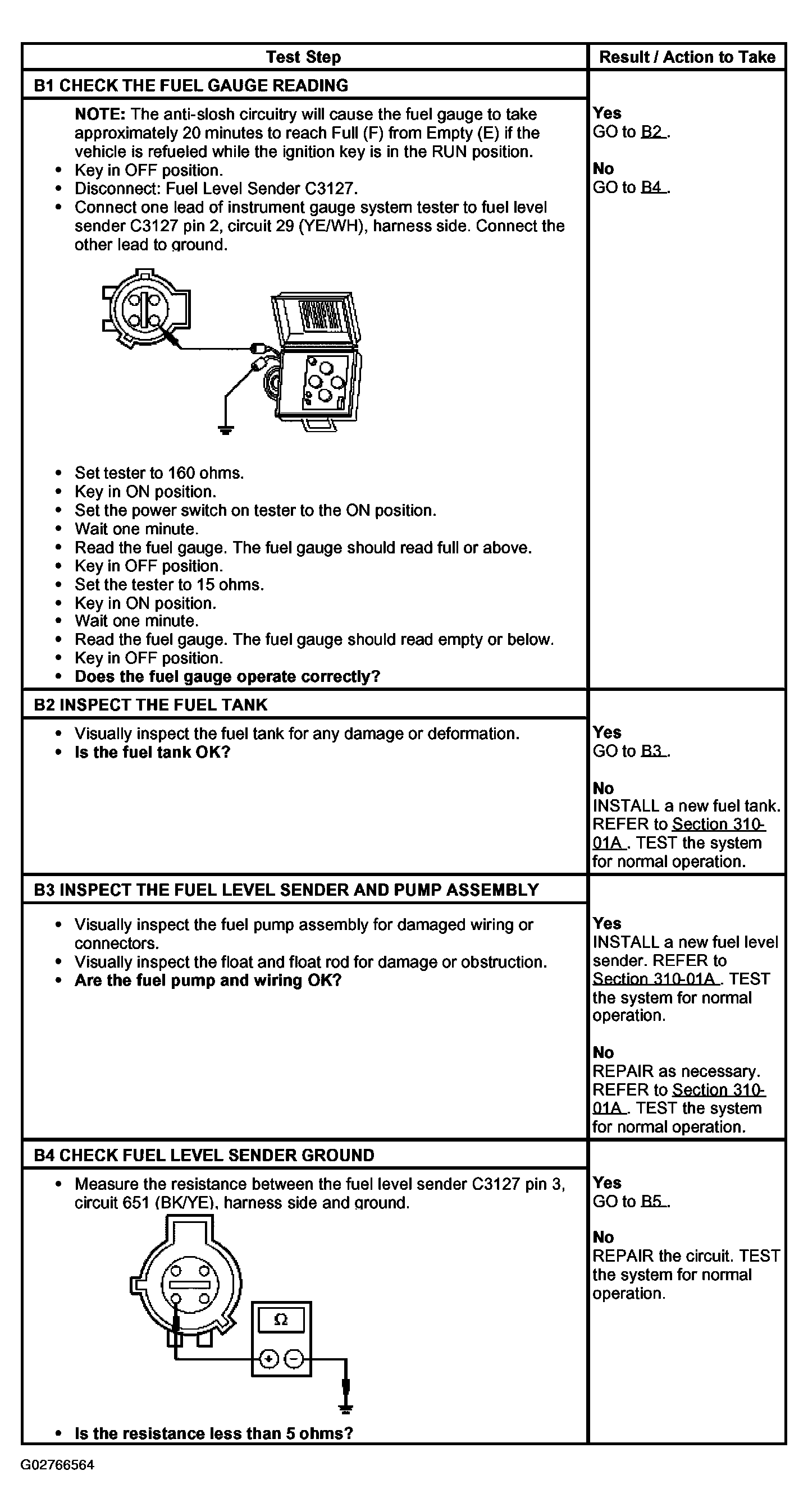

Fig 1: Pinpoint Test B: Incorrect Fuel Gauge Indication (Steps B1-B4)
G02766564Courtesy of FORD MOTOR CO.

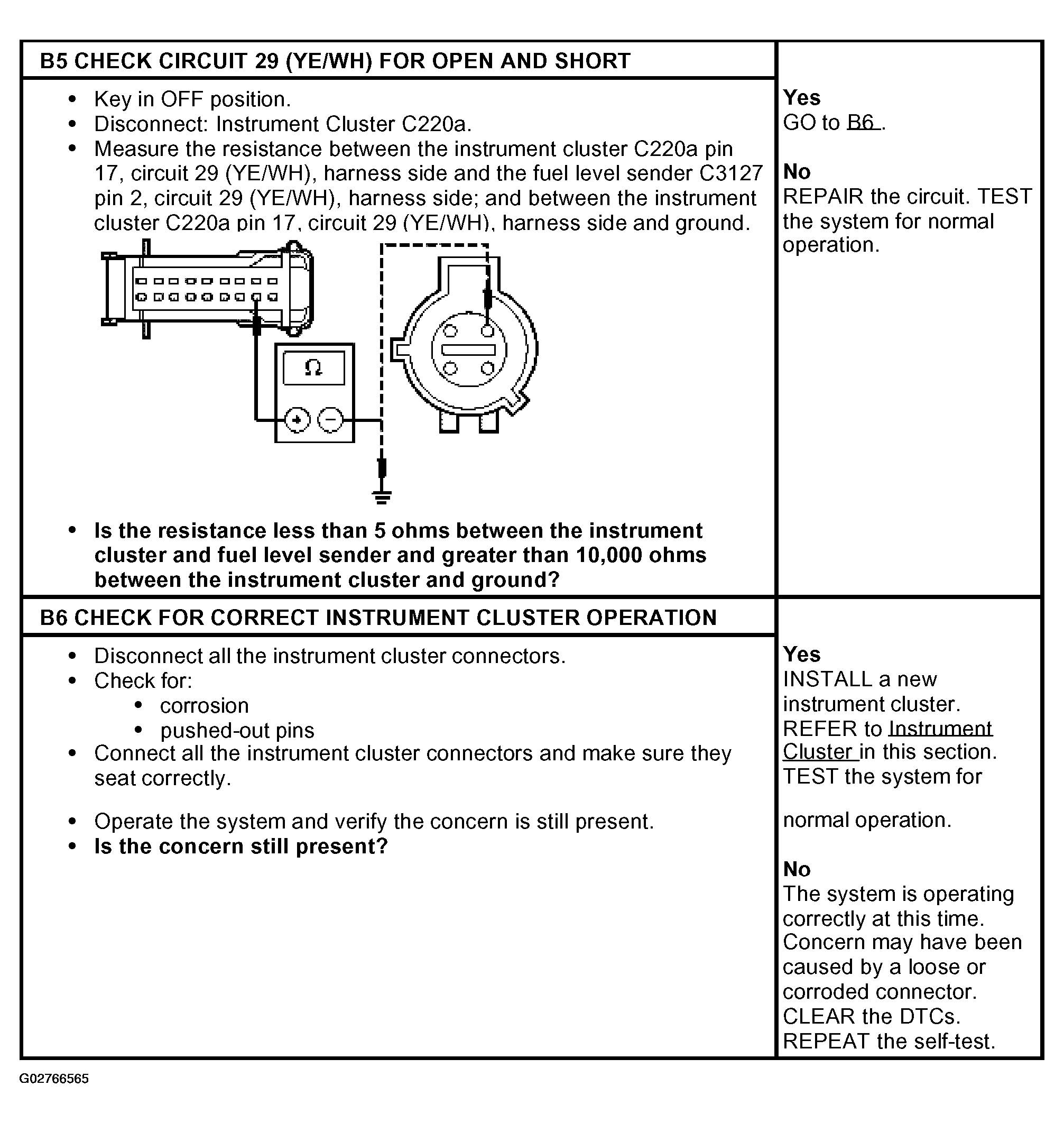

Fig 2: Pinpoint Test B: Incorrect Fuel Gauge Indication (Steps B5-B6)
G02766565Courtesy of FORD MOTOR CO.
