Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refrigerant Compressor Oil (Mineral Oil) F73Z-19577-AA (Motorcraft YN-9-A) should be used to lubricate R-134a refrigerant system O-ring seals only and should not be added to R-134a refrigerant systems as an AC compressor lubricant. PAG Refrigerant Compressor Oil F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B only should be used as an A/C compressor lubricant.
NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.
  1. Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  2. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
    3. NOTE: Access the compressor manifold and tube assembly bolt from the RH front fender well, between the frame and body.
    Fig 1: Discarding O-Ring Seals
    G02766478Courtesy of FORD MOTOR CO.
  3. Loosen the bolt and detach the compressor manifold and tube assembly from the A/C compressor.
    • Discard the O-ring seals.
  4. Remove the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  5. Disconnect the pressure cutoff switch electrical connector.
    Fig 2: Disconnecting Pressure Cutoff Switch Electrical Connector
    G02766479Courtesy of FORD MOTOR CO.
    6. CAUTION: Use a wrench on each side of the fitting to prevent damage to the A/C fitting.

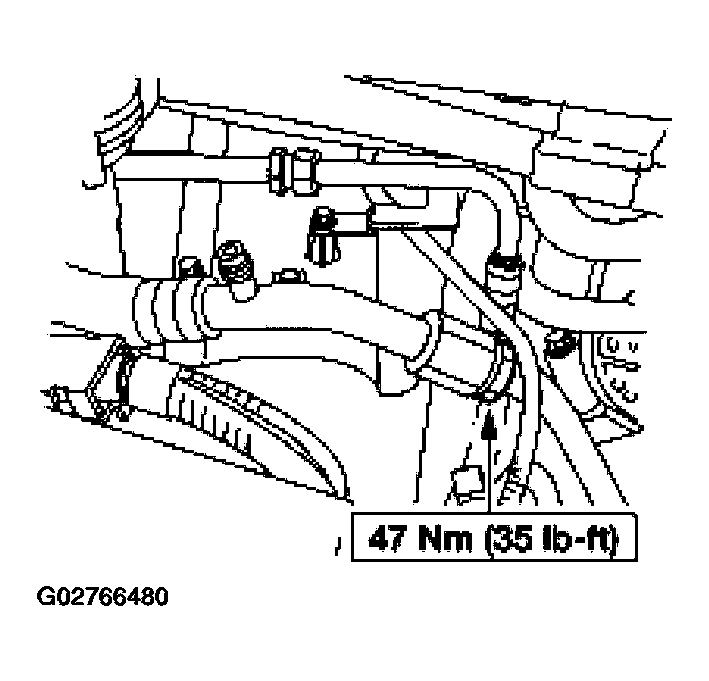

    Fig 3: Discarding O-Ring Seal
    G02766480Courtesy of FORD MOTOR CO.
  6. Disconnect the compressor manifold and tube assembly from the suction accumulator.
    • Discard the O-ring seal.
    7. CAUTION: Use a wrench on each side of the fitting to prevent damage to the A/C fitting.

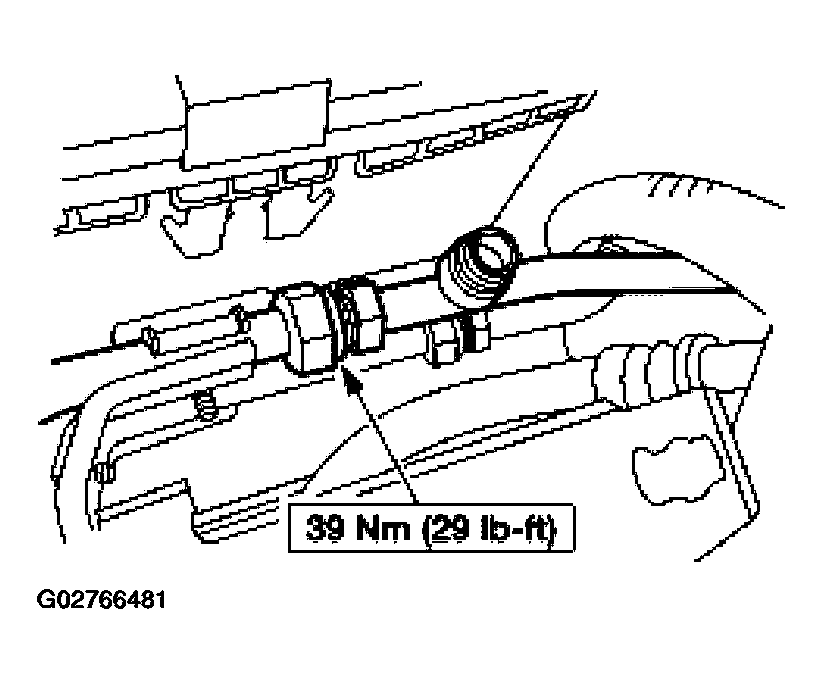

    Fig 4: Discarding O-Ring Seal
    G02766481Courtesy of FORD MOTOR CO.
  7. Disconnect the compressor manifold and tube assembly from the condenser and remove the compressor manifold and tube assembly.
    • Discard the O-ring seal.
  8. To install, reverse the removal procedure.
    • Install new O-ring seals lubricated in clean mineral oil.
    • Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
  9. Evacuate, leak test, and charge the refrigerant system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
