Tube-O Fitting
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

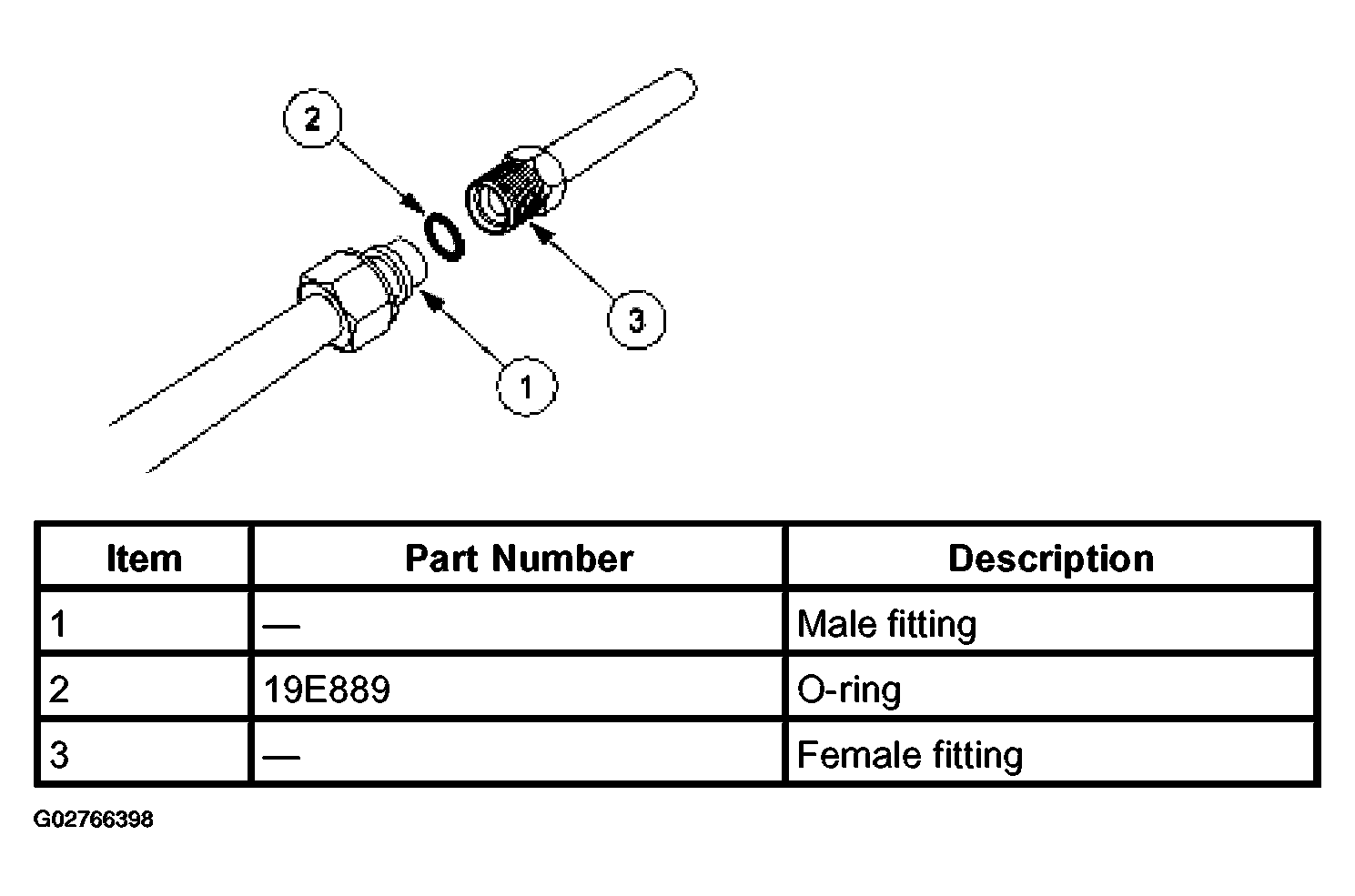

When disconnecting or connecting tube-O fittings, observe the following.
- The male and female portions of the fitting are retained with a nut.
- Support the female fitting with a wrench to prevent twisting of the tubes when disconnecting.
- An O-ring seal is installed around the tube on the male side of the fitting.
- Use only the O-ring seal listed in the Ford Master Parts Catalog.
