Service Gauge Port Valves
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

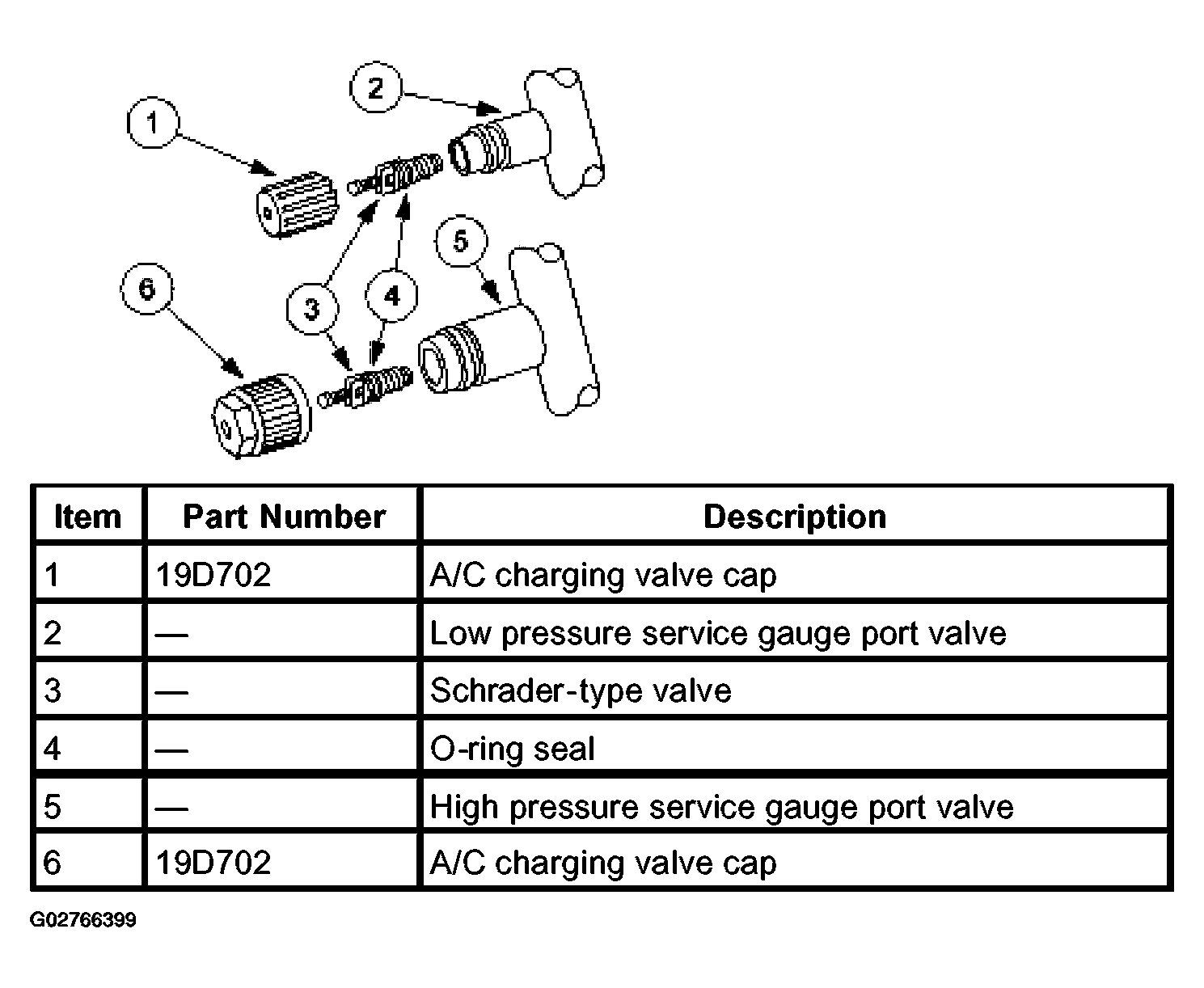

The high pressure service gauge port valve is located on the compressor manifold and tube assembly.
The low pressure service gauge port valve is located on the suction accumulator.
The fitting is an integral part of the refrigeration line or component.
- Special couplings are required for both the high side and low side service gauge ports.
- A new Schrader-type valve core can be installed if the seal leaks.
- Always install the A/C charging valve cap (19D702) on the service gauge port valves after repairing the refrigerant system.
