New Generation Star Tester
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

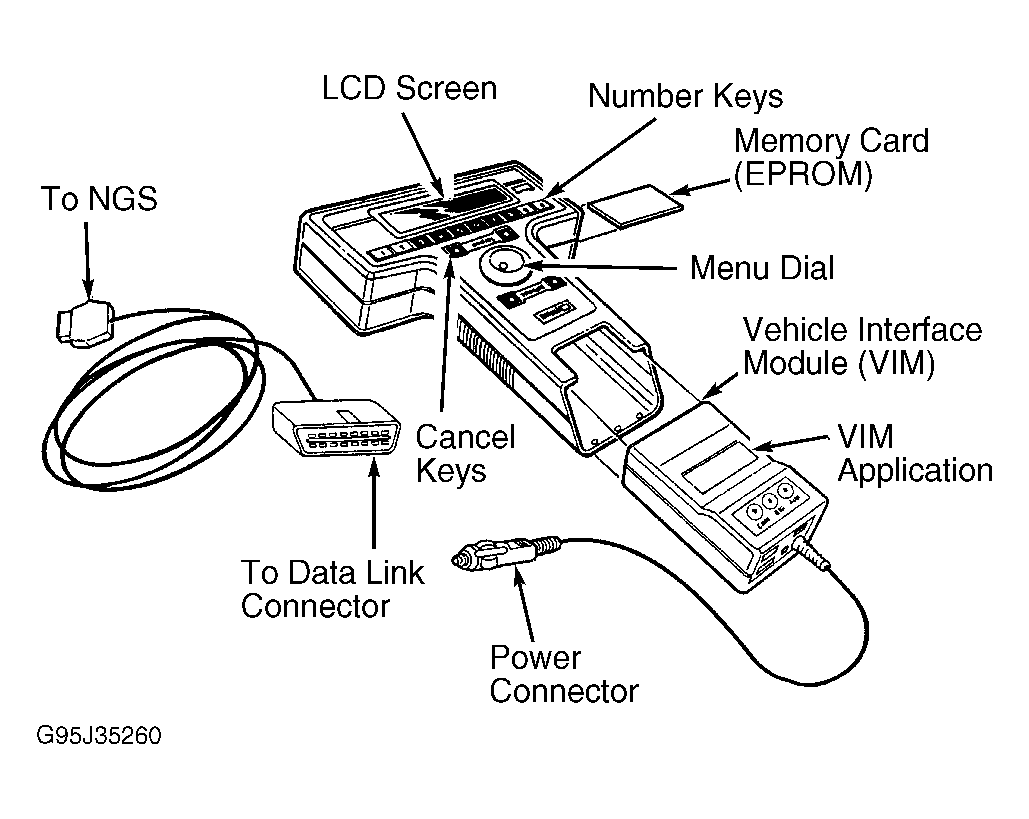

Turn ignition off. Ensure proper memory (EPROM) card is inserted into New Generation Star (NGS) tester. Connect service connectors of adapter cable to vehicle Data Link Connector (DLC) and NGS tester. See Fig 1. Connect NGS tester power supply cable to vehicle battery power supply through cigarette lighter, at vehicle battery with alligator clip adapter, at dashboard power point or into pigtail power connector attached to DLC adapter cable and go to KOEO ON-DEMAND SELF-TEST .
