Air Conditioning (A/C) Clutch Air Gap Adjustment

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the A/C clutch air gap at three equally spaced places between the clutch plate and the A/C clutch pulley.

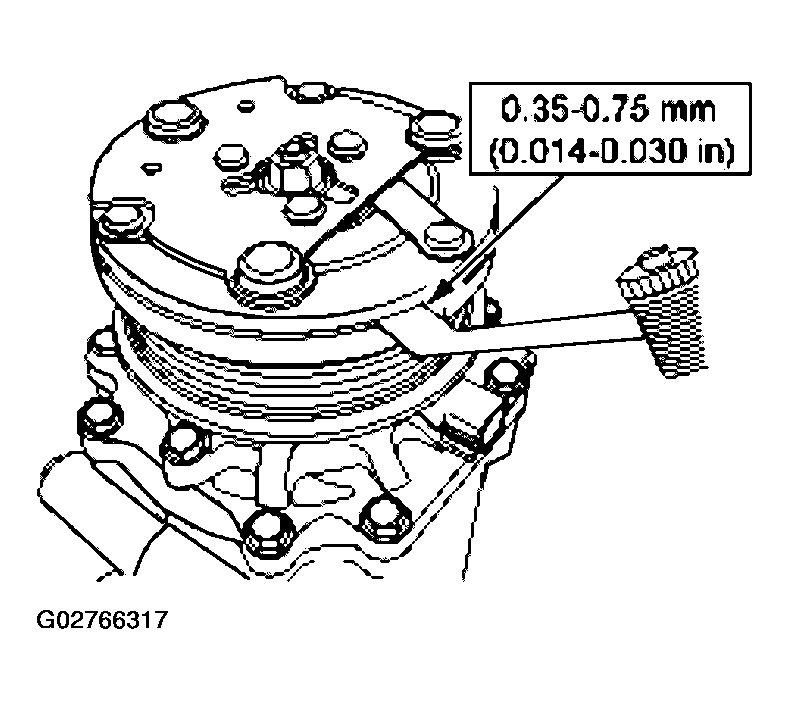

    Fig 1: Checking A/C Clutch Air Gap Equally Spaced Places Between Clutch Plate
    G02766317Courtesy of FORD MOTOR CO.
  2. Remove the clutch plate. Add or remove spacers between the clutch plate hub and the compressor shaft until the clearance is within specification.
