Pinpoint Test K: The Auxiliary Blower Motor Is Inoperative

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

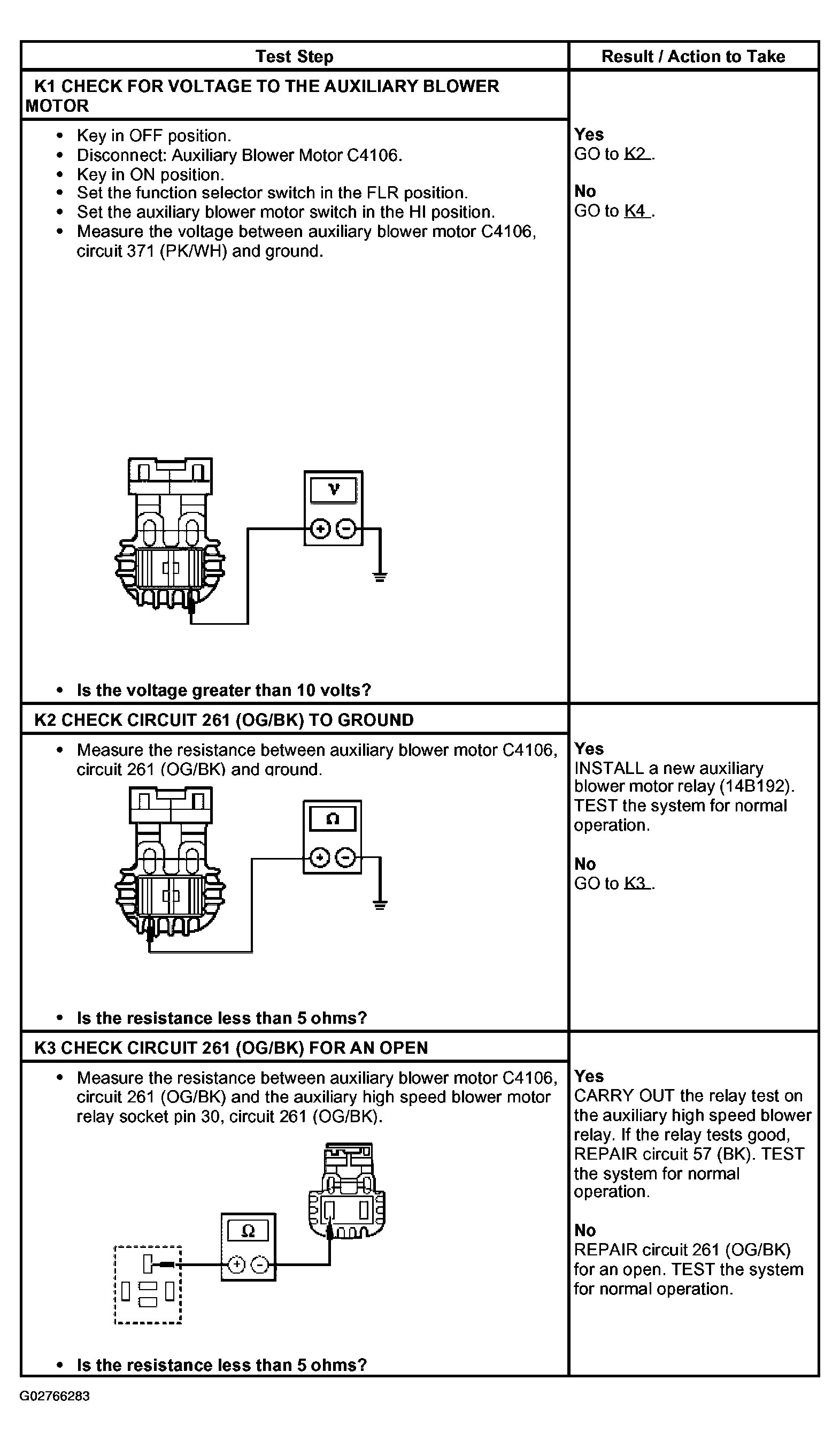

Fig 1: Pinpoint Test K: Auxiliary Blower Motor Is Inoperative (Step K1-K3)
G02766283Courtesy of FORD MOTOR CO.

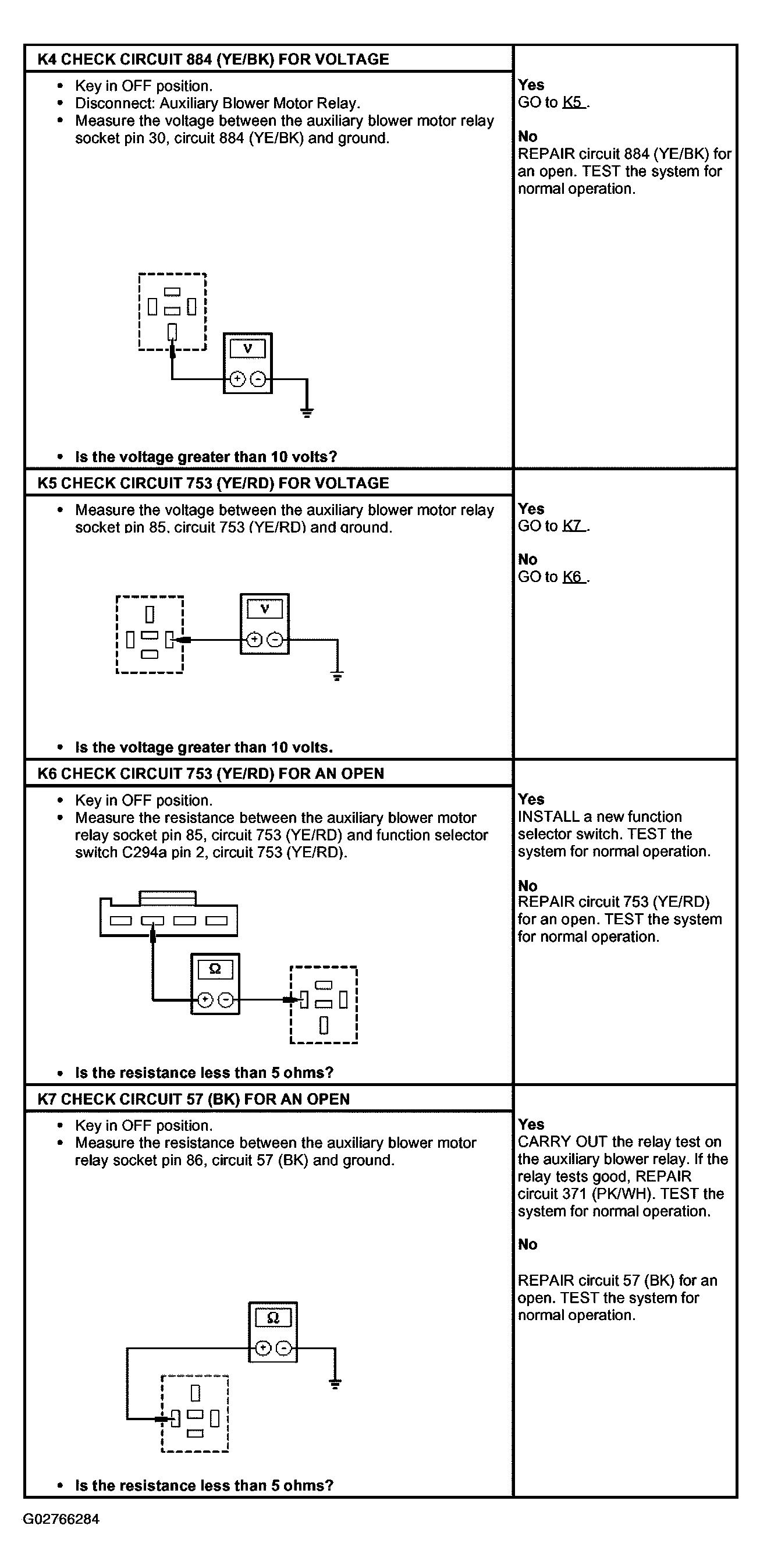

Fig 2: Pinpoint Test K: Auxiliary Blower Motor Is Inoperative (Step K4-K7)
G02766284Courtesy of FORD MOTOR CO.
