Pinpoint Test B: Insufficient, Erratic, Or No Heat

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

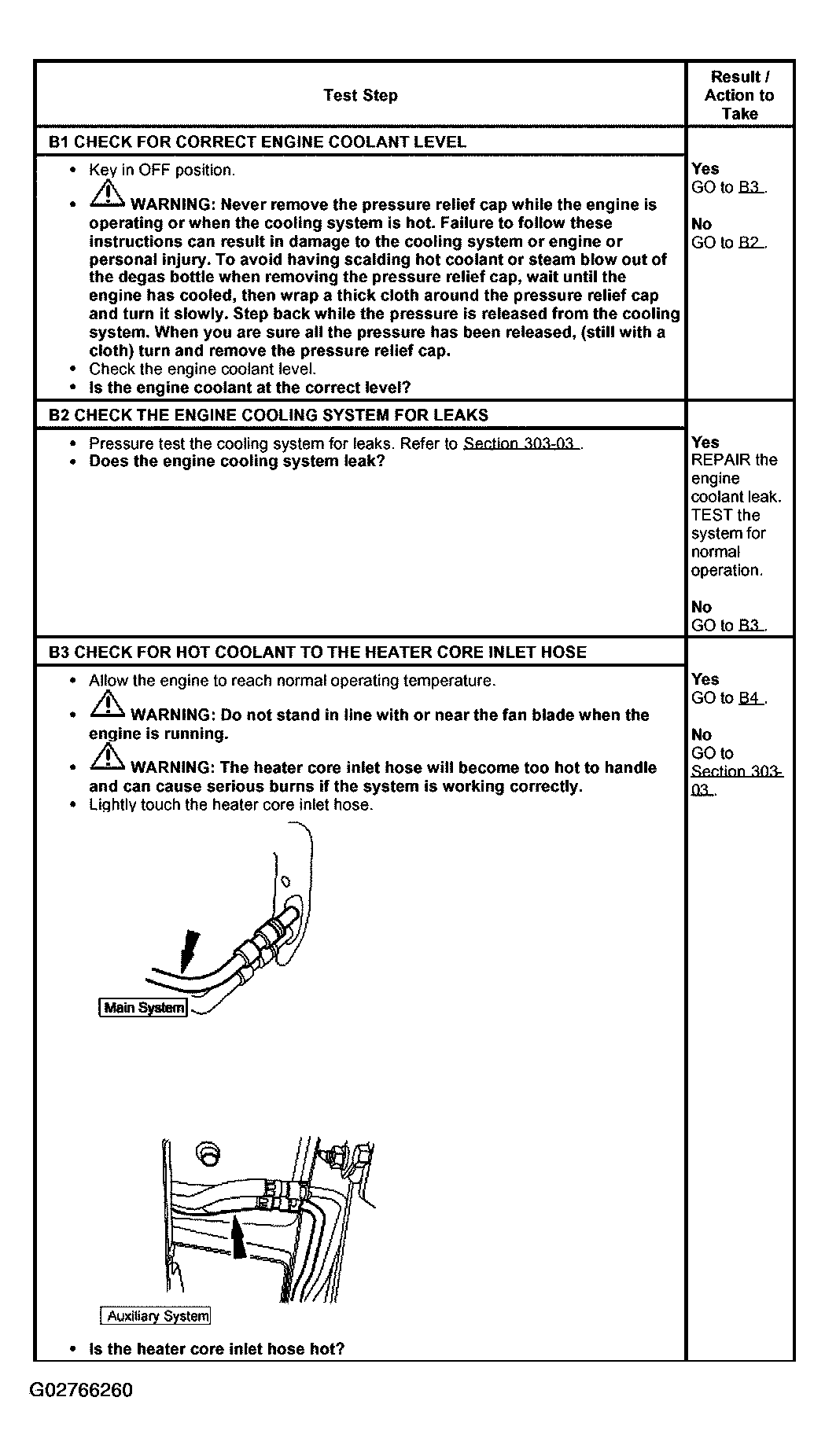

Fig 1: Pinpoint Test B: Insufficient, Erratic, Or No Heat (Step B1-B3)
G02766260Courtesy of FORD MOTOR CO.

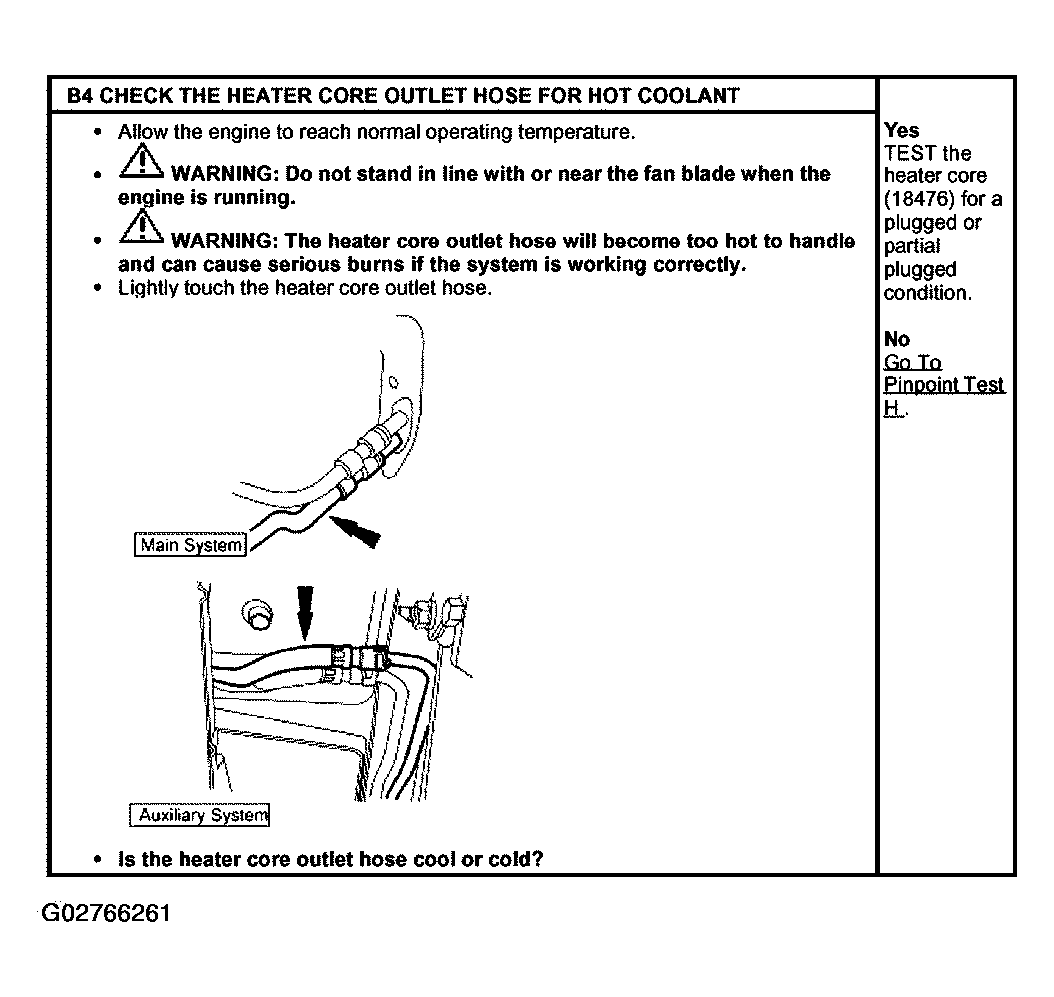

Fig 2: Pinpoint Test B: Insufficient, Erratic, Or No Heat (Step B4)
G02766261Courtesy of FORD MOTOR CO.
