Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold the accelerator pedal in place and disconnect the accelerator cable from the accelerator pedal and shaft.
    Fig 1: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
    G02766197Courtesy of FORD MOTOR CO.
  2. Remove the bolts and the accelerator pedal and shaft.

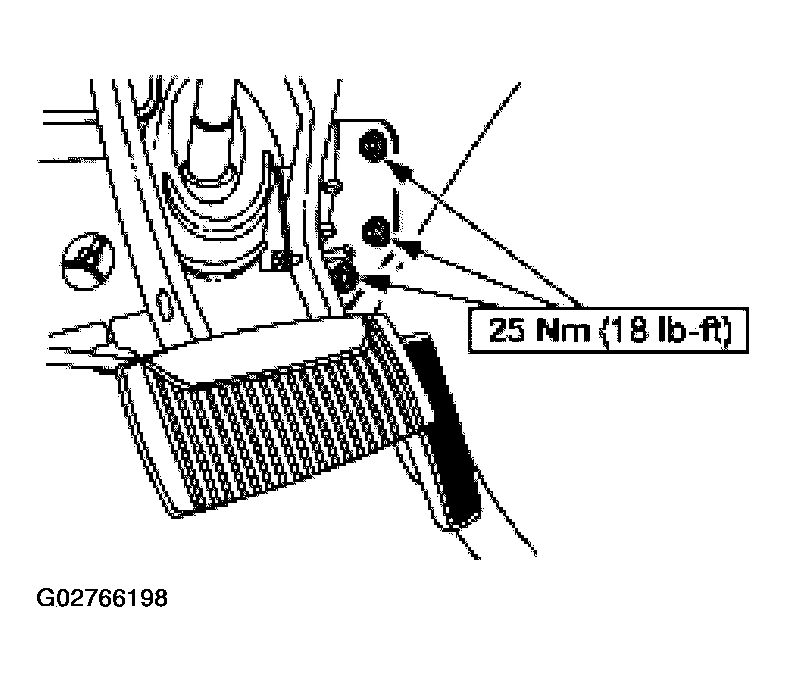

    Fig 2: Removing/Installing Accelerator Pedal And Shaft
    G02766198Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
