Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The accelerator pedal and sensor assembly is a non-adjustable, calibrated unit and must be handled with care.
NOTE: The red clip must be pulled out before disconnecting the electrical connector.
  1. Disconnect the accelerator pedal position sensor electrical connector.

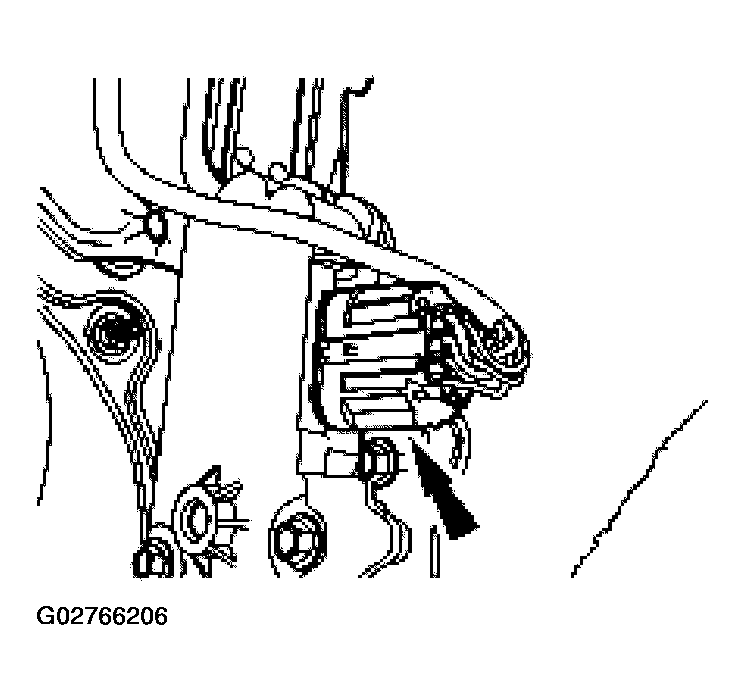

    Fig 1: Disconnecting Accelerator Pedal Position Sensor Electrical Connector
    G02766206Courtesy of FORD MOTOR CO.
  2. Remove the two bolts and slide the accelerator pedal and sensor assembly up and off the anchor bolt.
    Fig 2: Removing Accelerator Pedal Assembly
    G02766207Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
