Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat. For additional information, refer to SEATING .

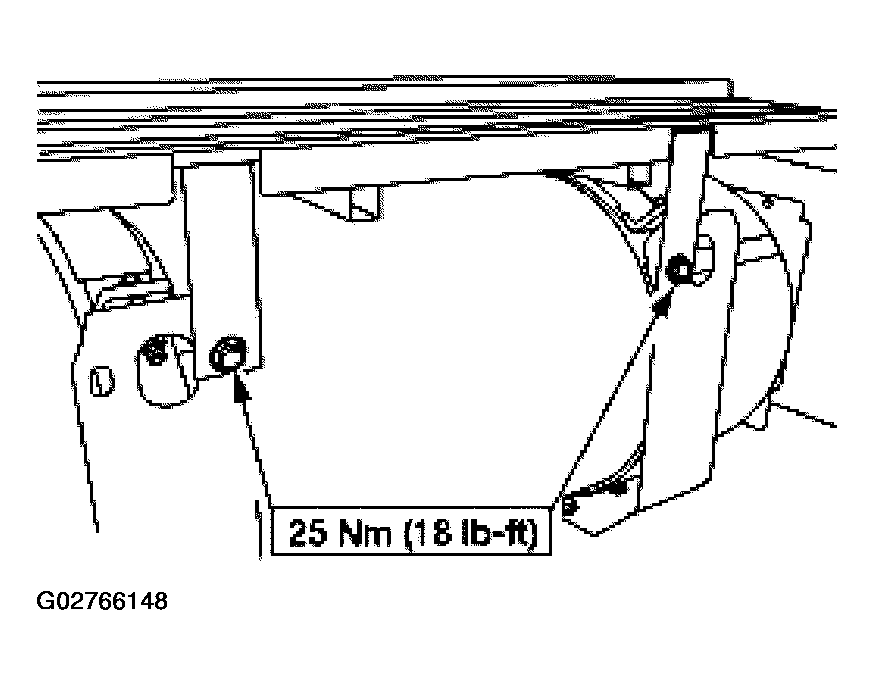

Remove the bolts and nuts.

Fig 1: Remove The Bolts And Nuts
Courtesy of FORD MOTOR CO.
Remove the bolts and the partition separator.

Fig 2: Removing Partition Separator
Courtesy of FORD MOTOR CO.
Remove the bolts.

Fig 3: Removing Bolts
Courtesy of FORD MOTOR CO.
Remove the bolts and the frame and shield assembly.

Fig 4: Removing Frame And Shield Assembly
Courtesy of FORD MOTOR CO.
Remove the bolts and the fuel tank straps.

Fig 5: Removing Fuel Tank Straps
Courtesy of FORD MOTOR CO.
To install, follow the removal procedure in reverse order.
