Fuel Tank Pressure Sensor: Removal
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Carry out the Pressure Relief - Fuel Tube Venting procedure. Refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

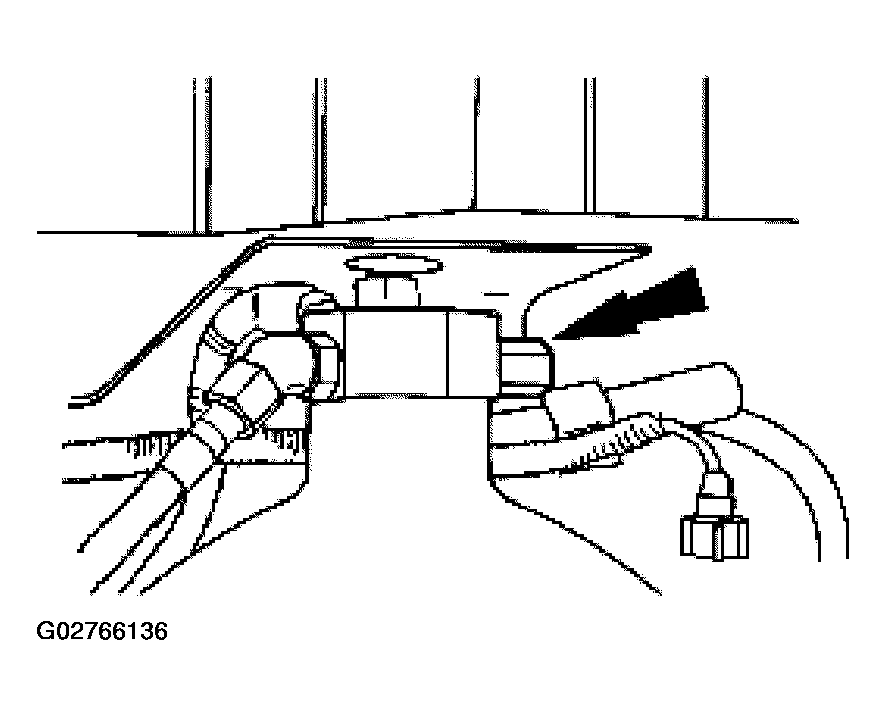

- Remove the fuel tank pressure sensor.
- Disconnect the fuel tank pressure sensor electrical connector.
- Remove the fuel tank pressure sensor.
- Remove the fuel tank pressure sensor spacer (if necessary).
