Fuel Tank Pressure Sensor: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Replace the fuel tank pressure sensor spacer O-ring seal.

NOTE: Lubricate the fuel tank pressure sensor spacer O-ring seal with clean engine oil prior to installation.

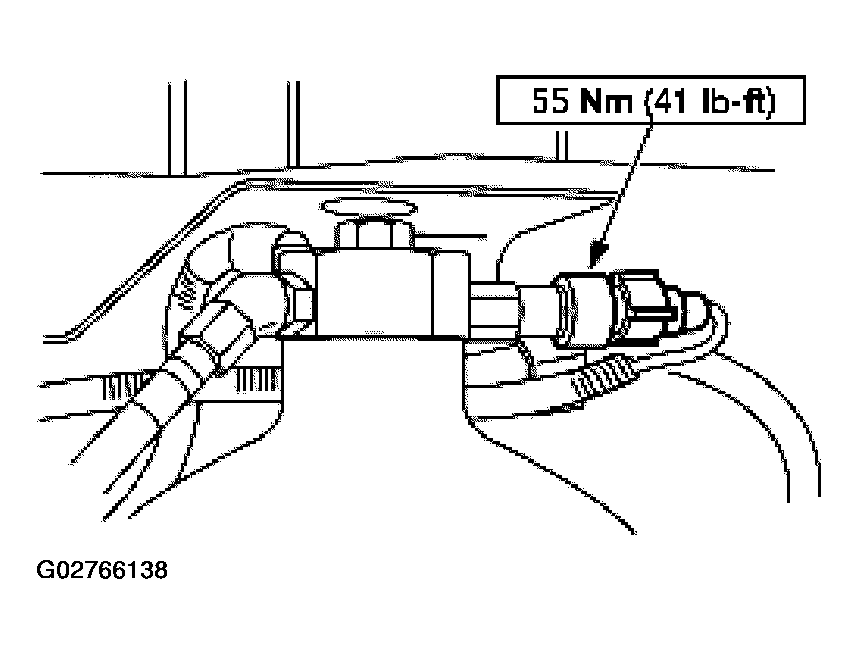

Fig 1: Tightening Torque Of Fuel Tank Pressure Sensor Spacer

Courtesy of FORD MOTOR CO.

Install the fuel tank pressure sensor spacer (if necessary).

NOTE: Replace the fuel tank pressure sensor O-ring seal.

NOTE: Lubricate the fuel tank pressure sensor O-ring seal with clean engine oil prior to installation.

Fig 2: Tightening Torque Of Fuel Tank Pressure Sensor

Courtesy of FORD MOTOR CO.

Install the fuel tank pressure sensor.
- Install the fuel tank pressure sensor.
- Connect the fuel tank pressure sensor electrical connector.
Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Carry out the Fuel System Leak Test procedure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .
