Fuel Tank Filler Valve: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carry out the Pressure Relief - Fuel Tube Venting procedure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .
  2. Remove the fuel filler valve retaining bolts.
    Fig 1: Removing Fuel Filler Valve Retaining Bolts
    G02766155Courtesy of FORD MOTOR CO.
  3. Remove the fuel filler valve.
    1. Disconnect the high-pressure fuel tube from the fuel filler valve.
    2. Remove the fuel filler valve.

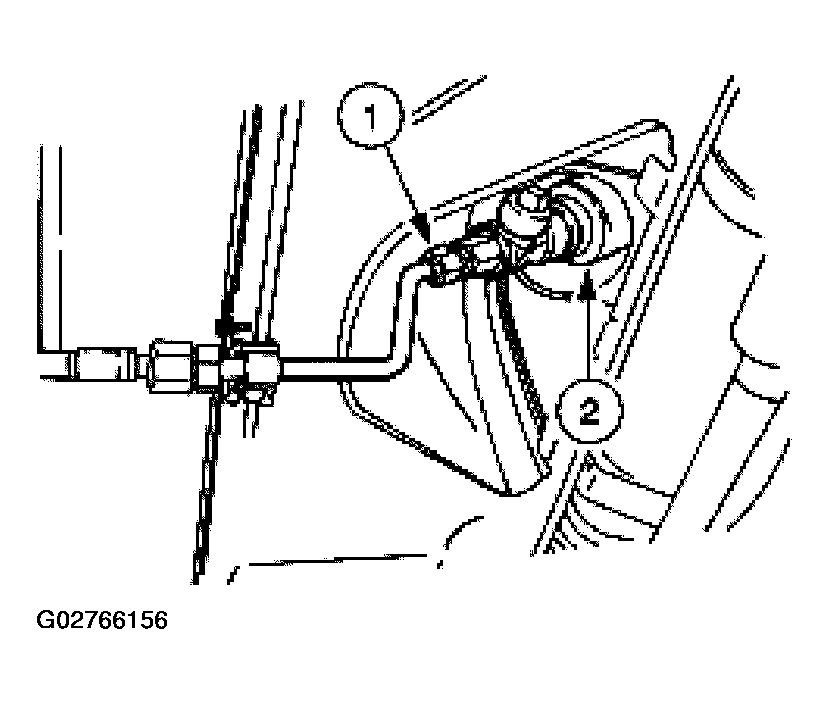

    Fig 2: Removing Fuel Filler Valve
    G02766156Courtesy of FORD MOTOR CO.
