Fuel Tank - Rear Aft-Axle: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the aft-axle fuel tank assembly. For additional information, refer to FUEL TANK - AFT-AXLE ASSEMBLY .
  2. Disconnect the fuel tank balance tube from the rear aft-axle fuel tank solenoid valve.
    Fig 1: Disconnecting Fuel Tank Balance Tube From Rear Aft-Axle Fuel Tank Solenoid Valve
    G02766131Courtesy of FORD MOTOR CO.
  3. Remove the rear aft-axle fuel tank.
    1. Remove the fuel tank support strap retaining nuts.
    2. Remove the rear aft-axle fuel tank.

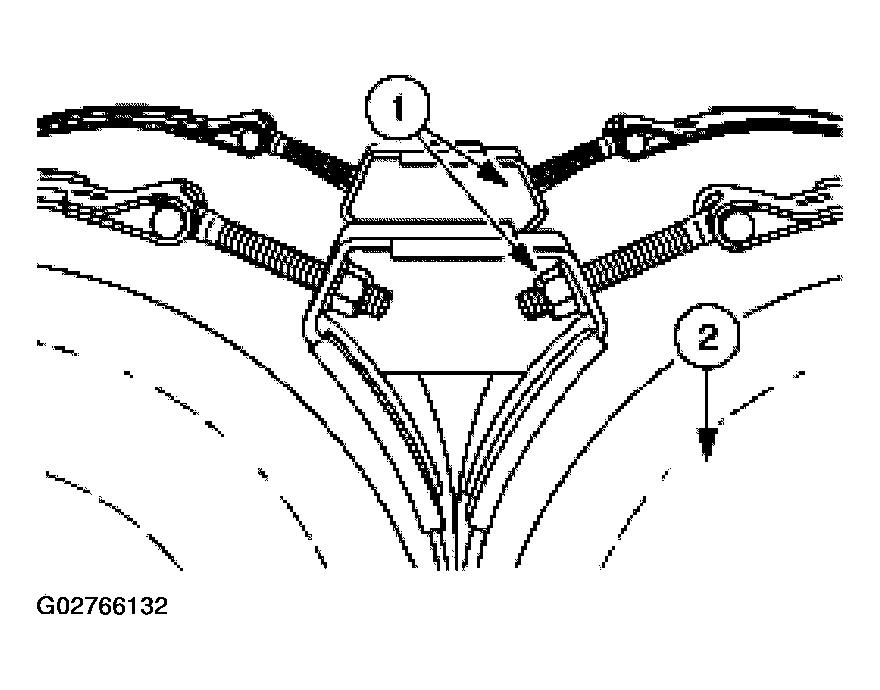

    Fig 2: Removing Rear Aft-Axle Fuel Tank
    G02766132Courtesy of FORD MOTOR CO.
