Pinpoint Test A: Fuel Tank Solenoid Status

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

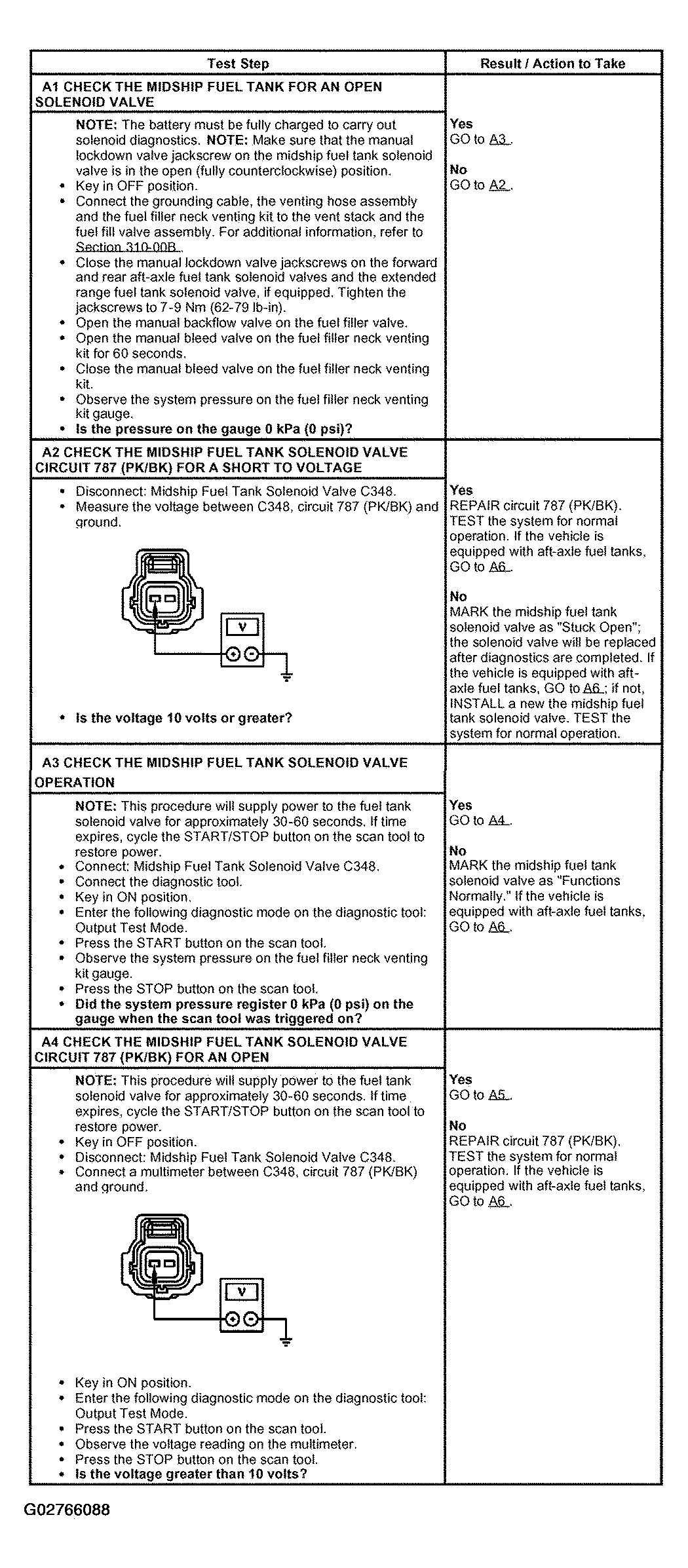

Fig 1: Pinpoint Test A: Fuel Tank Solenoid Status (Step A1-A4)

Courtesy of FORD MOTOR CO.

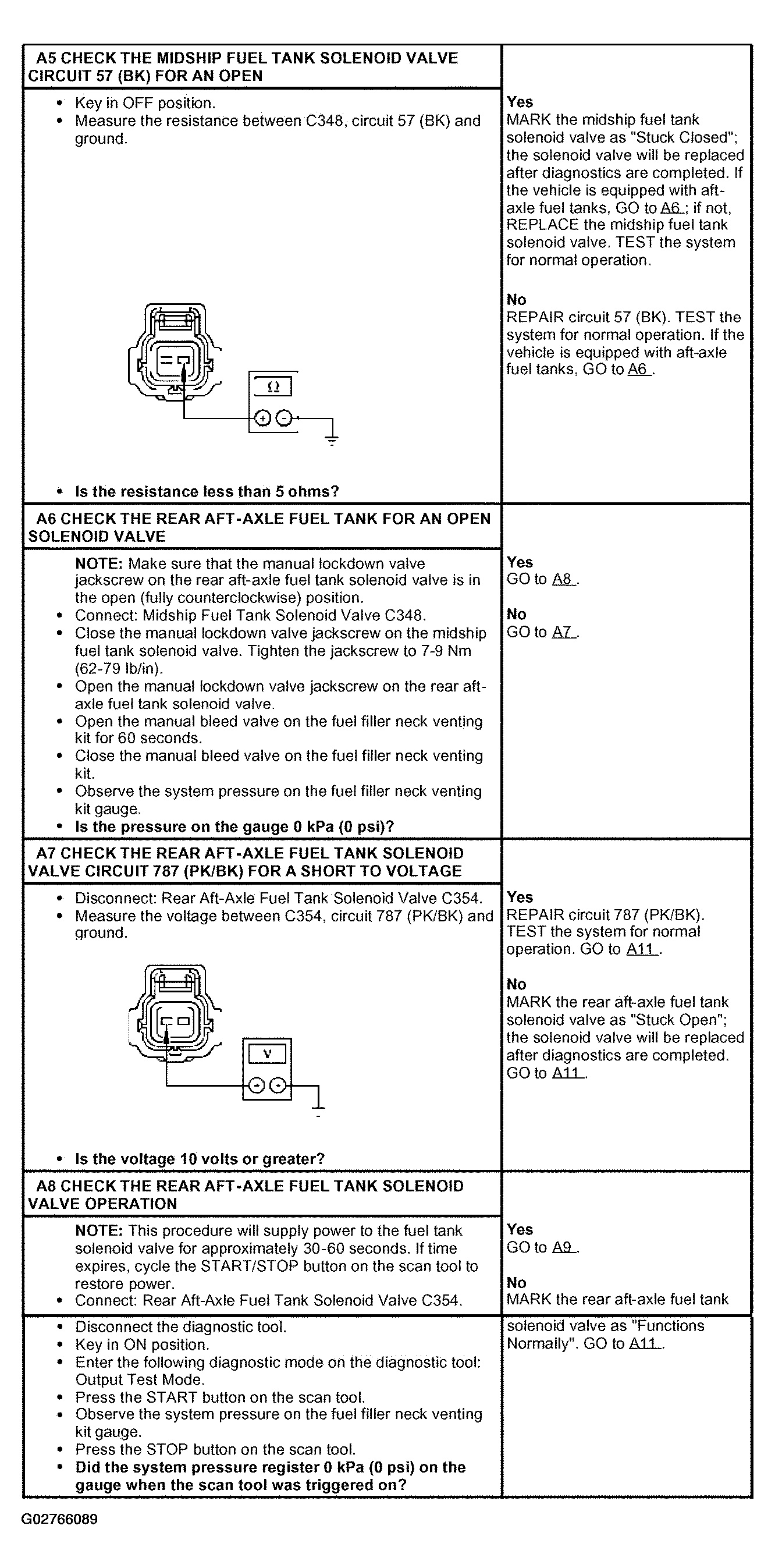

Fig 2: Pinpoint Test A: Fuel Tank Solenoid Status (Step A5-A8)

Courtesy of FORD MOTOR CO.

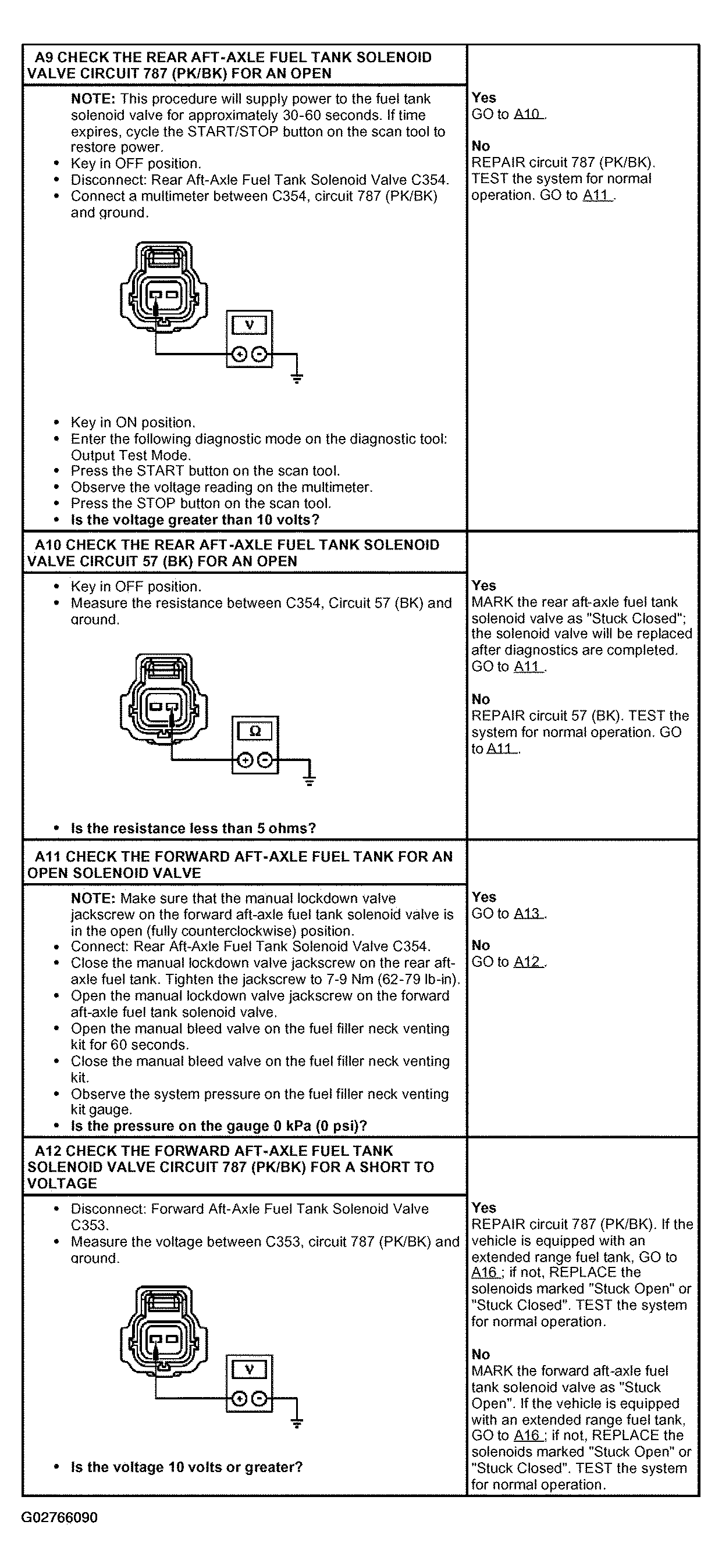

Fig 3: Pinpoint Test A: Fuel Tank Solenoid Status (Step A9-A12)

Courtesy of FORD MOTOR CO.

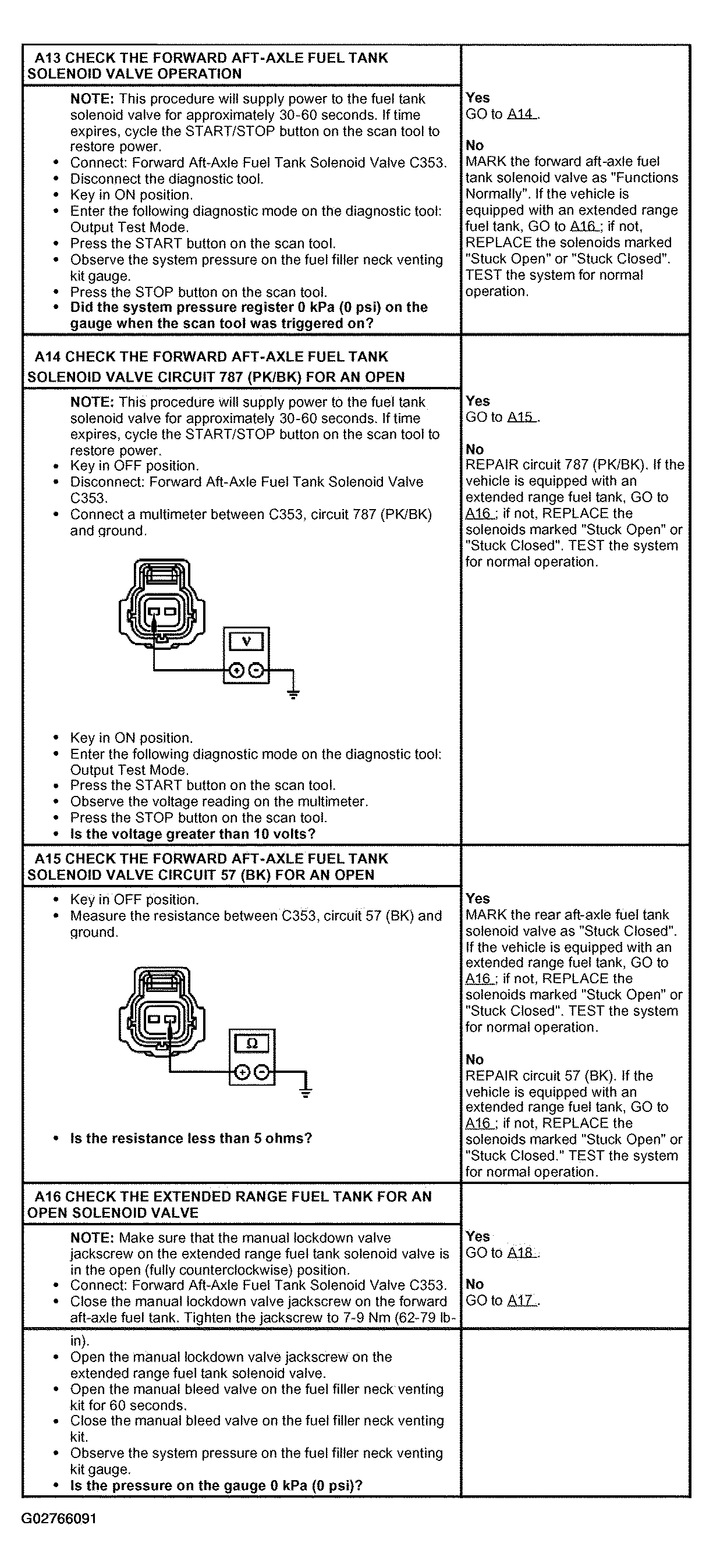

Fig 4: Pinpoint Test A: Fuel Tank Solenoid Status (Step A13-A16)

Courtesy of FORD MOTOR CO.

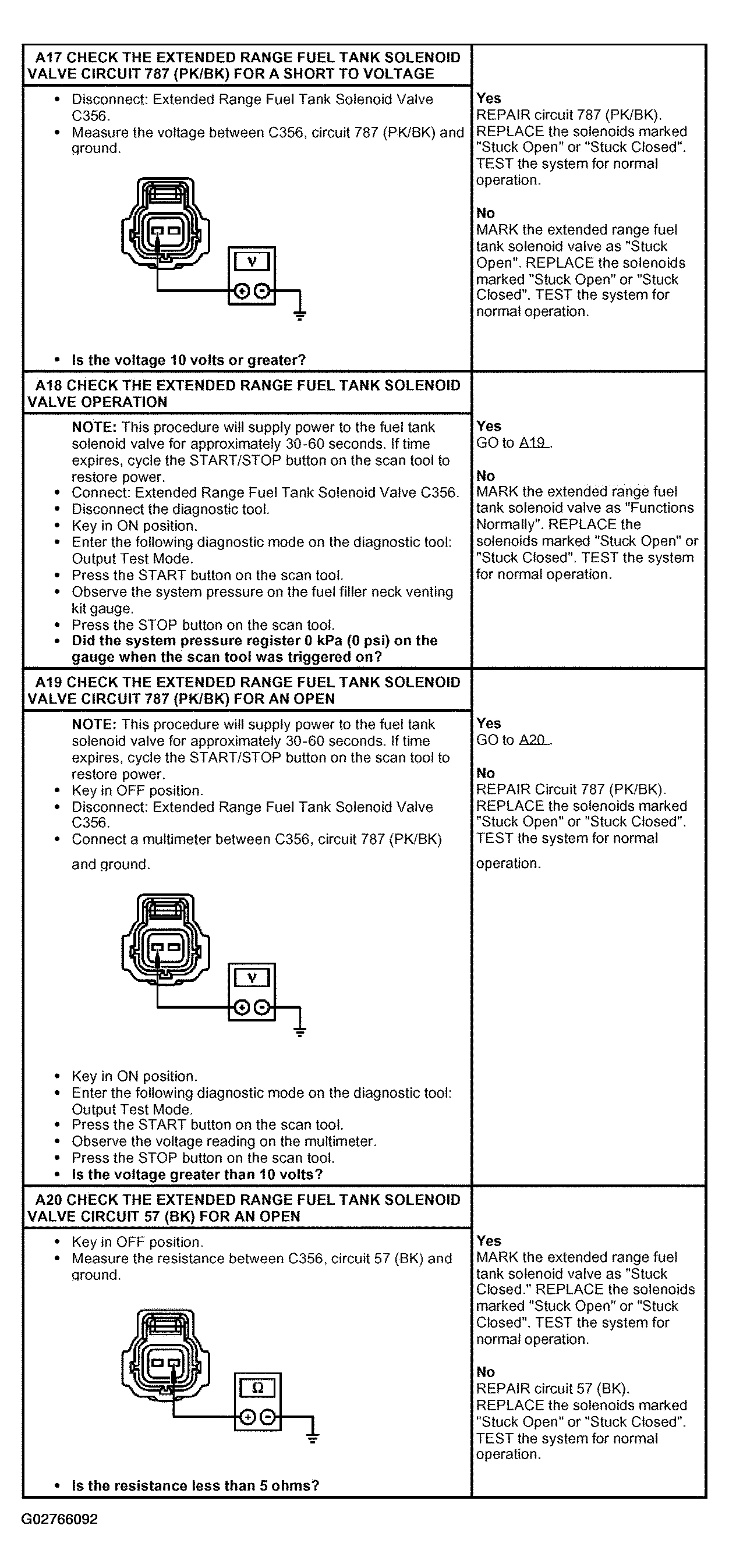

Fig 5: Pinpoint Test A: Fuel Tank Solenoid Status (Step A17-A20)

Courtesy of FORD MOTOR CO.
