Inspection and Verification

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the concern by running the engine (with the vehicle on the ground) or road testing the vehicle to duplicate the condition.
  2. Visually inspect the components of the exhaust system and related controls that may affect exhaust gas quality or loss of power.
  3. Visually inspect for obvious signs of mechanical damage. Refer to the following chart.

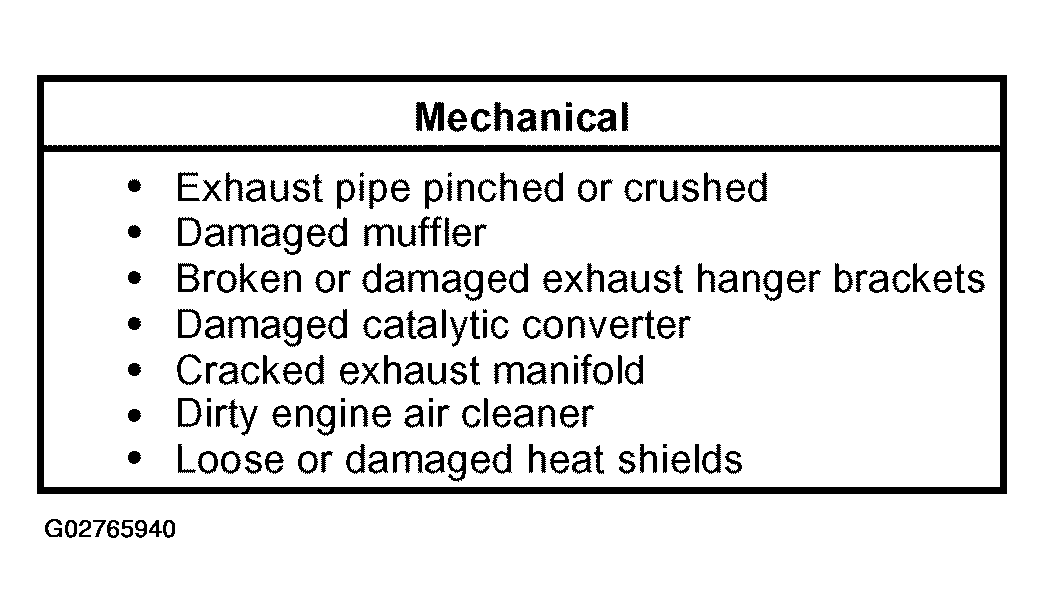

    VISUAL INSPECTION CHART

    Fig 1: Visual Inspection Chart
    G02765940Courtesy of FORD MOTOR CO.
  4. Verify that the exhaust system is installed correctly, with clamps correctly located and tightened to specification.
  5. If the fault is not visually evident, determine the symptom. GO to SYMPTOM CHART .
