Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster opening finish panel assembly.
    Fig 1: Removing Instrument Panel Cluster Opening Finish Panel Assembly
    G02765930Courtesy of FORD MOTOR CO.
  2. Remove the ignition switch lock cylinder (11582).
    1. Position the lock cylinder to RUN.
    2. Using a suitable tool, push upward on the cylinder release tab through the hole in the lower shroud while pulling the cylinder outward.
    Fig 2: Removing Ignition Switch Lock Cylinder
    G02765931Courtesy of FORD MOTOR CO.
  3. Remove the upper steering column shroud.

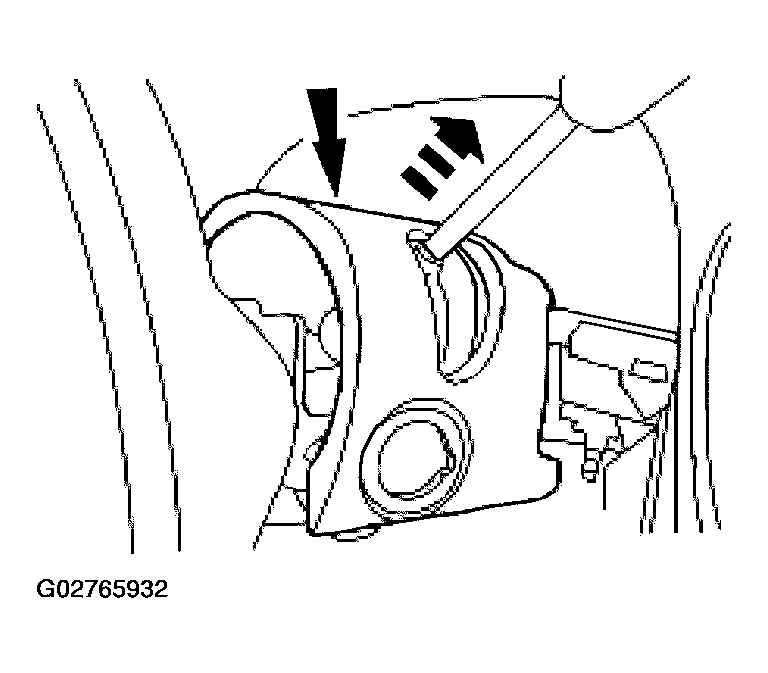

    Fig 3: Removing Upper Steering Column Shroud
    G02765932Courtesy of FORD MOTOR CO.
  4. Remove the transmission range selector lever. Disconnect the electrical connector.
    Fig 4: Removing Transmission Range Selector Lever
    G02765933Courtesy of FORD MOTOR CO.
    5. NOTE: Install a new transmission range selector lever pin whenever it is removed.
  5. To install, reverse the removal procedure.
