Transmission Cooling Components - 4R70W/4R75W Transmission

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

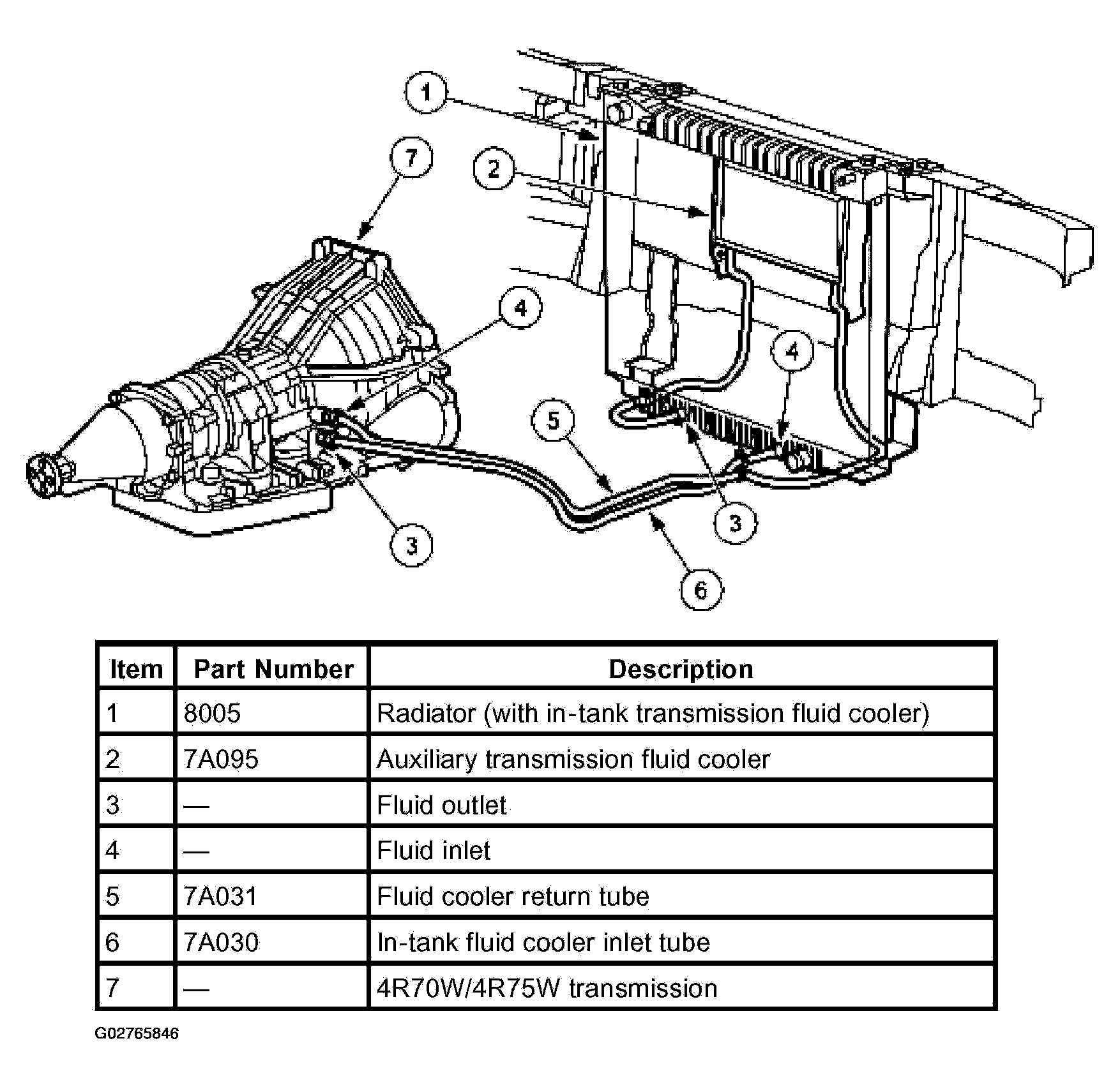

Fig 1: Identifying Transmission Cooling Components - 4R70W/4R75W Transmission
G02765846Courtesy of FORD MOTOR CO.
