Transmission Insulator and Retainer: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  2. Remove the two nuts, one bolt, and position the hanger aside.

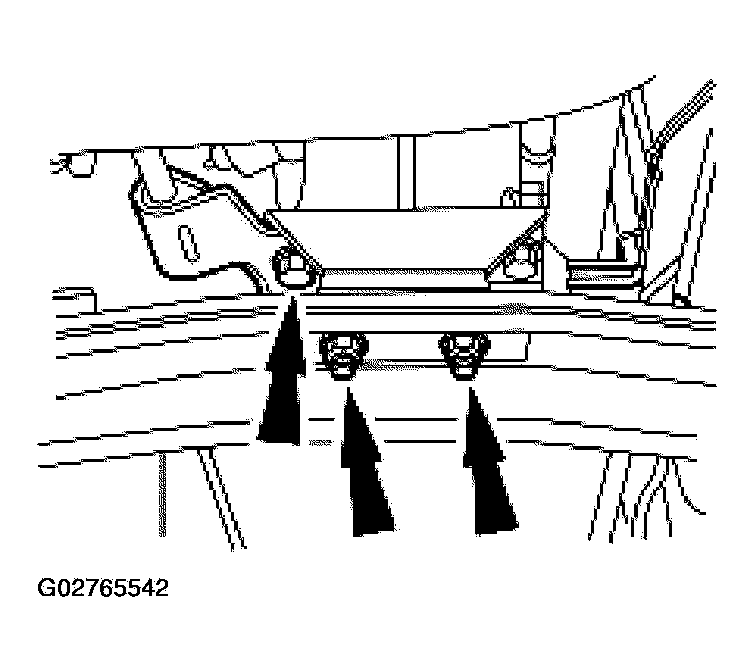

    Fig 1: Removing Nuts
    G02765542Courtesy of FORD MOTOR CO.
  3. Position a high lift transmission jack under the transmission.
  4. Raise the transmission until the retainer studs are separated from the transmission support crossmember.

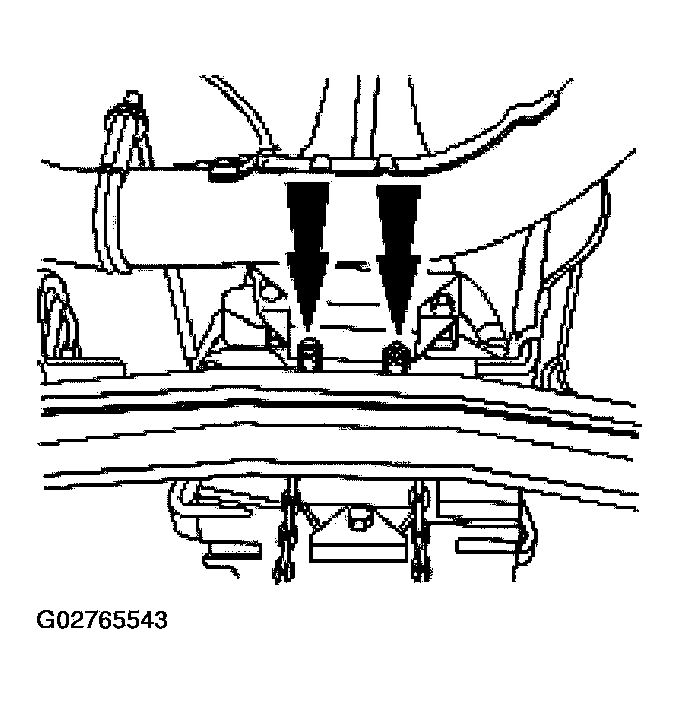

    Fig 2: Separating Retainer Studs
    G02765543Courtesy of FORD MOTOR CO.
  5. Remove the one bolt and the retainer.

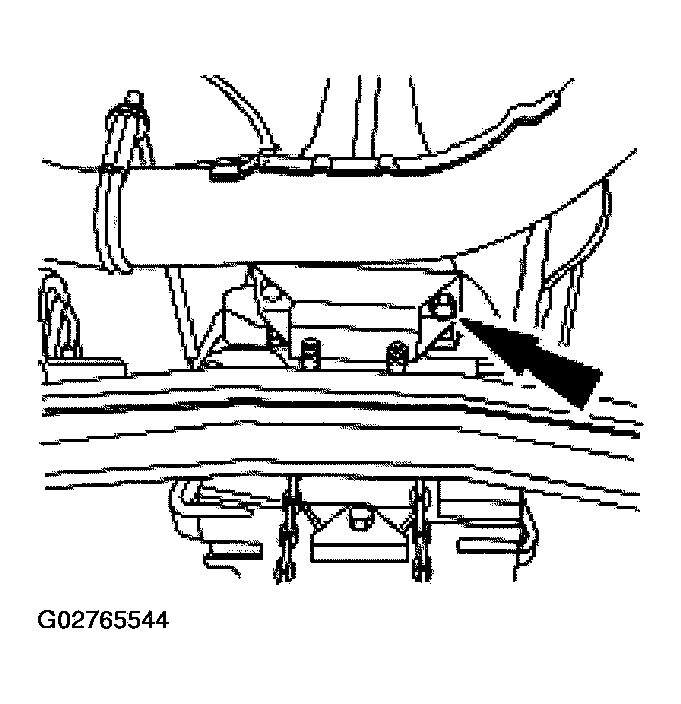

    Fig 3: Removing Bolt And Retainer
    G02765544Courtesy of FORD MOTOR CO.
