Transmission Insulator and Retainer: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retainer and the one bolt hand-tight.

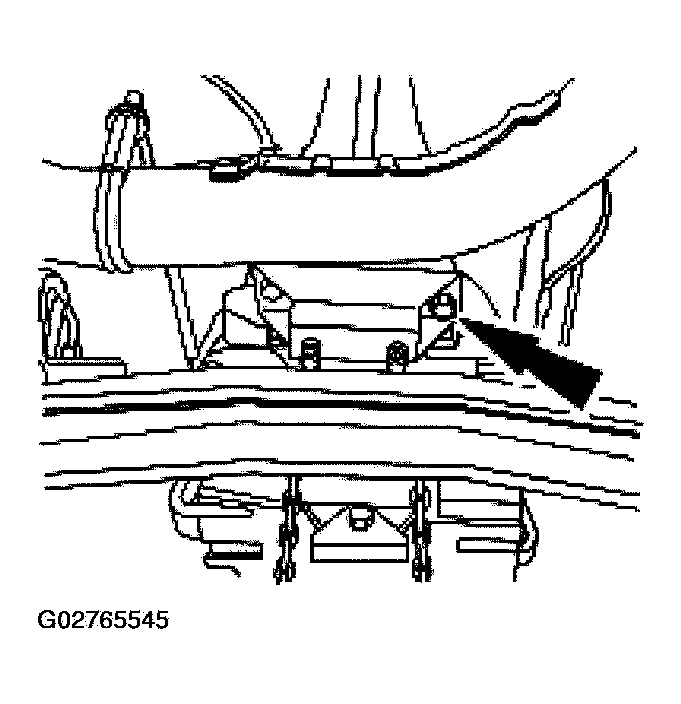

    Fig 1: Installing Retainer And Bolt Hand-Tight
    G02765545Courtesy of FORD MOTOR CO.
  2. Lower the transmission while aligning the retainer studs with the holes in the crossmember. Allow the full weight of the transmission to rest on the crossmember.

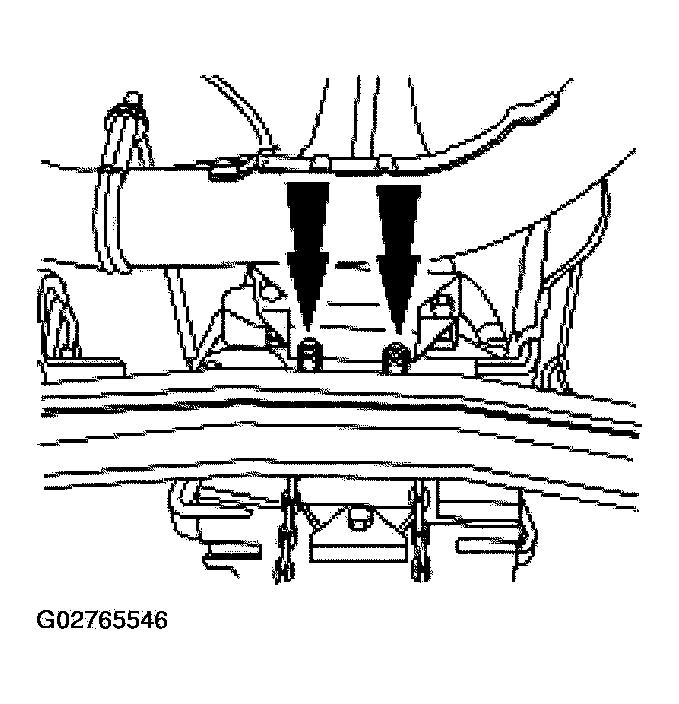

    Fig 2: Aligning Retainer Studs With Holes In Crossmember
    G02765546Courtesy of FORD MOTOR CO.
  3. Remove the high lift transmission jack.
  4. Install the hanger and install the bolt. Tighten the retainer-to-extension housing bolts.
    Fig 3: Tightening Retainer-To-Extension Housing Bolts
    G02765547Courtesy of FORD MOTOR CO.
  5. Install the nuts.

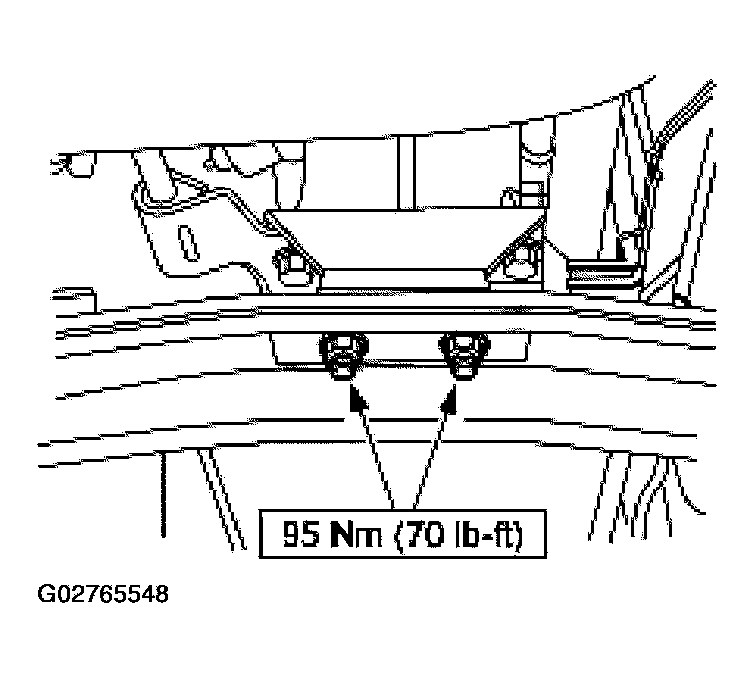

    Fig 4: Installing Nuts
    G02765548Courtesy of FORD MOTOR CO.
  6. Remove the supports and lower the vehicle.
