Reverse Servo Assembly: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
  2. Using the special tool, remove the reverse band servo retaining ring.
    1. Compress the servo spring.
    2. Remove the reverse band servo retaining ring.

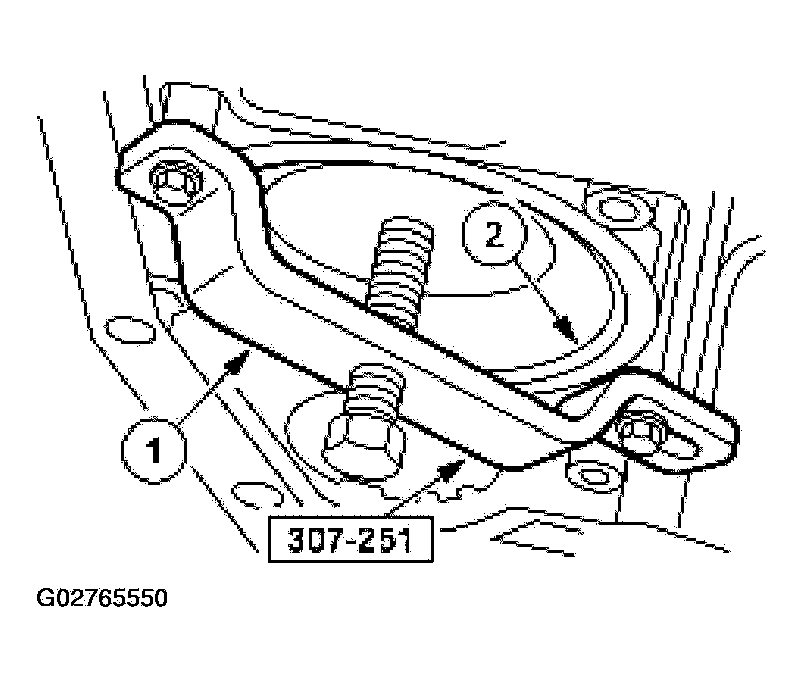

    Fig 1: Removing Reverse Band Servo Retaining Ring
    G02765550Courtesy of FORD MOTOR CO.
  3. Remove the reverse servo assembly.
    1. Remove the reverse band servo cover.
    2. Remove the reverse band servo piston and rod.
    3. Remove the reverse band servo spring.
    Fig 2: Removing Reverse Band Servo Spring
    G02765551Courtesy of FORD MOTOR CO.
