Extension Housing Seal: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

NOTE: The output shaft and driveshaft are a balanced assembly.

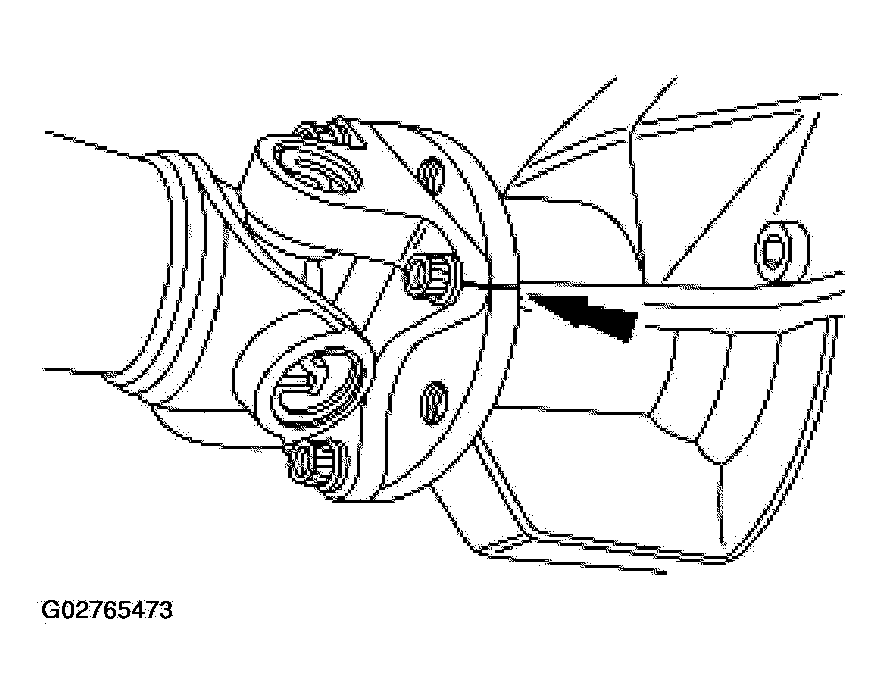

Fig 1: Identifying Mark On Driveshaft Flange And Rear Pinion Flange For Correct Alignment

Courtesy of FORD MOTOR CO.

Mark the driveshaft flange and the rear pinion flange for correct alignment during assembly.
Remove the four bolts.

Fig 2: Removing Four Bolts
Courtesy of FORD MOTOR CO.
Remove the driveshaft.

Fig 3: Removing Driveshaft
Courtesy of FORD MOTOR CO.
Use the special tools, remove the extension housing seal.

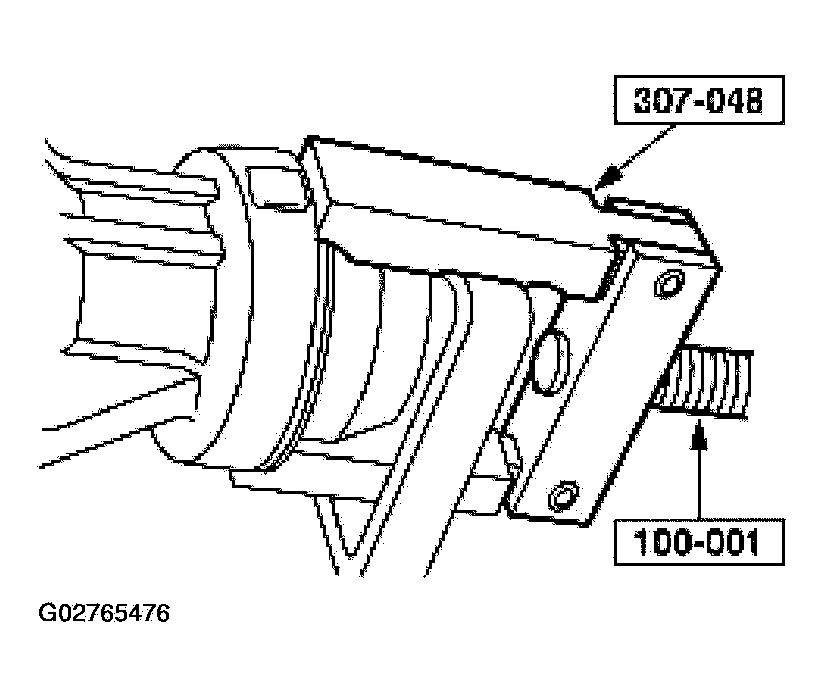

Fig 4: Removing Extension Housing Seal
Courtesy of FORD MOTOR CO.
