Extension Housing Seal: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the extension housing seal is equipped with a drain hole, the hole must be pointing down during installation.

Fig 1: Installing Extension Housing Seal

Courtesy of FORD MOTOR CO.

Using the special tool, install the new extension housing seal.

NOTE: The output shaft and the driveshaft are a balanced assembly.

Fig 2: Aligning Index Marks And Position Driveshaft On Transmission

Courtesy of FORD MOTOR CO.

Install the driveshaft.
- Align the index marks and position the driveshaft on the transmission.
- Position the driveshaft to the rear differential.

NOTE: To maintain driveshaft balance, install the driveshaft yoke and flange in the original position that was marked during removal.

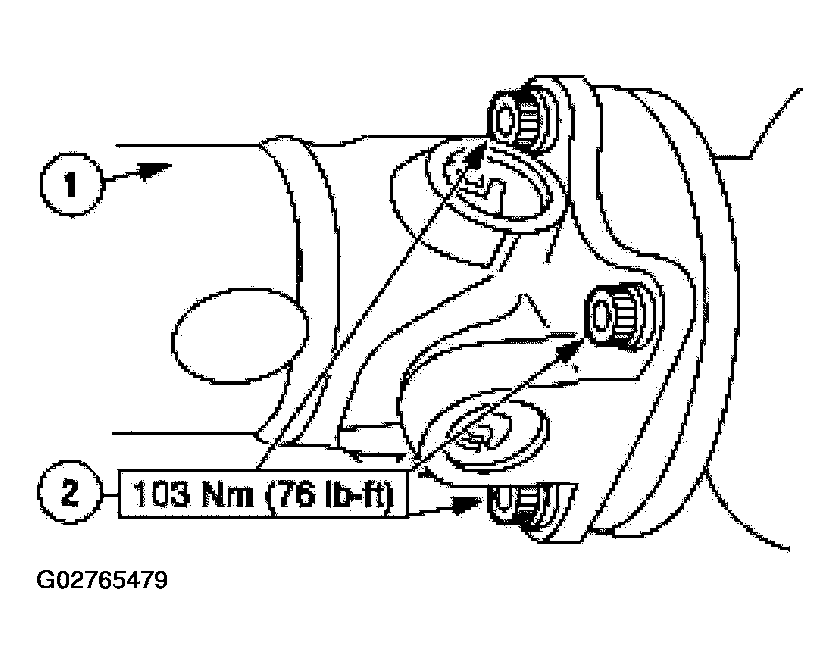

Fig 3: Installing Driveshaft

Courtesy of FORD MOTOR CO.

Install the driveshaft.
1. Install the driveshaft.
2. Install the bolts.
